GD200A series VFD Function parameters
-45-
Function
code
Name
Description
Default
value
Modify
frequency is no more than lower limit frequency
(P00.05), it is required to judge P24.05
continuously before entering sleep state.
Setting range: 0–3
P01.20
Wake-up-from-
sleep delay
This function code determines the
wake-up-from-sleep delay. When the running
frequency of the VFD is lower than the lower limit
one, the VFD will pause to stand by.
When the set frequency is above the lower limit
one again and it lasts for the time set by P01.20,
the VFD will run automatically.
Note: The time is the total value when the set
frequency is above the lower limit one.

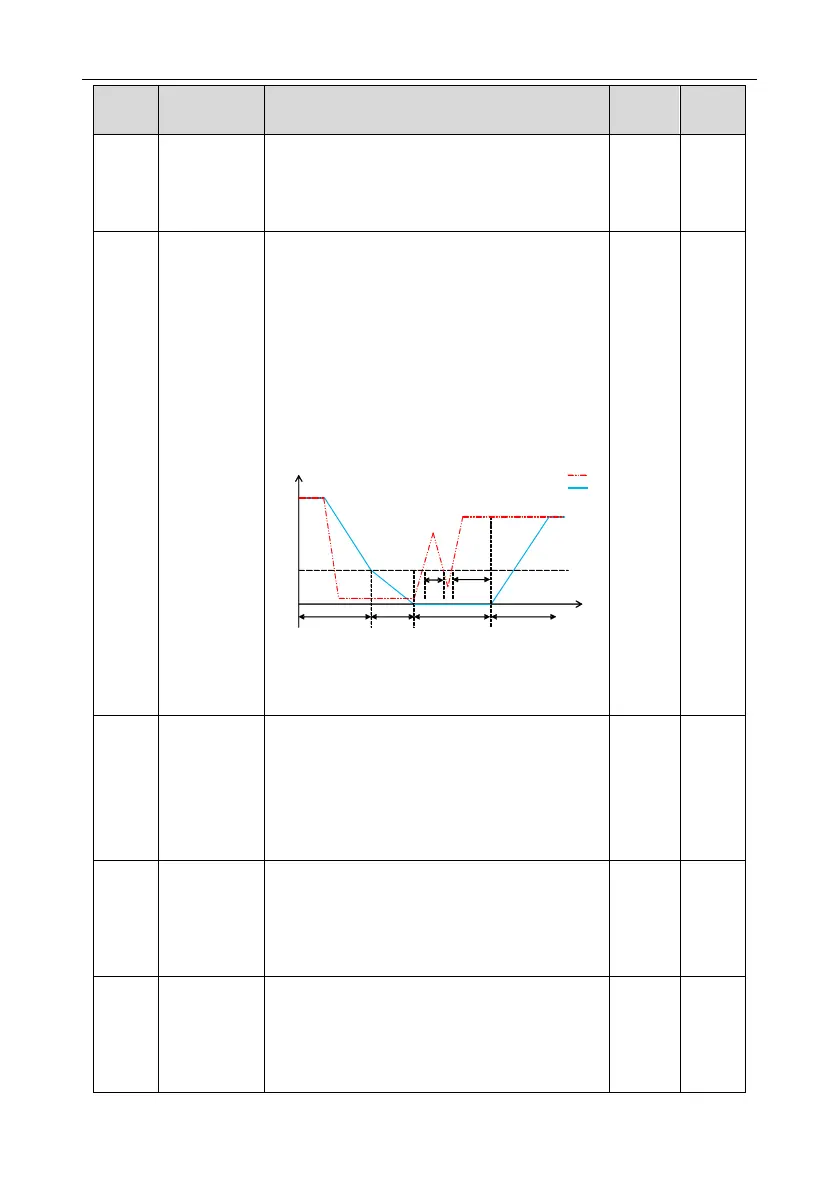

Set frequency curve:
Running freq. curve:
t1<P01.20 , so the VFD does not work
t1+t2=P01.20 , so the VFD works
Running Dormancy
t2
t1
Running
Min. frequency f0
Frequency
Time
Coast
to stop
Setting range: 0.0–3600.0s
(valid when P01.19=2)
0.0s
○
P01.21
Restart after
power off
This function can enable the VFD start or not after
the power off and then power on.
0: Disable
1: Enable, if the starting need is met, the VFD will
run automatically after waiting for the time defined
by P01.22.
0
○
P01.22
The waiting
time of restart
after power off
The function determines the waiting time before
the automatic running of the VFD when powering
off and then powering on.
Setting range: 0.0–3600.0s
(valid when P01.21=1)
1.0s
○
P01.23
Start delay time
The function determines the brake release after
the running command is reference, and the VFD is
in a stand-by state and the delay time set by
P01.23 to wait.
Setting range: 0.0–60.0s
0.0s
○
