iPECS eMG80
Hardware Description and Installation Manual Issue 1.0
6
2.3 System Connection Diagram

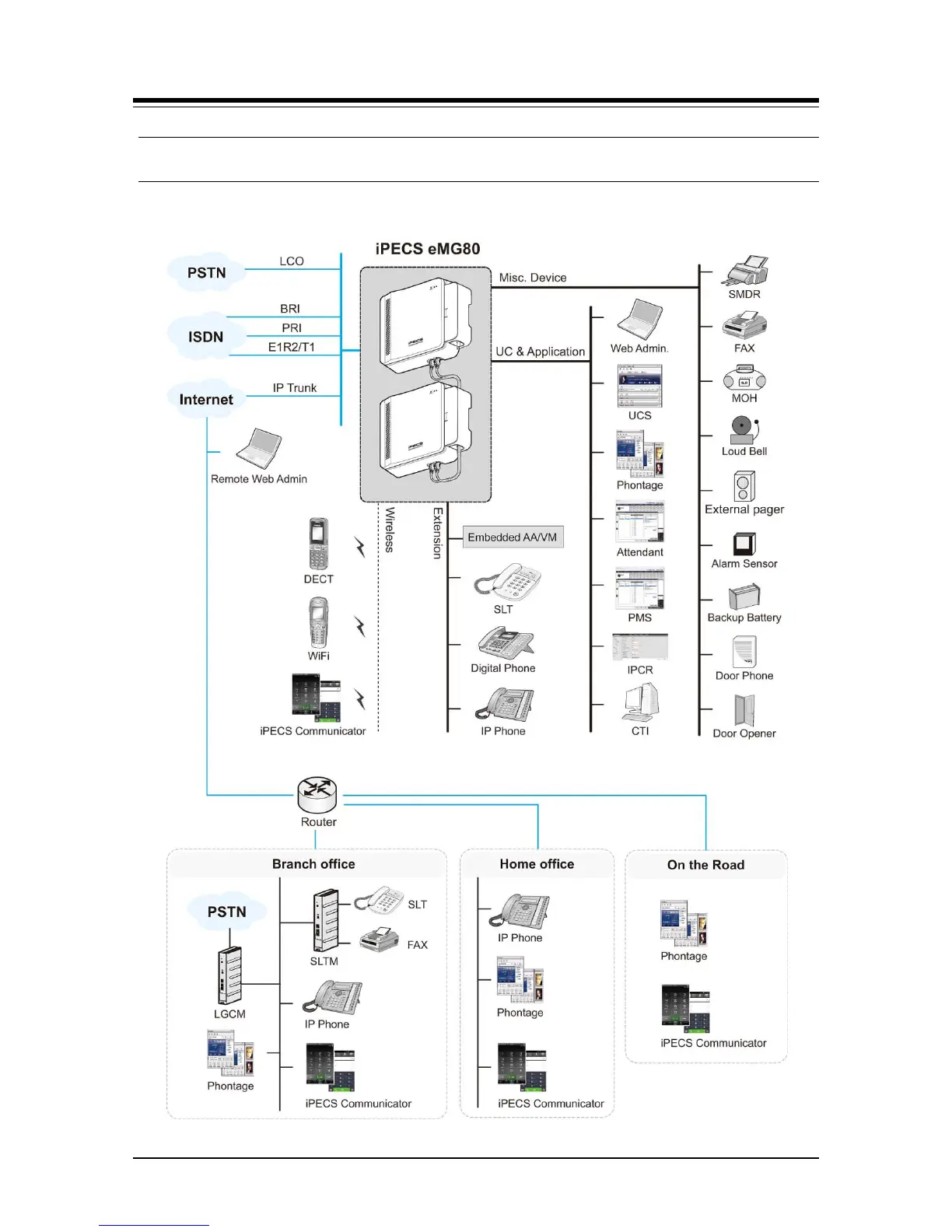

The following figure represents the interconnections available with the iPECS eMG80
including external network, terminals, miscellaneous, and admin interfaces.
Figure 2.2-3 System Connection Diagram
To Next Page
