5.2 Desk Mount
Although not recommended, the KSU can be mounted on a desk, shelf or table-top. In this
case assure the EKSU and KSU are located side by side with a minimum of 5 cm separation.
NOTE
If option board is installed fully on KSU and EKSU, Wall mount is recommended.
It is important that in no case should the KSU and EKSU be stacked one on top of the
other.

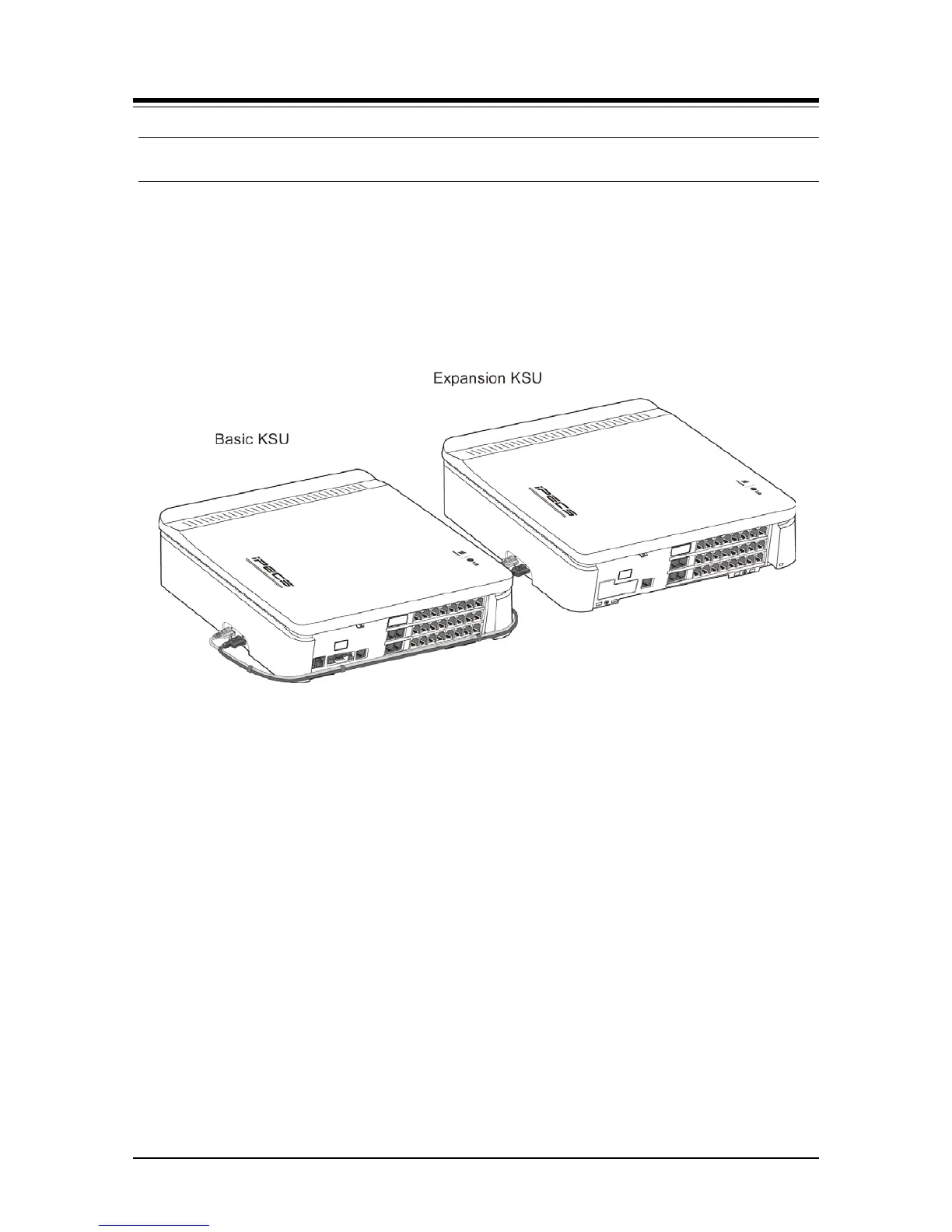

Figure 5.2-1 Desktop Mount
