iPECS eMG80
Hardware Description and Installation Manual Issue 1.0
83
7.3 Terminal Connection
7.3.1 DKTU Wiring
The Digital Key Telephone and digital DSS Console are terminated to a pair of the RJ11
located in the bottom of the unit. The LDP-72xx series phones employ the 2
nd
pair of the
modular jack while all other LDP series phones employ the 1
st
or center pair of the modular
jack. The wall outlet for the DKT or Console should be wired to the appropriate termination
point for the DKT port in the eMG80 system.
1. Using the Modular Jack wiring charts below, wire the 1
st
or 2
nd
pair of the wall outlet,
as appropriate, to the termination point using UTP cable. Note separate wiring is
required for the LDP-7048 DSS Console.
2. Using the line cord provided, connect the DKTU or DSS Console to the wall outlet.

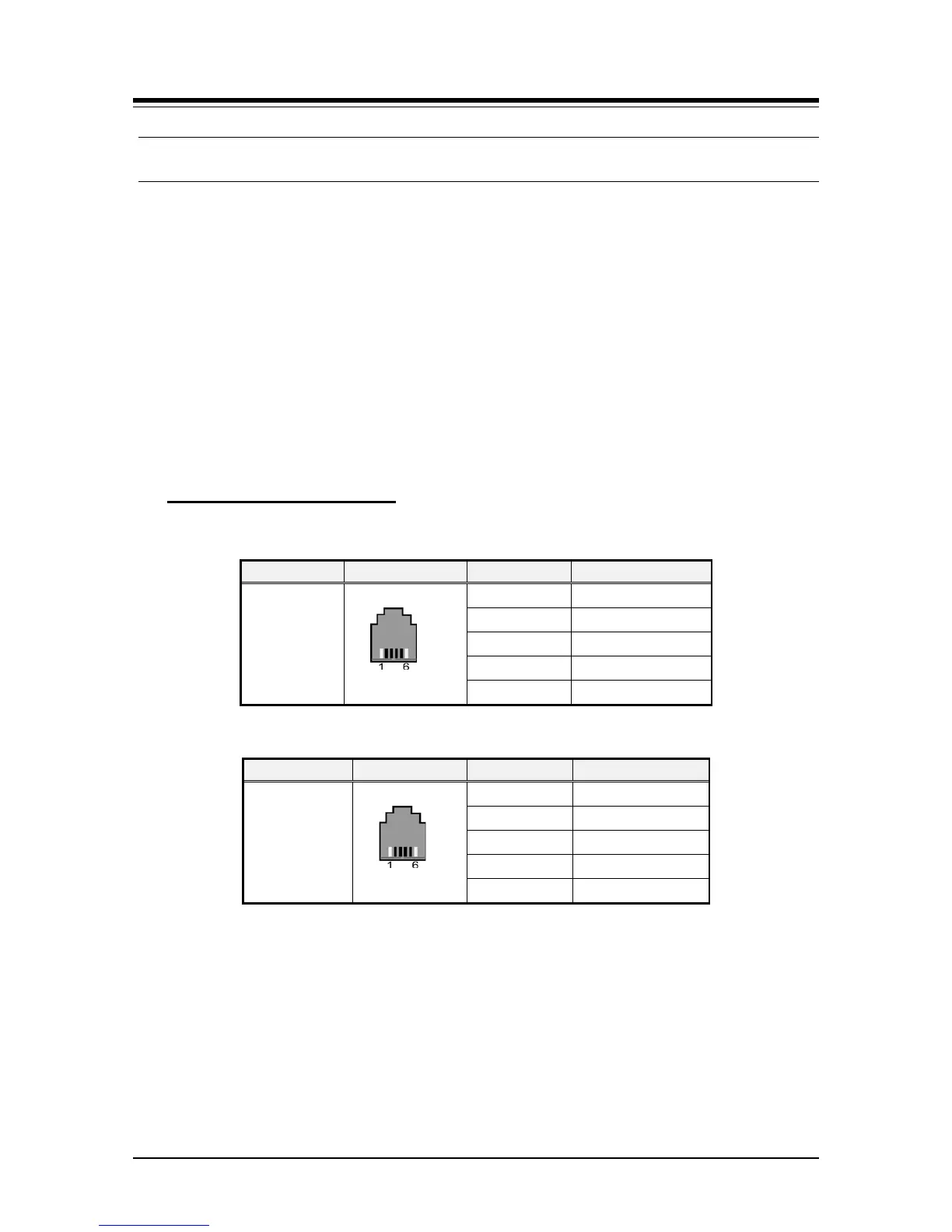

Modular Jack Pin Assignment
Table 7.3.1-1 LDP-7200 series Modular Jack Wiring
Connector
Pin-out
Pin Number
Signal Name
RJ11
1 N/A
2 RING
3,4 Reserved
5 TIP
6 N/A
Table 7.3.1-2 LDP-7000 and 9000 series Modular Jack Wiring
Connector
Pin-out
Pin Number
Signal Name
RJ11
1 N/A
2 Reserved
3,4 RING, TIP
5 Reserved
6 N/A
