4.3 Removing and Replacing the KSU & Cord cover
Prior to installing option boards in the KSU or EKSU, it is necessary to remove the KSU and
Cord covers. To remove the cord & KSU cover and expose the MBU:
1. Remove the screw as shown in #1 in the below figure and press down slightly on the
top of the Cord cover to be away from the KSU.
2. Remove the two screws holding the KSU cover as shown in #3 in the below figure.
3. Lift the front of the KSU cover in the direction of the arrow.
4. Remove the cover. Be sure to place both covers in a safe location.

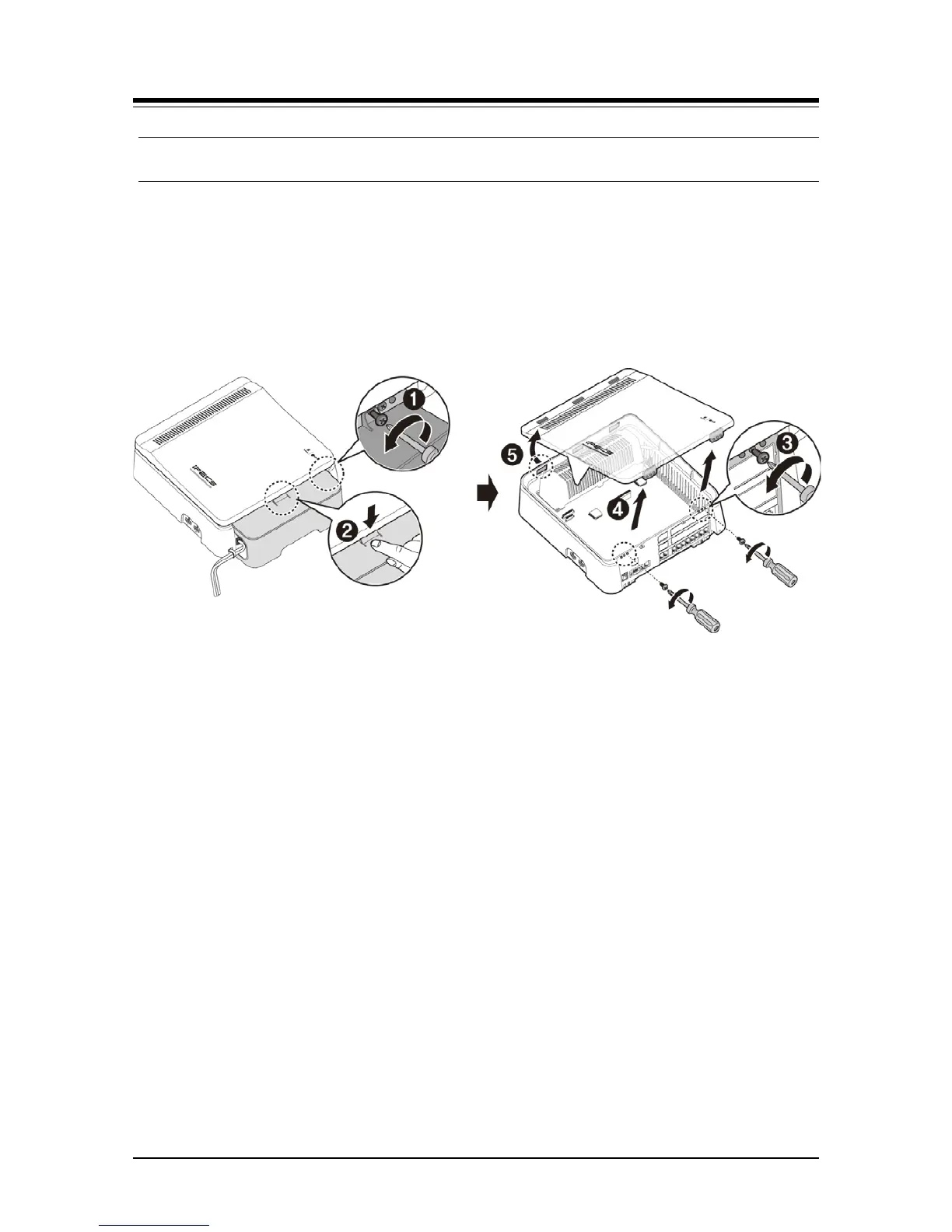

Figure 4.3 Opening the Front Cover
NOTE
For safety, prior to operation, replace the KSU and Cord cover before operating the eMG80.
Regarding attaching the cord cover, refer to the section 6.9.3.
To replace the front cover, basically reverse the removal procedure as below.
1. Insert the tabs in the KSU cover into the KSU slots.
2. Press the KSU cover down on to the KSU.
3. Insert screws in the middle of tapped hole and then tighten screws with screwdriver
to fix the front cover.
4. Install the Cord cover
5. Insert and tighten the cover hold-down screw.
