5.3 Wall Mount
Wall Mounting is the common installation method as shown in figure 5.3-1. It is recommended
that a backboard such as a ¾ inch sheet of plywood be installed and securely fixed to the wall
for mounting of the KSUs, terminal blocks and other miscellaneous equipment.
1. Install 3 anchor plugs in the wall using the mounting template included for accurate
placement.
2. Insert the 3 screws into the anchor plug and tighten leaving about 1/8 inch of the
screw shaft exposed.
3. Hook the KSU onto the screws, making sure that the System slides down securely.
4. Repeat Step 1 through 3 for the EKSU. Before installing the mounting template for
EKSU, assure the Expansion cable is a sufficient length to connect the KSU and
EKSU. Also assure the KSU and EKSU are separated by at least 5 cm.

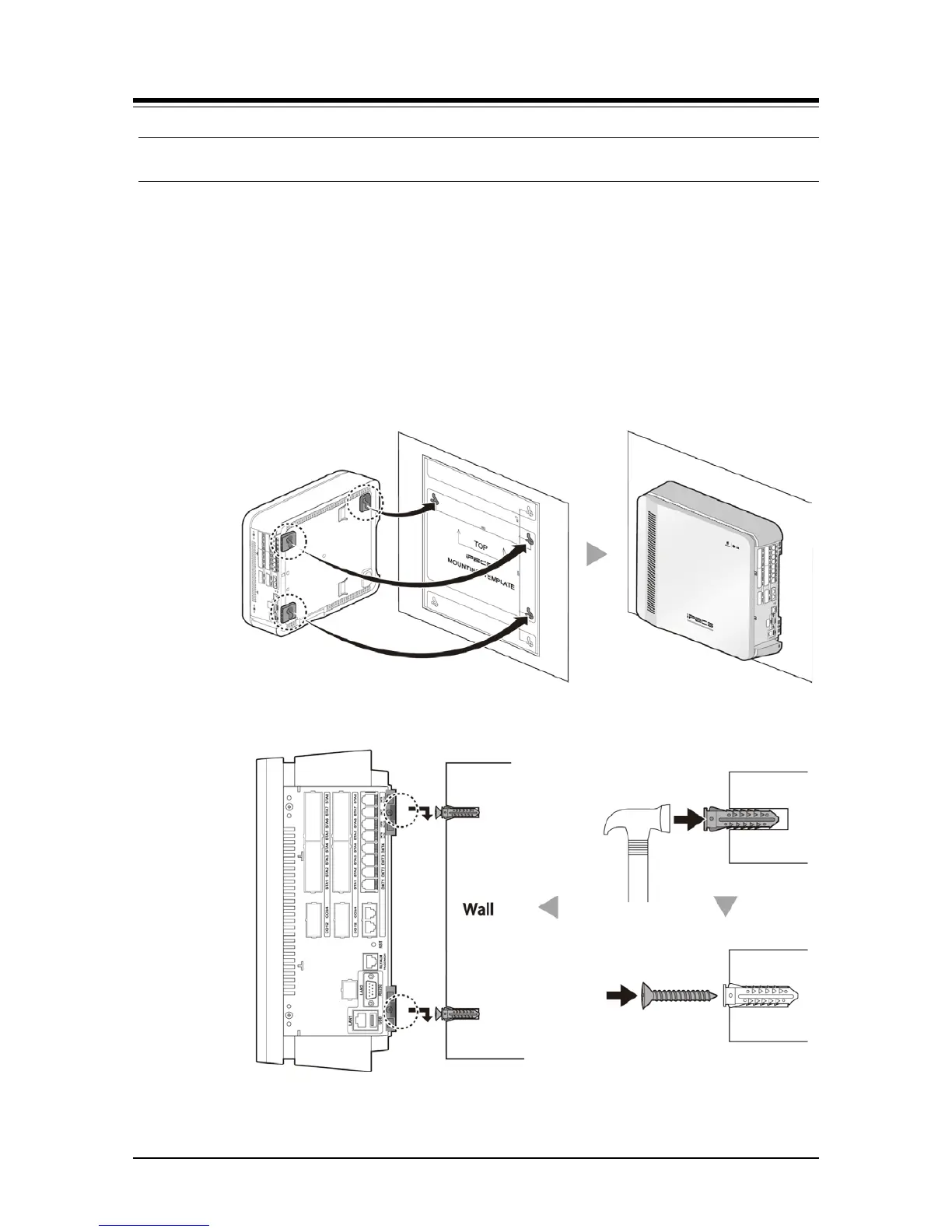

Figure 5.3-1 Installing Mounting Template and Wall mount
