4.7.10 WTIB4 Wireless DECT Interface Board
The WTIB4, shown in
Description
Figure 4.7.10-1, has four (4) interfaces to GDC 600BE multi-channel
DECT Base Stations. Only one WTIB4 may be installed in the KSU of an eMG80 system.
As access to the WTIB4 board may be required during installation of the Base Stations, we
recommend installing the WTIB4 as the second Interface board on the KSU CN1 connector.
The board is provided with two Standoffs that must be installed prior to mounting the board.
To install the board in the KSU, refer to Section 4.4.

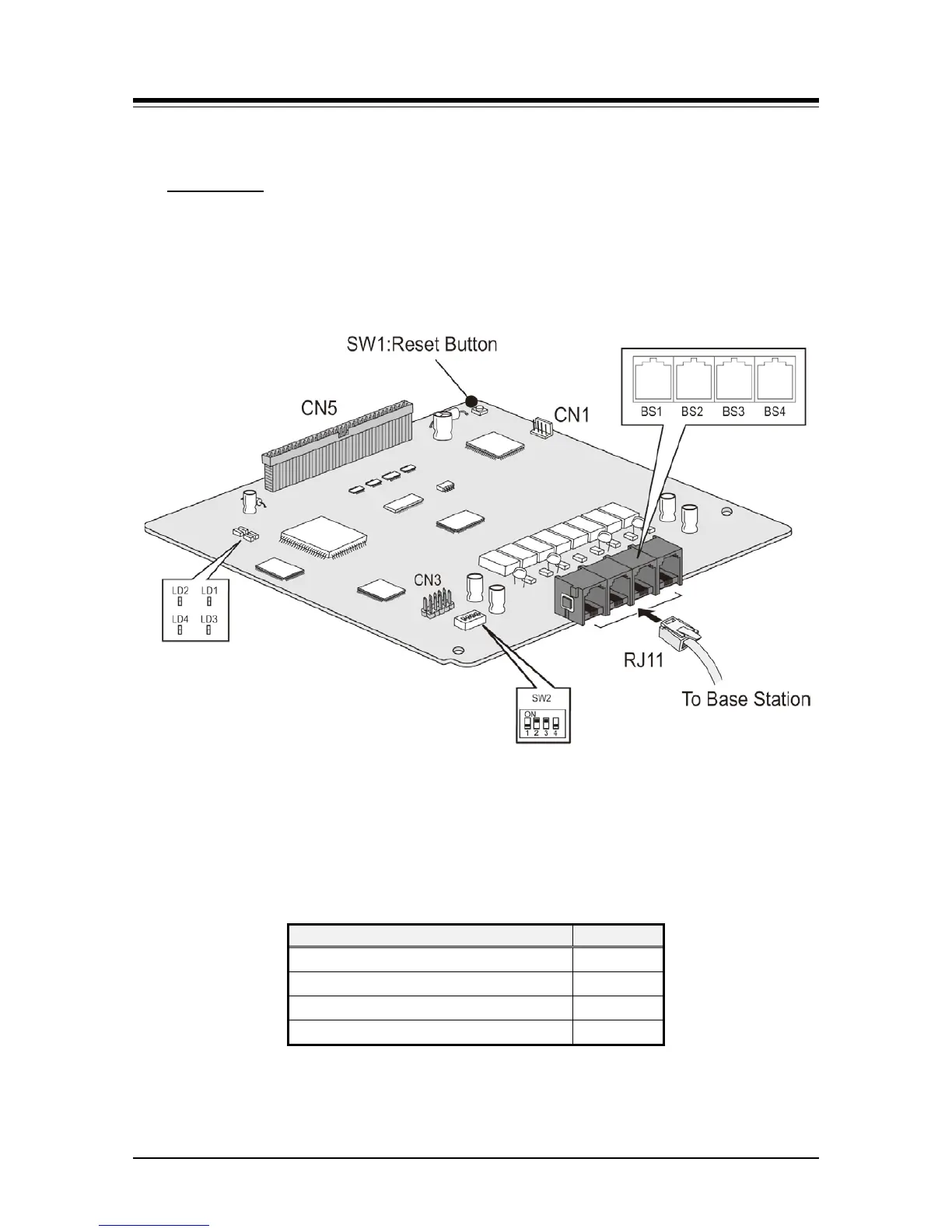

Figure 4.7.10-1 WTIB4
With the WTIB4, a DECT network of four (4) cells (Base Stations) each handling 6
simultaneous calls from up to 48 subscribed stations can be configured. These capacities
are depicted in the chart below.
Table 4.7.10-1 WTIB4 Capacity
Item
Capacity
Cells (Base Stations)
4
Voice channels/Cell
6
Registered terminals
48
Simultaneous Wireless calls
24
