6.9.2 Rack Mount Wiring
To dress the wiring for a Rack mount installation,
1. Ensure all boards are installed and that wiring is completed.
2. Attach the Cord cover to the system.
3. Using the supplied cable ties, tie all wiring to the slot at the bottom-right side of the
KSUs as shown in Figure 6.9.2-1.
4. Using additional cable ties, not provided, tie the bundled cables including Power
cord and the Expansion cable using holes in the 19” Rack.
5. Arrange the cable down the rack back to the wiring termination point.

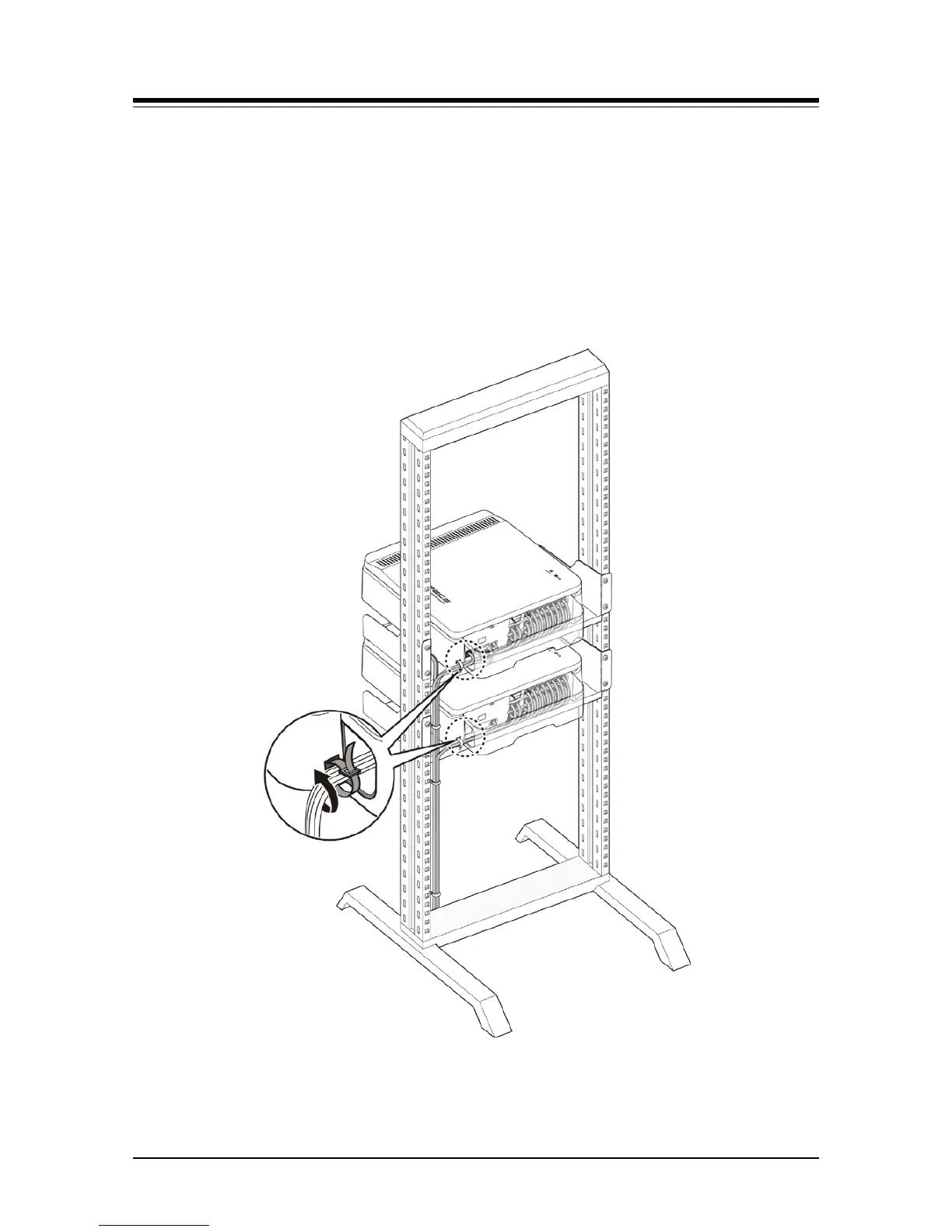

Figure 6.9.2-1 Rack Mount Wiring
