6.9 Cable Wiring
To provide a neat professional installation, the wiring to the KSU(s) should be “dressed”. The
wiring cables should be bundled and tie wrapped to the KSU(s) and to the wall or rack.
6.9.1 Dressing the Wall Mount Wiring
To dress wiring for a Wall mount installation,
1. Ensure that all boards are installed and wiring is completed.
2. Attach the Cord cover to the system.
3. Using the supplied cable ties, tie all wiring to the slot at the bottom-right side of the
KSUs as shown in Figure 6.9.1-1.

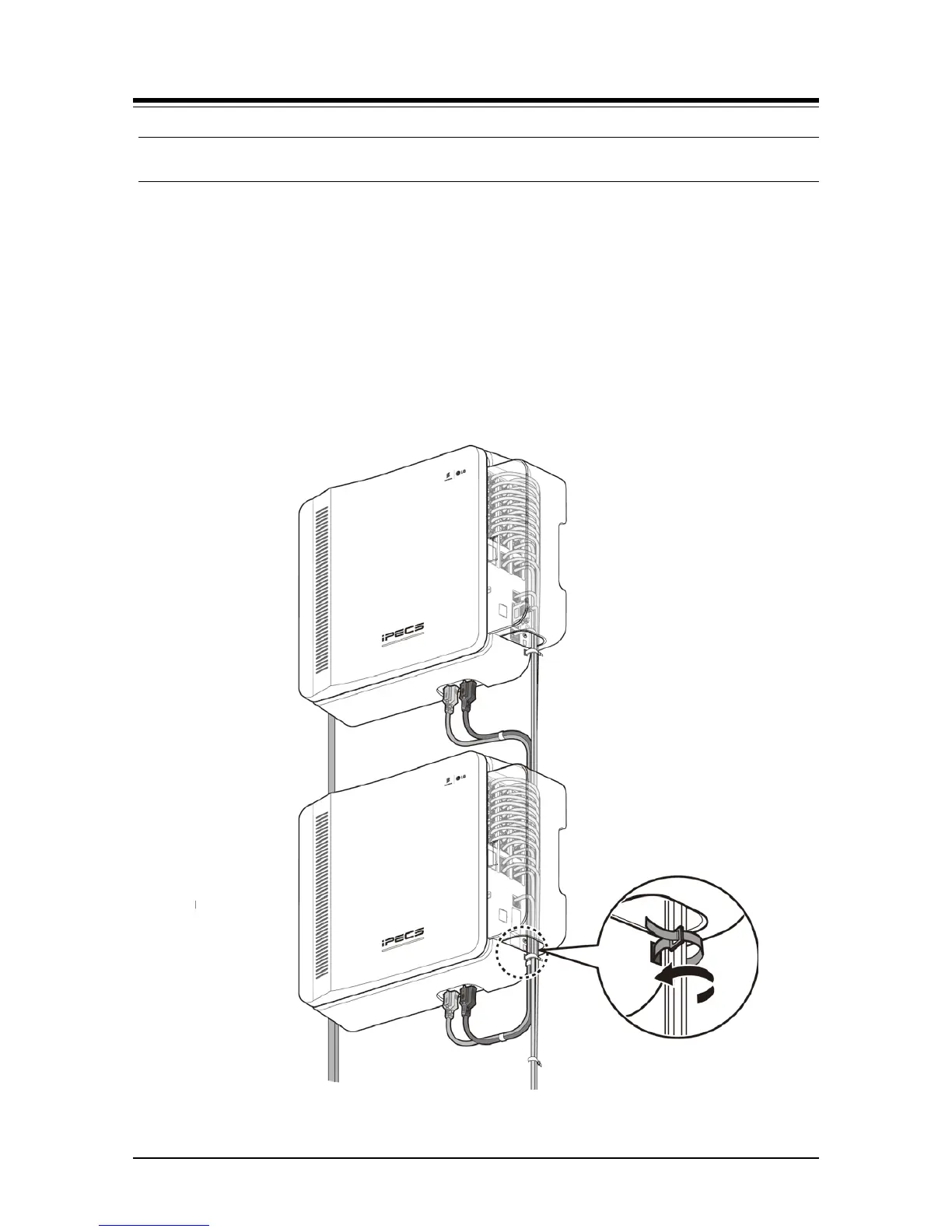

Figure 6.9.1-1 Dressing the Wall Mount Wiring
KSU
EKSU
