Iridium EDGE - Connector Part Numbers; Connector Pin-Outs

29

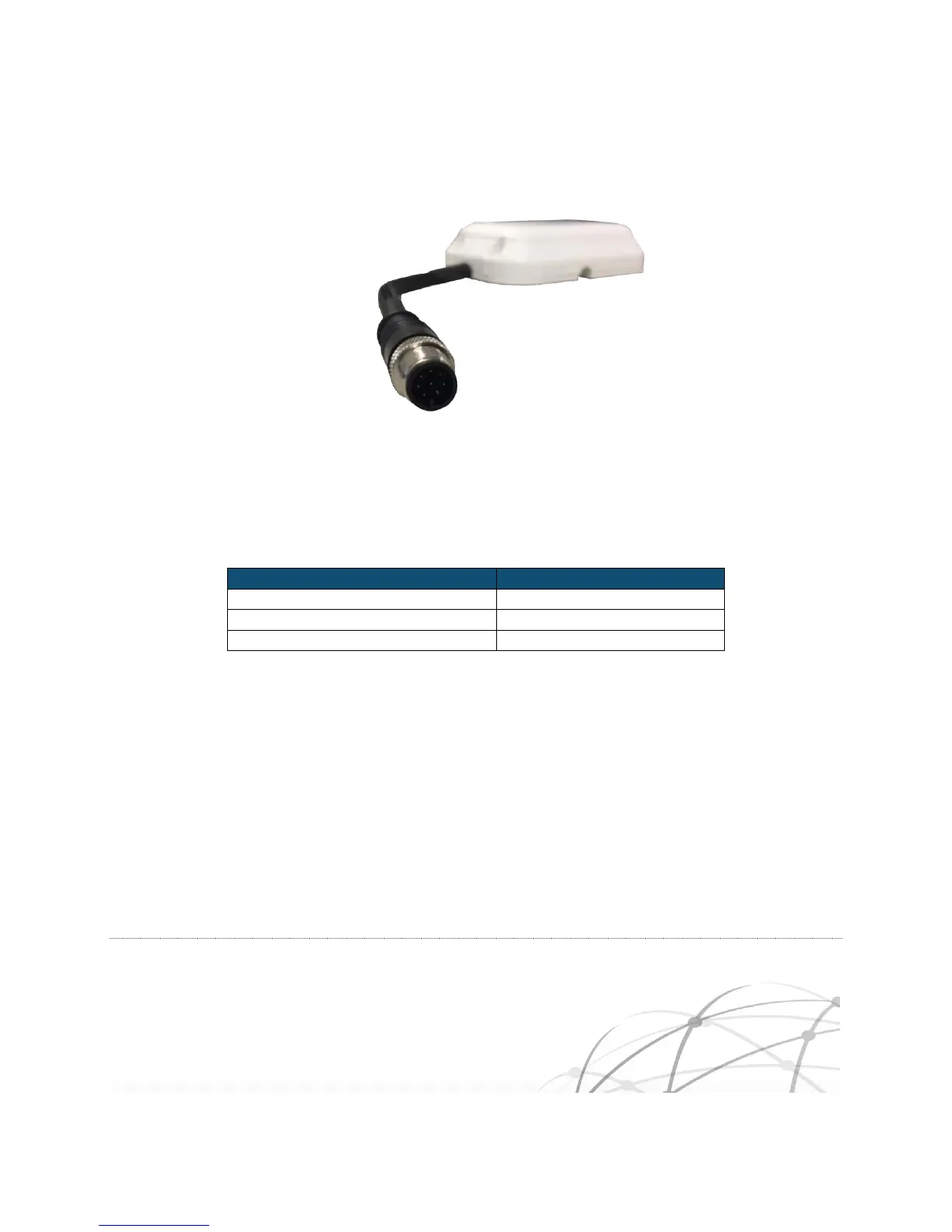

Figure 2-6 Connector
2.8.1 Connector Part Numbers
The Iridium Edge uses an eight (8) pin male M12 connector. Connector and recommended mating
connector part numbers are provided in the table below.
Table 2-3 Connector Specifications
Parameter
Value
Connector Type
M12 – 8 Pin Male
Mating Connector Type
M12 -8 Pin Female with IP67 rating
Recommended Mating Connector
Digikey part# A122384-ND
2.8.2 Connector Pin-outs
Connector pin positions and the corresponding pin-out descriptions are given in the figure and table
below.
