2.9.4 Enclosure Specifications
The table below outlines the specifications for the enclosure
Table 2-7 Enclosure Specifications
Parameter
Value
Material
Lexan EXL 9330
Weathering Rating
Y1
Grey Plug material
Formosacon FM090
2.10 Pigtail Cable
As shown in the figure below, the Iridium Edge has a pigtail cable that terminates with the Iridium Edge’s
connector.

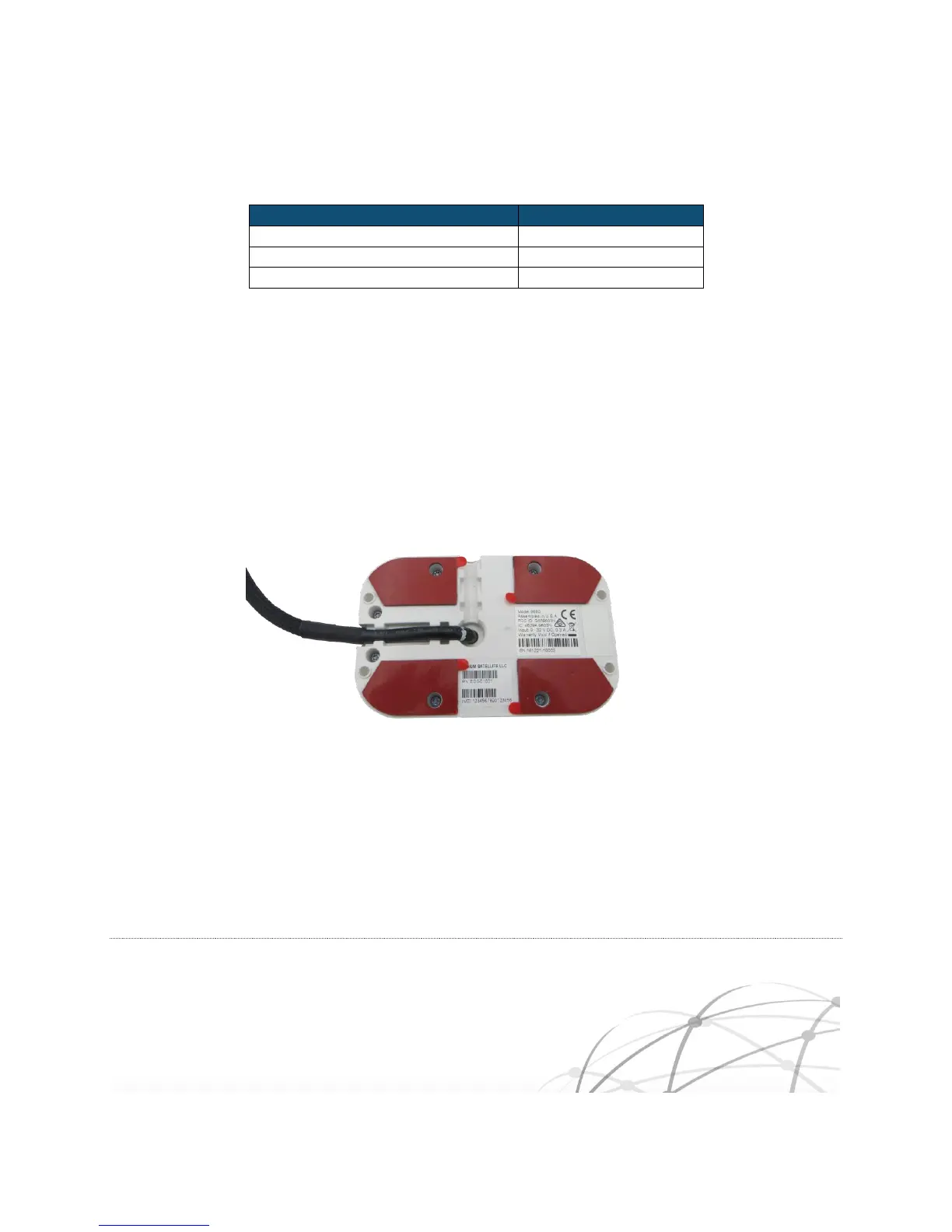

Figure 2-12 Pigtail Cable
The pigtail cable allows the Iridium Edge to be mounted in two configurations from the Iridium Edge
 Cable coming out the side from underneath (from either the short or long side)
 Cable coming out the bottom
Each of the two side channel exits pinches the cable to provide strain relief.
2.10.1 Pigtail Drawings
The following figure provides the mechanical dimensions for the Iridium Edge’s pigtail cable
