Iridium EDGE - Enclosure Information

30

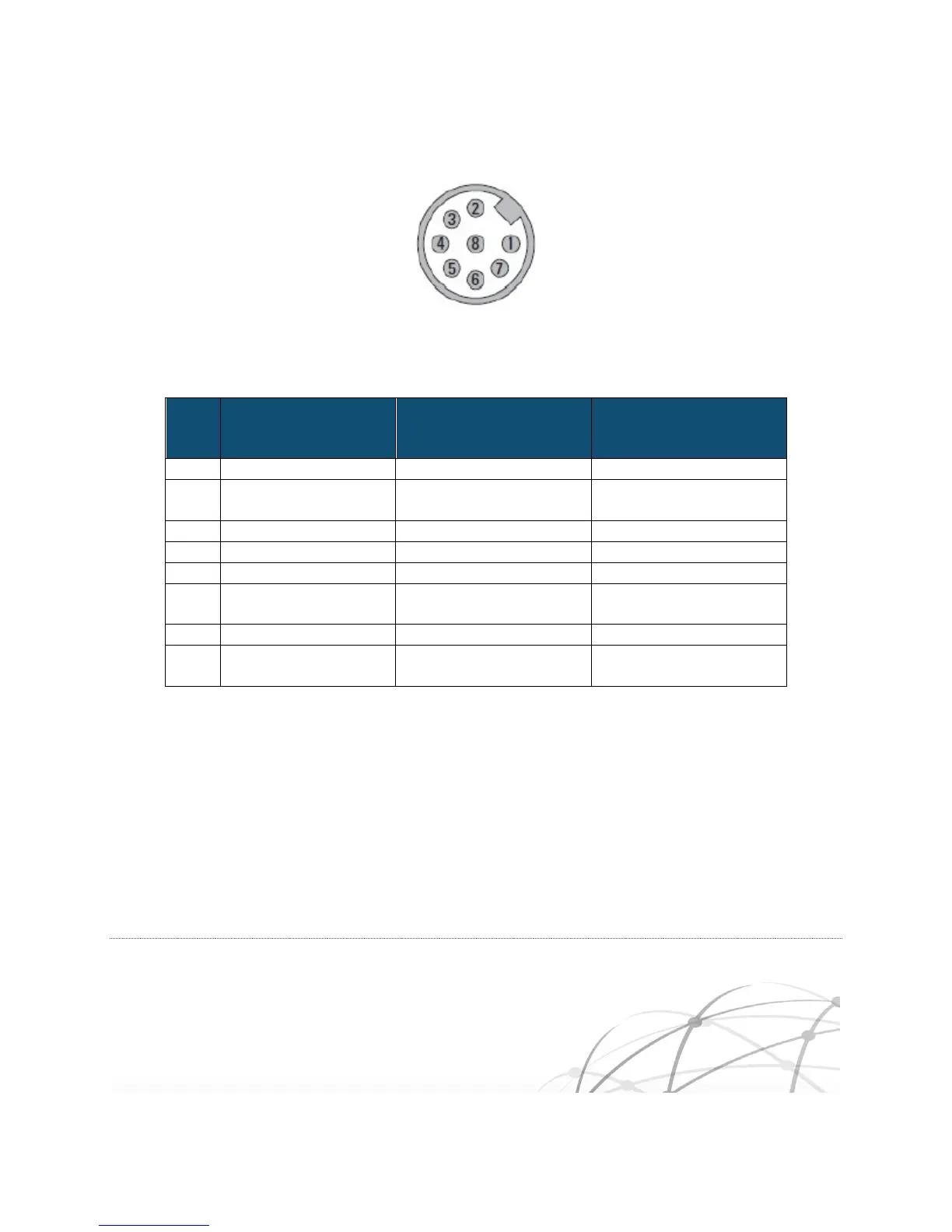

Figure 2-7 Connector Pin Positions
Table 2-4 Iridium Edge Pin-outs
Pin
No.
Signal Name
Signal direction
( with respect to Iridium
Edge )
Description
1
Spare
Unused
2
Ground
Input
for both signal ground
reference and power return
3
RS232_RX
Input
RS232 Input
4
RS232_TX
Output
RS232 output
5
Power
Input
9 -32V
6
On/Off
Input
Optional control line to
power down Edge
7
Network Available
Output
Data port, serial data output
8
Power Detect
Output
Active High when Edge
powered
2.9 Enclosure
Dimensioned drawings for the side and top view of the Iridium Edge are shown below:
