IRMA MATRIX Door Clear option | Mounting and operating instructions
released
Rev. 1.3
2018-08
2.5.1 PC connection via Ethernet

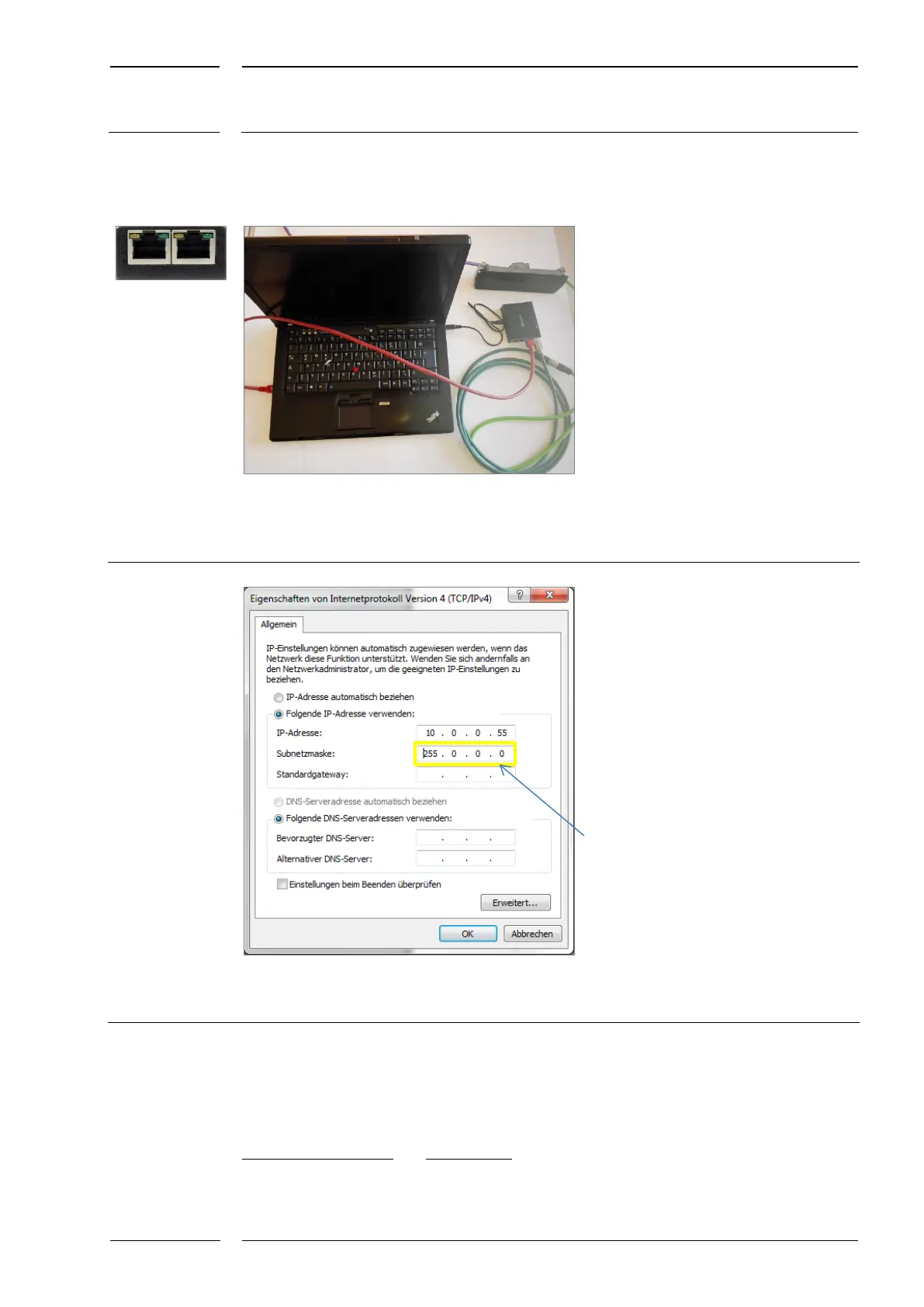

Fig. 6: Ethernet connection via ETH switch and via the
RJ45 connector on the PC
Fig. 7: Enter IP address
2.5.2 PC connection via CAN
The PC connection via CAN only affects the sections 2.3 and 2.4 for the signal chains via
CAN direct integration and gateway IBIS.
Connect the sensor to the RJ45
connector of the PC using the
appropriate adapter cable.
To do this, the sensor Ethernet
interface must be connected to the PC
via an ETH switch and a KQ-M12CAT5-
RJ45-01-2m (xm) adapter cable.
The sensor is supplied with operating
voltage via a power supply unit, for
example.
Customizing the network adapter
for Ethernet
On your PC, adjust the network
adapter under “Control panel” >
“Network and Sharing Center” >
“Change adapter options” > “LAN
connection” > “Properties” > “IP
version*”.
For the IP address used, enter in
“Subnet mask”: 255.0.0.0
