IRMA MATRIX Door Clear option | Mounting and operating instructions
released
Rev. 1.3
2018-08
2.4 Connection via gateway IBIS and door control analyzer
For a 2-door bus (middle door: approx. 1.25m x 2.10m) with two IRMA MATRIX sensors, for
example, mount via gateway IBIS as follows:
follow the instructions in the document
KDIA_IRMA-MATRIX_R2_Installationsanleitung-CAN_1.5, available at
https://www.irisgmbh.de/technische-dokumente/irma-matrix/. Fig. 4
shows the simplified
Door Clear signal chain for sensor installation via CAN.

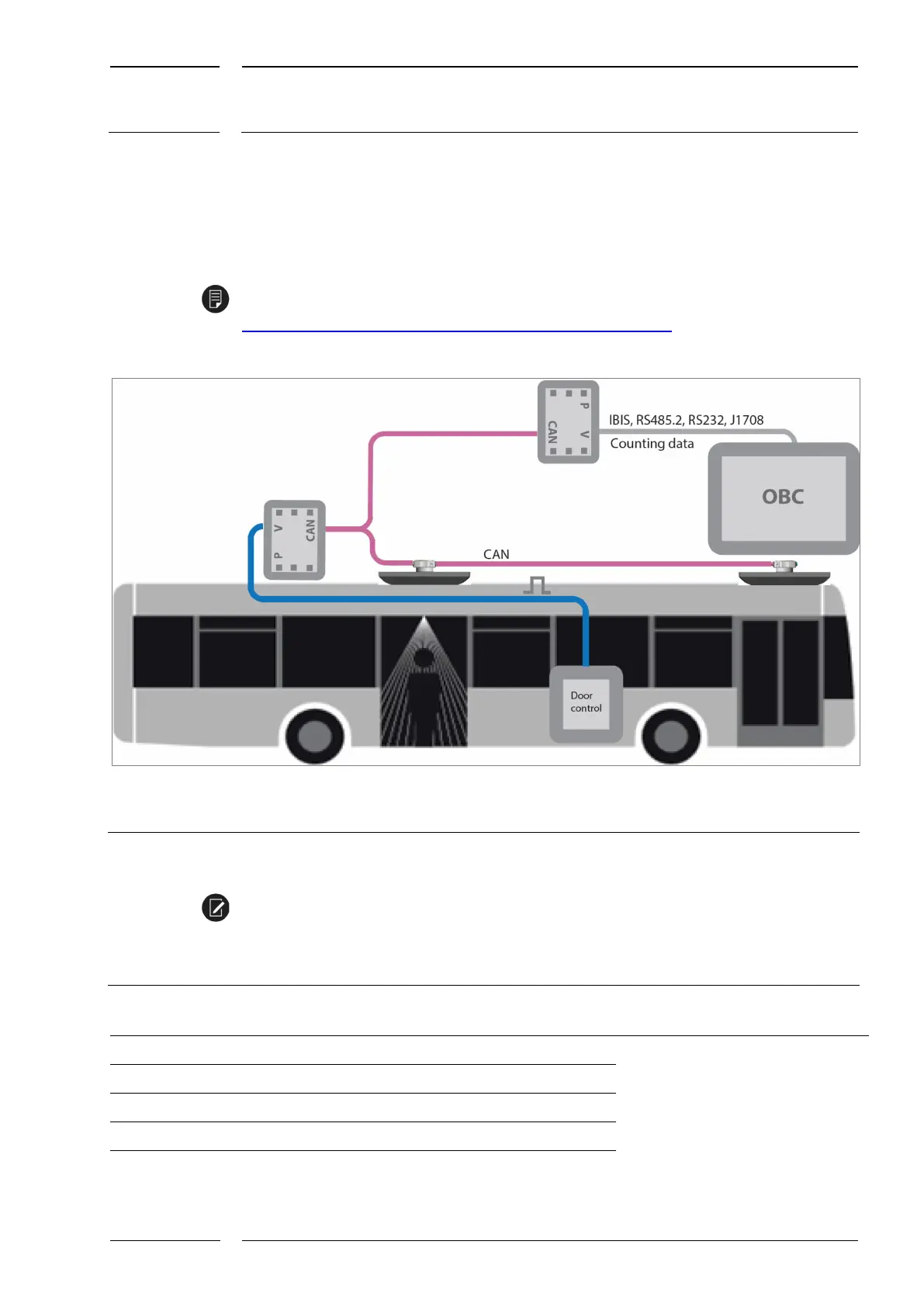

Fig. 4: Signal chain for Door Clear in gateway IBIS wiring with door control analyzer
Note Tab. 1 for the pin assignment of the door control analyzer.
Tab. 1: Pin assignment for door control analyzer
Switch outputs
3 SWa Out ‘a’ contact
Door Clear door 1
electrically isolated, suitable for
DC and AC,
only for protective extra-low
4 SWb Out ‘b’ contact
5 SWa Out ‘a’ contact
Door Clear door 2
6 SWb Out ‘b’ contact
7 SWa Out ‘a’ contact
Door Clear door 3
