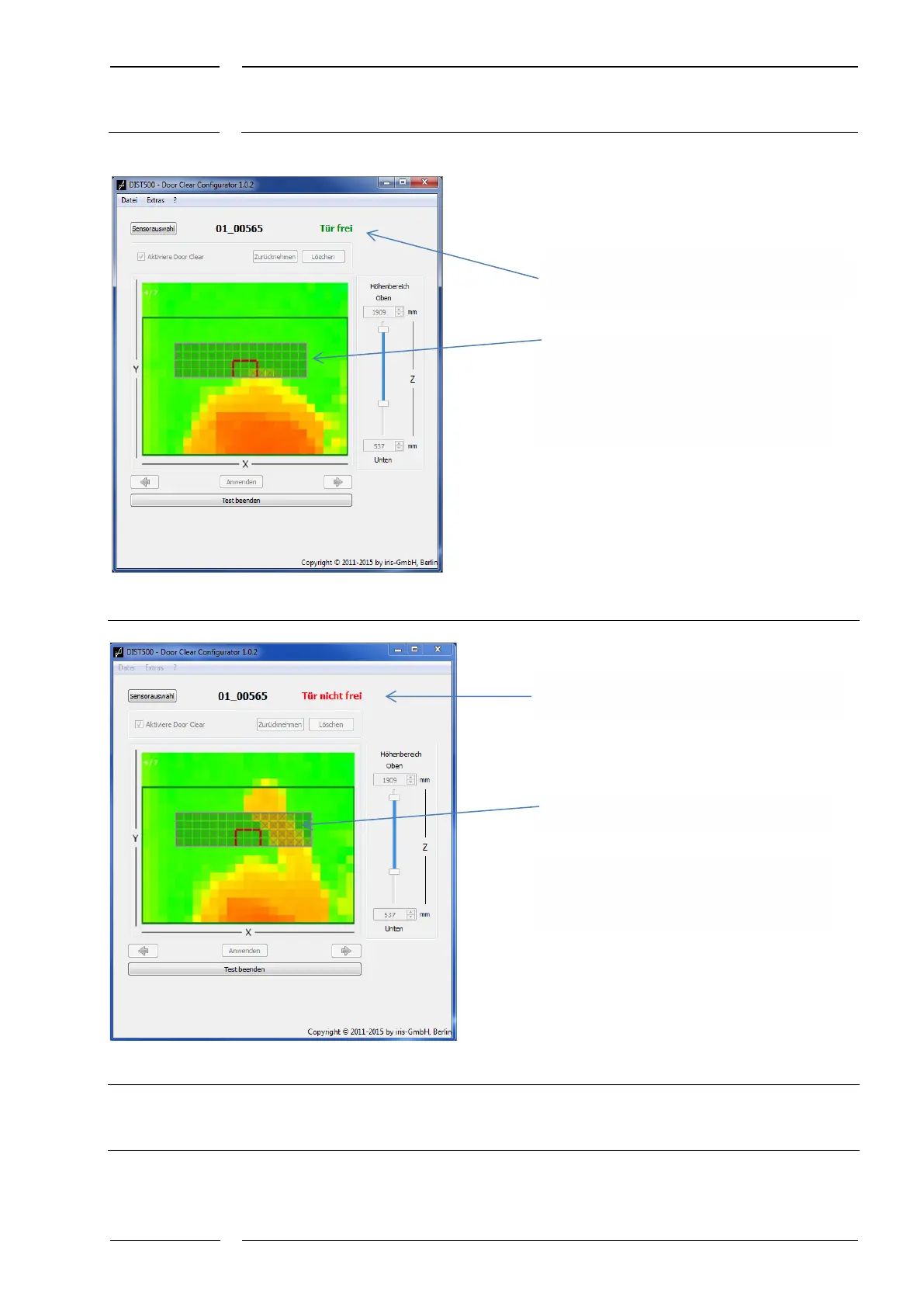

Fig. 17: Test run active, the sensor sets the “Door clear” status.
Fig. 18: Test run active, the sensor sets the “Door not clear” status.
The Door Clear function is active.
The “Tür frei (= door clear)” sensor status is
se
t.
The Door Clear zone is clear in the
respective x-, y- and z-zones.
The Door Clear function is active.
The “Tür nicht frei (= door not
clear)” sensor status is set.
There is an arm in the Door Clear zone.
Press TEST BEENDEN (= exit test) to stop
the test.
Start test run
