IRMA MATRIX Door Clear option | Mounting and operating instructions
released
2 IRMA MATRIX sensor (built-in version)
hidden under (1)
3 M12 system Ethernet cable
K-M12CAT5-XX-xm
4 Sealing cap
5 M12 switch: Switch-M12-5Port-eCon
6 Power cables for switch; K-Switch-
Power (=K2); or SAC-4P-5,0-28R/FS SCO RAIL
(=K3)
8 KQ-M12CAT5-RJ45-01-xm adapter cable for
PC connection for support services
9 Still to be defined
A Distribution of the vehicle-side power supply
to each door for connecting sensors and switches.
The distribution of the on-board power supply to
each door is not part of the standard scope of
supply of iris-GmbH!
B On-Board Computer/Unit PC connection for
D1, D2 Function area 1 and 2
M12 female
connector, ETH type
M12 male
connector, ETH type
M12 female
connector, ETH type, 4-pole, A-
coded (K-Switch-Power)

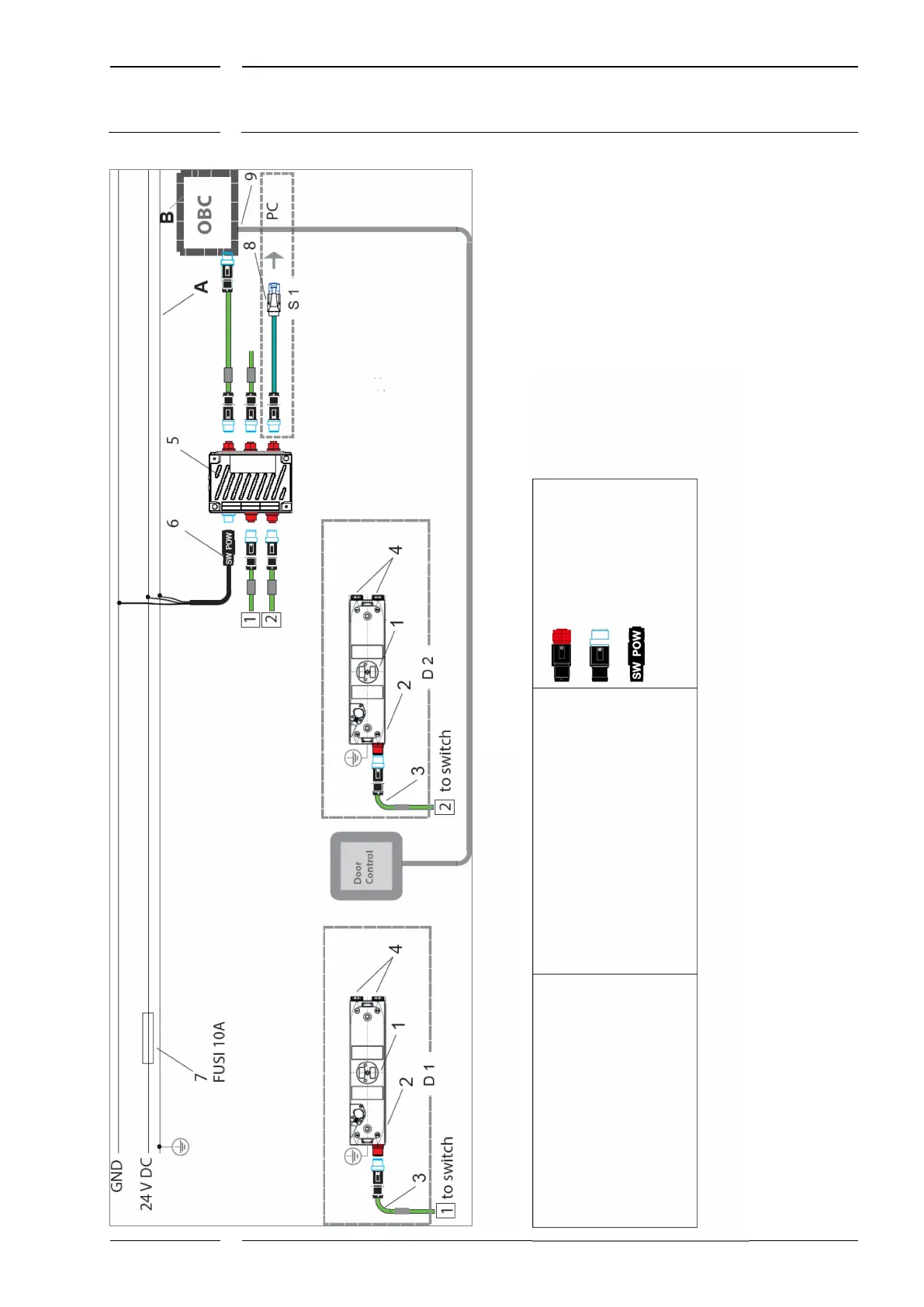

Fig. 5: Wiring diagram for Ethernet using sCON -F-12-PoE
