External Power

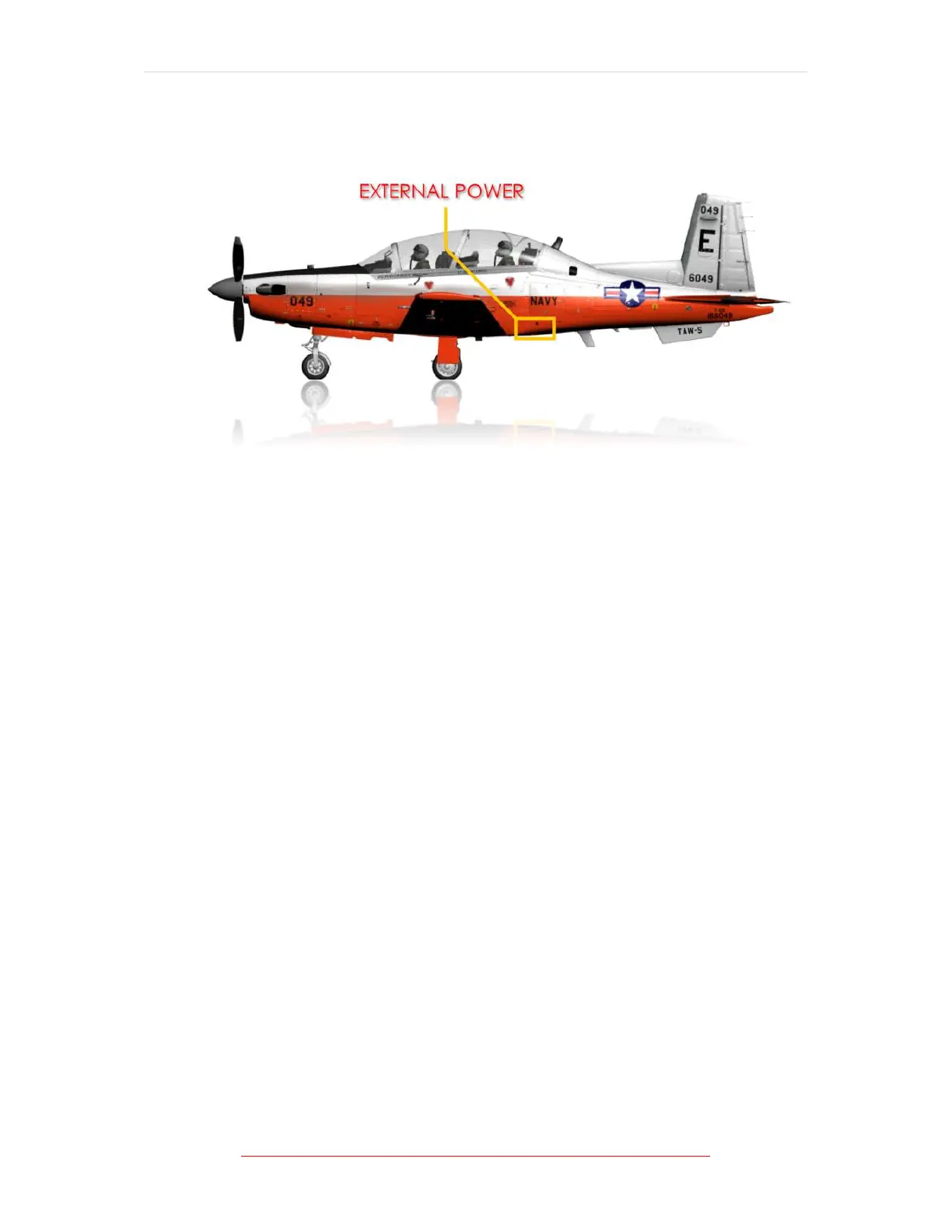

An external power receptacle is installed in the left, aft fuselage, below the left
avionics bay door.
External power is distributed on the battery bus and is controlled by the battery
switch. The aircraft is internally protected from external power over/under voltage.
A voltage sensor is located between the external power connector and the external
power relay. If the external voltage level exceeds a nominal level, the external
power will be disconnected from the aircraft electrical system.
External Power can be connected via the MFD CONFIG Page on initial power from
the BAT BUS.
