Auxiliary Battery

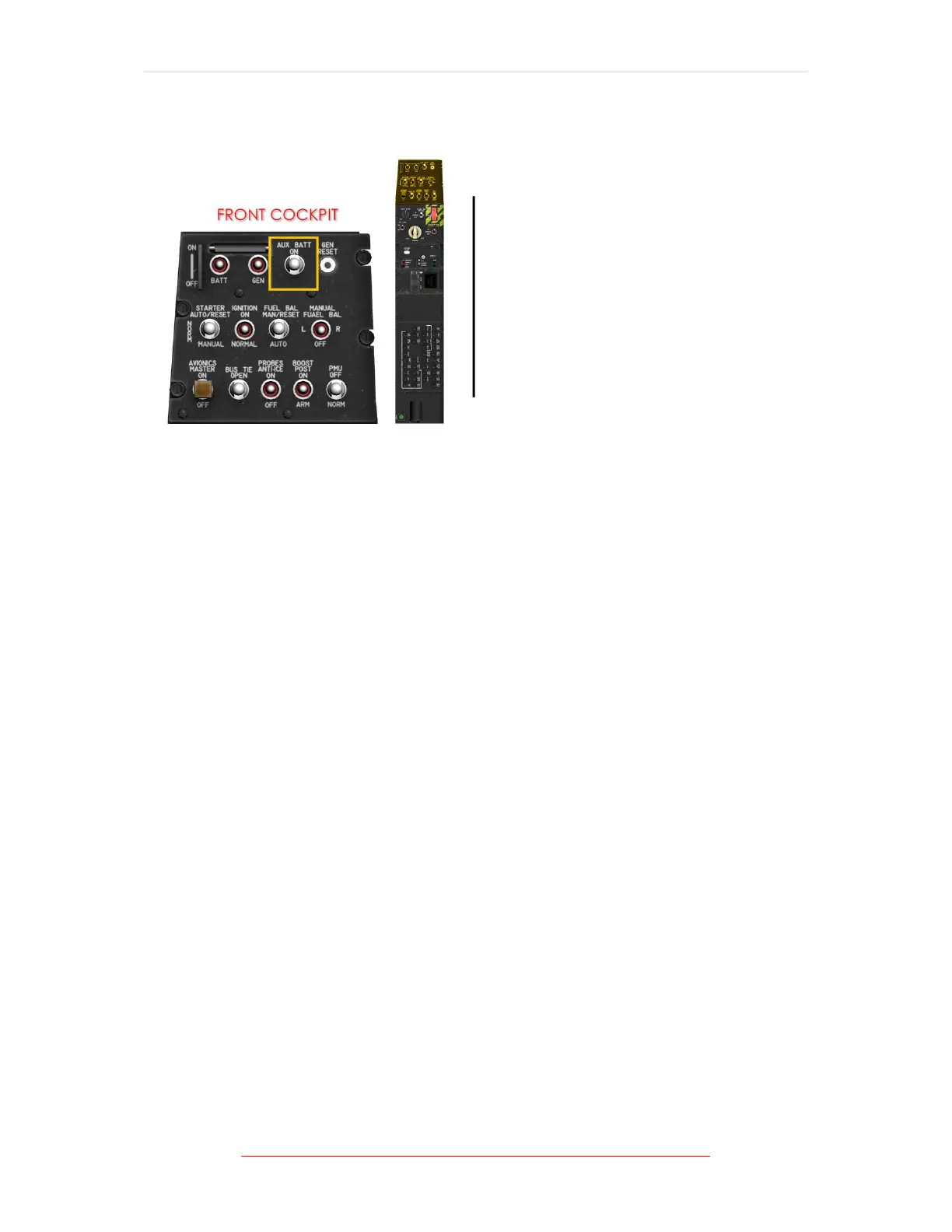

Figure 1-15 Auxiliary Battery Switch Location
Auxiliary power is supplied by a 24 VDC, 5-ampere-hour auxiliary battery, located
in the left avionics compartment, and is controlled by the AUX BAT switch on the
front cockpit right console.
The auxiliary battery power level may be tested by turning the BAT switch ON and
then holding the AUX BAT test switch, located on the front cockpit left console
system test panel, for a minimum of 5 seconds and ensuring the test light remains
illuminated only while the switch is held on. Power is provided through the AUX BAT
circuit breaker located on the front cockpit battery bus.
