I A P 2 0 2 3 . 0 0 1 - A F M / I R I S T E X A N I I P A G E | 90
FOR SIMULATION USE ONLY ā NOT A TRAINING AID
MULTIFUNCTION DISPLAY (MFD)

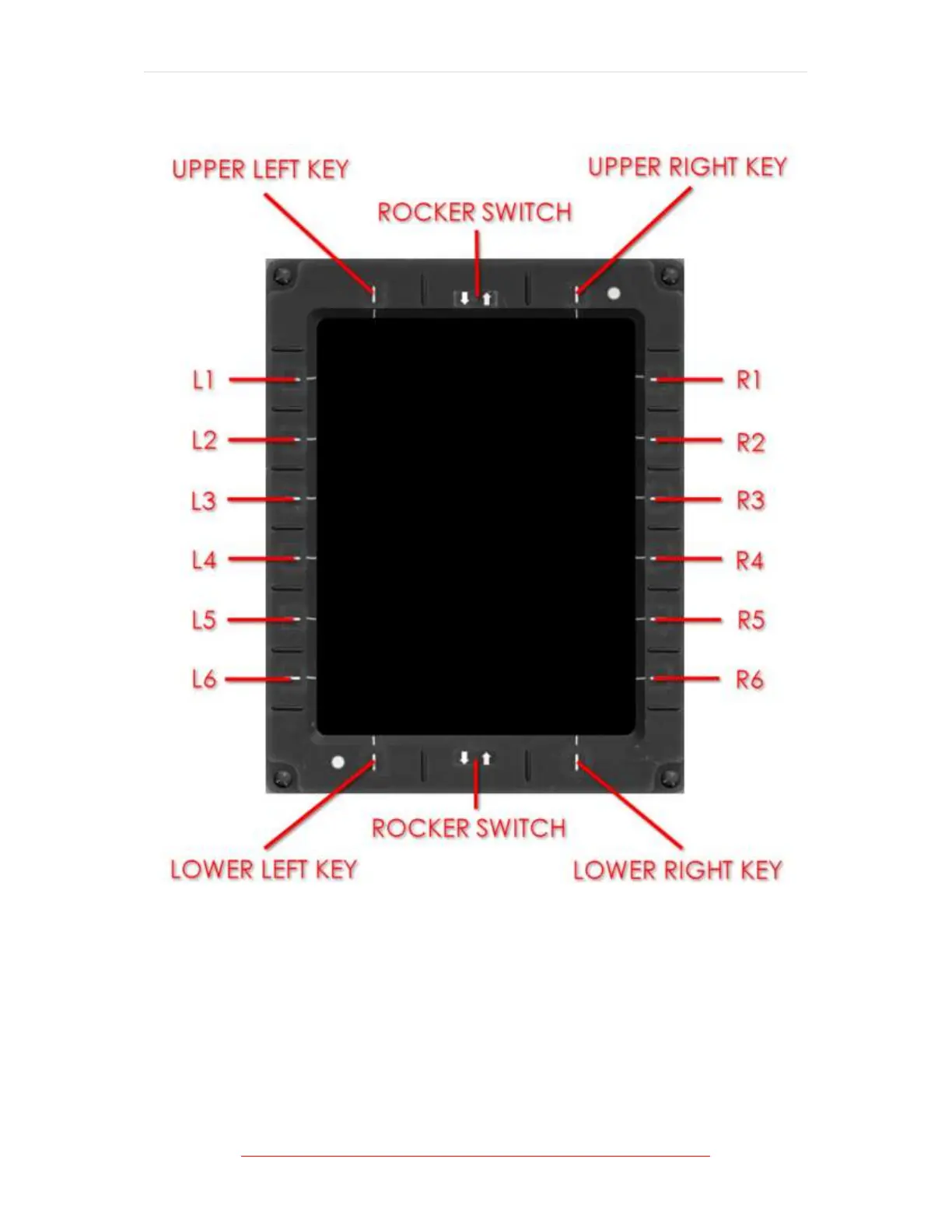

Figure 1-23 Multi-Function Display Line Select Keys (LSK)
Each cockpit features three MFDs that allow for control and display of navigation,
communication, flight, aircraft systems, mission, and miscellaneous information.
The basic MFD formats are configured as the PFD, NAV, and EICAS.
The MFDs in both cockpits operate independently from each other, permitting the
aircrew to select a wide variety of page layouts to suit particular mission phases
and activities.
