Connecting a Remote Control Unit (optional)
The Rain Dial-R controller is remote-ready and is compatible with the
Irritrol Handheld Remote Control model: R-100-KIT. Refer to the user
guide provided with the remote kit for complete information.

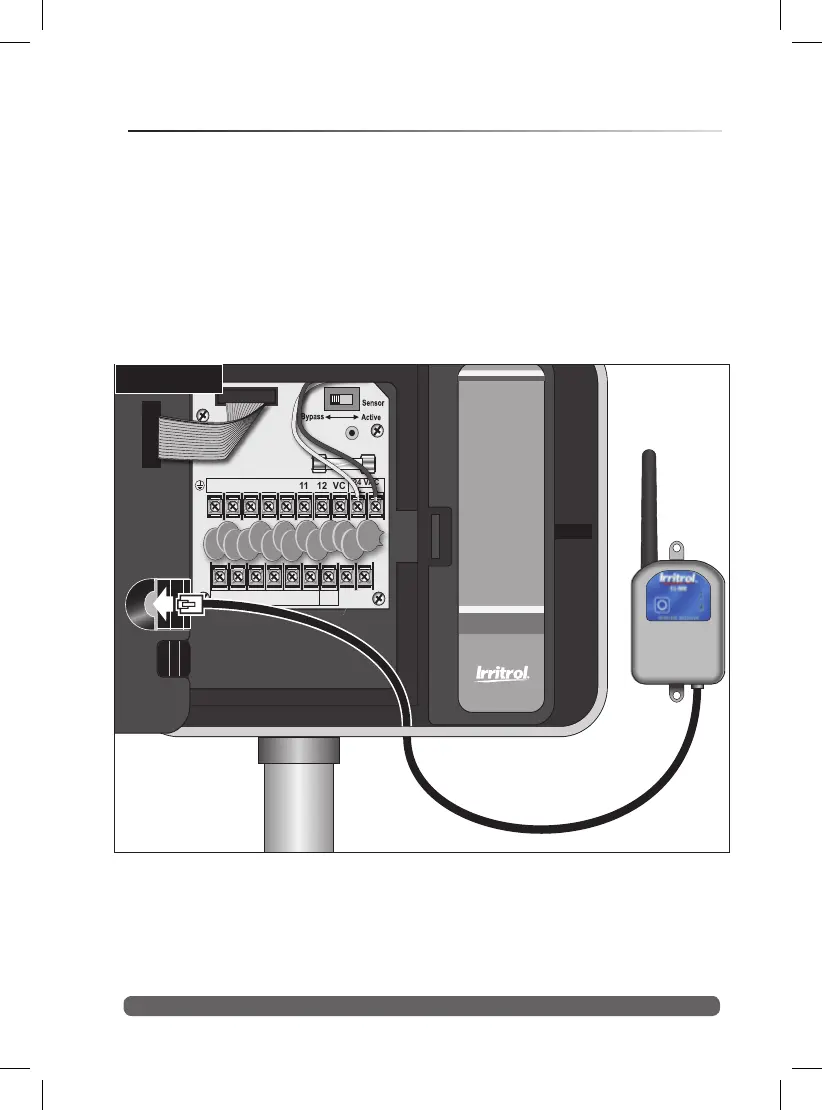

As shown in the illustration below, the R-100-KIT receiver assembly
simply plugs into the receptacle provided in the back of the Rain Dial-R
control module.
Note: Irritrol’s CLIMATE LOGIC weather sensing system’s receiver module
plugs in the same way.
EARTH
GROUND
7 8 9 10 11 12
24 VAC
VC
MV/
Pump
Sensor
+
-
1 2 3 4 5 6
Figure 6
13
