ISLA Instruments S2400 User Manual
– 85 –

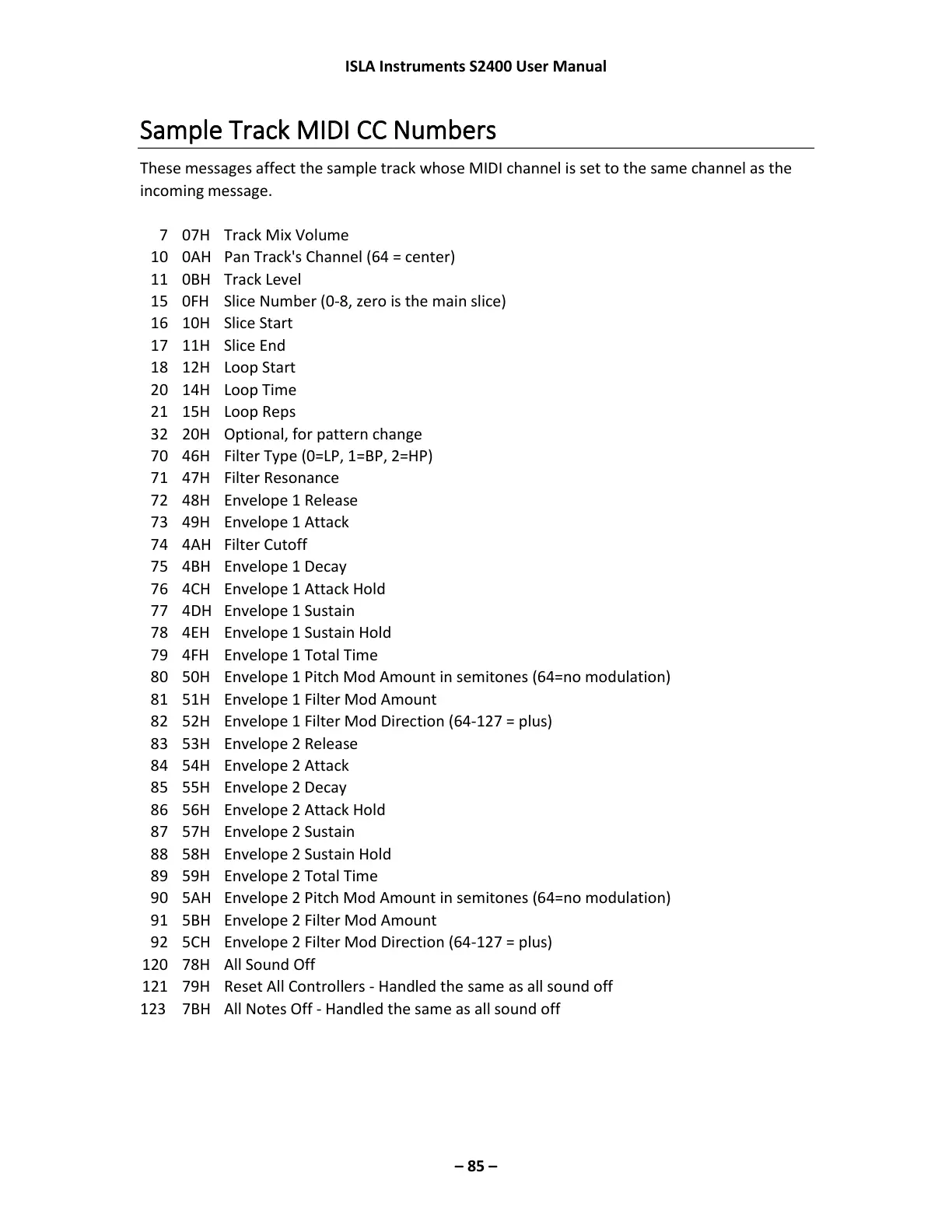

SSaammppllee TTrraacckk MMIIDDII CCCC NNuummbbeerrss
These messages affect the sample track whose MIDI channel is set to the same channel as the
incoming message.
7 07H Track Mix Volume
10 0AH Pan Track's Channel (64 = center)
11 0BH Track Level
15 0FH Slice Number (0-8, zero is the main slice)
16 10H Slice Start
17 11H Slice End
18 12H Loop Start
20 14H Loop Time
21 15H Loop Reps
32 20H Optional, for pattern change
70 46H Filter Type (0=LP, 1=BP, 2=HP)
71 47H Filter Resonance
72 48H Envelope 1 Release
73 49H Envelope 1 Attack
74 4AH Filter Cutoff
75 4BH Envelope 1 Decay
76 4CH Envelope 1 Attack Hold
77 4DH Envelope 1 Sustain
78 4EH Envelope 1 Sustain Hold
79 4FH Envelope 1 Total Time
80 50H Envelope 1 Pitch Mod Amount in semitones (64=no modulation)
81 51H Envelope 1 Filter Mod Amount
82 52H Envelope 1 Filter Mod Direction (64-127 = plus)
83 53H Envelope 2 Release
84 54H Envelope 2 Attack
85 55H Envelope 2 Decay
86 56H Envelope 2 Attack Hold
87 57H Envelope 2 Sustain
88 58H Envelope 2 Sustain Hold
89 59H Envelope 2 Total Time
90 5AH Envelope 2 Pitch Mod Amount in semitones (64=no modulation)
91 5BH Envelope 2 Filter Mod Amount
92 5CH Envelope 2 Filter Mod Direction (64-127 = plus)
120 78H All Sound Off
121 79H Reset All Controllers - Handled the same as all sound off
123 7BH All Notes Off - Handled the same as all sound off
