Iso-Tech IPS 3303D User Manual

SETUP
21

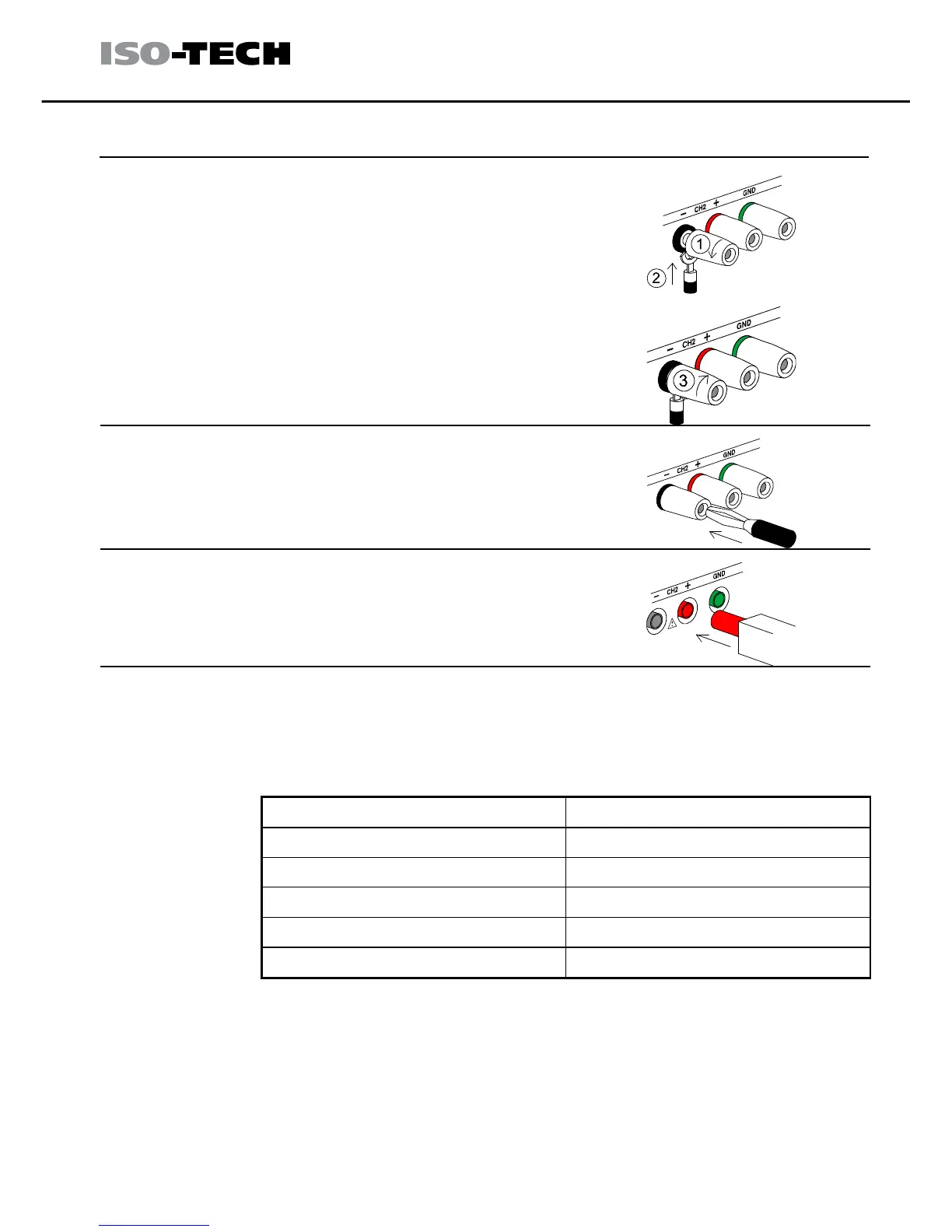

Load Cable Connection
GTL-104A
1. Turn the terminal counter-clockwise and
loosen the screw.
2. Insert the cable terminal.
3. Turn the terminal clockwise and tighten
the screw.
GTL-105A
Insert the plug into the socket.
GTL-203A, 204A
Insert the plug into the terminal.
Wire type
When using load cables other than the attached, make sure they have
enough current capacity for minimizing cable loss and load line
impedance. Voltage drop across a wire should not excess 0.5V. The
following list is the wire current rating at 450A/cm
2
.
Wire size (AWG)
Maximum current (A)
20
2.5
18
4
16
6
14
10
12
16
