Iso-Tech IPS 3303D - CH3 Independent Mode

IPS X303 Series Instruction Manual
26
CH3 Independent Mode
Background /
Connection
For the IPS 3303S the CH3 rating is fixed at 2.5V/3.3V/5V, 3A. CH3 for
the IPS 4303S is variable: 0~5V,0~3A / 5.001~10V,0~1A .
V
A
V
A
CH4 CH2 GND CH3CH1
CH3
LOAD
Output rating
IPS 3303S：2.5V/3.3V/5V，3A (fixed)
IPS 4303S：0~5V,0~3A / 5.001~10V,0~1A
No Tracking
Series/Parallel
CH3 does not have tracking series/parallel mode. Also, CH3 output is not
affected by CH1 and CH2 modes.
Panel operation

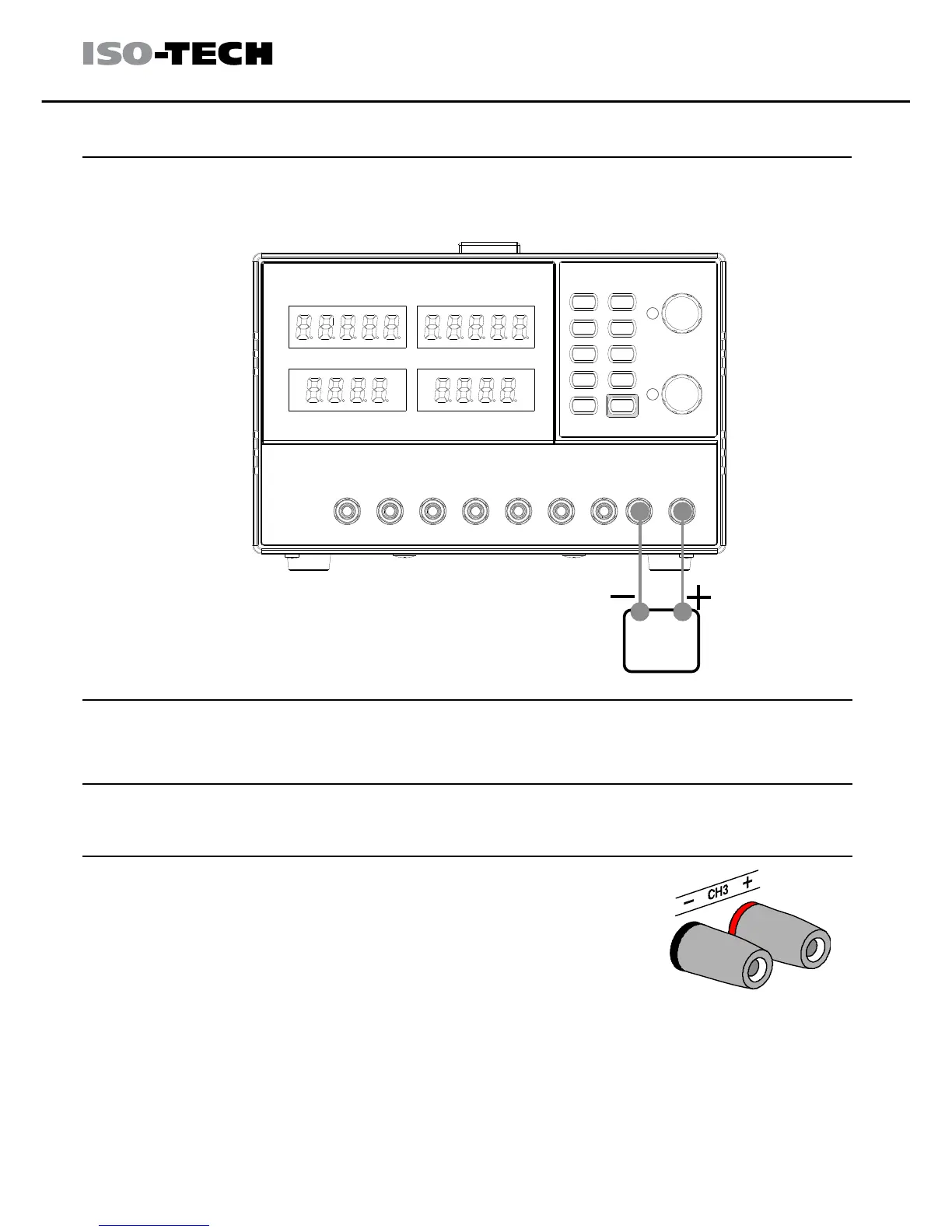

1. Connect the load to the front panel CH3 +/−
terminal. (the diagram shows non-European
terminals)
