IPS X303 Series Instruction Manual
28
CH4 Independent Mode
Background /
Connection
The IPS 4303S has a rating of 5V/1A max.
V
A
V
A
CH4 CH2 GND CH3CH1
CH4
LOAD
Output rating
5V/1A max
No Tracking
Series/Parallel
CH4 does not have tracking series/parallel mode. The CH4 output is not
affected by CH1 and CH2 modes.

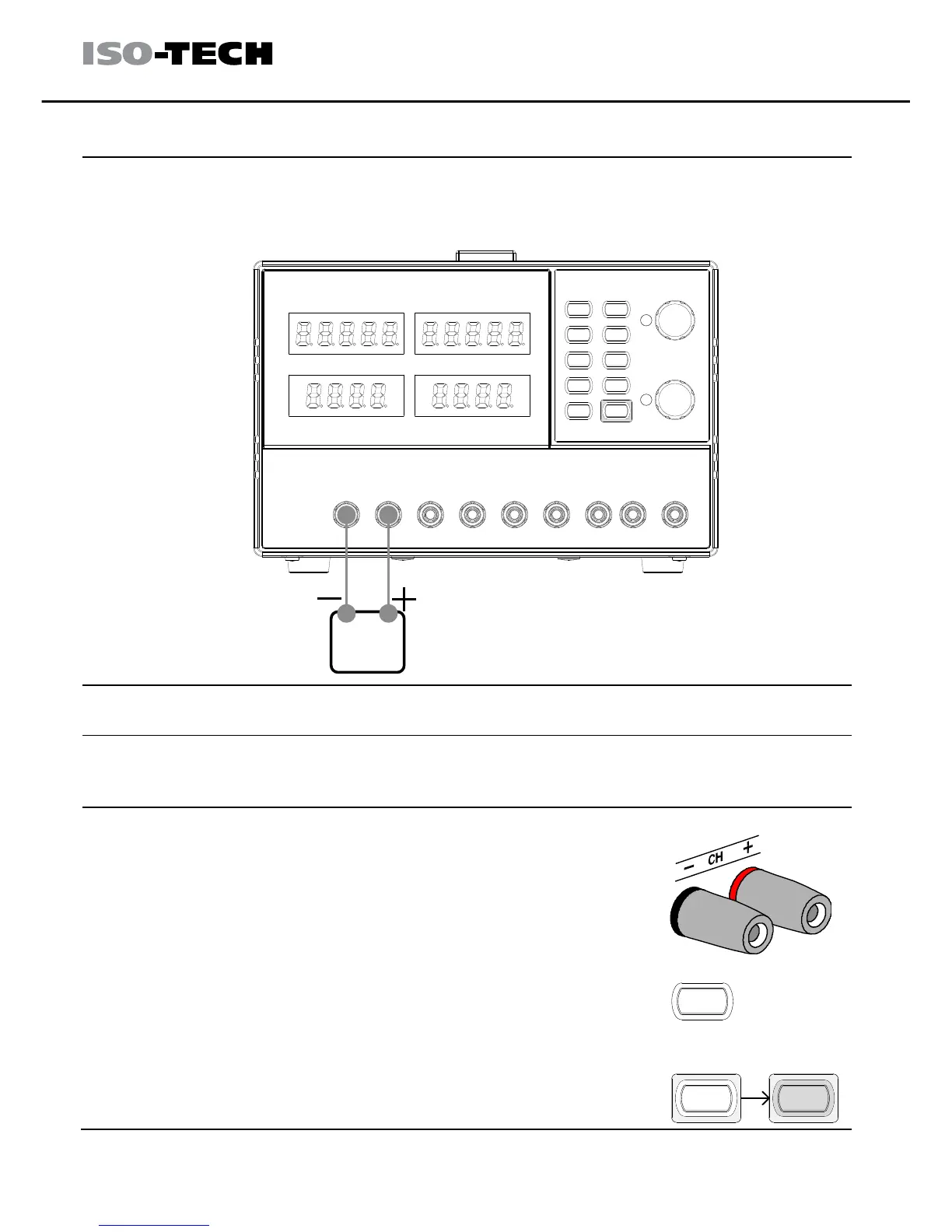

Panel operation
1. Connect the load to the front panel CH4 +/−
terminal. (the diagram shows non-European
terminals)
4
2. Press the CH2/4 key to switch to CH4 (The
CH4 indicator will light). Use the voltage and
current knobs to set the voltage and current.
BEEP
CH2/4
3. To turn on the output, press the output key.
The key LED turns on.
OUTPUT
OUTPUT
