OPERATION
33

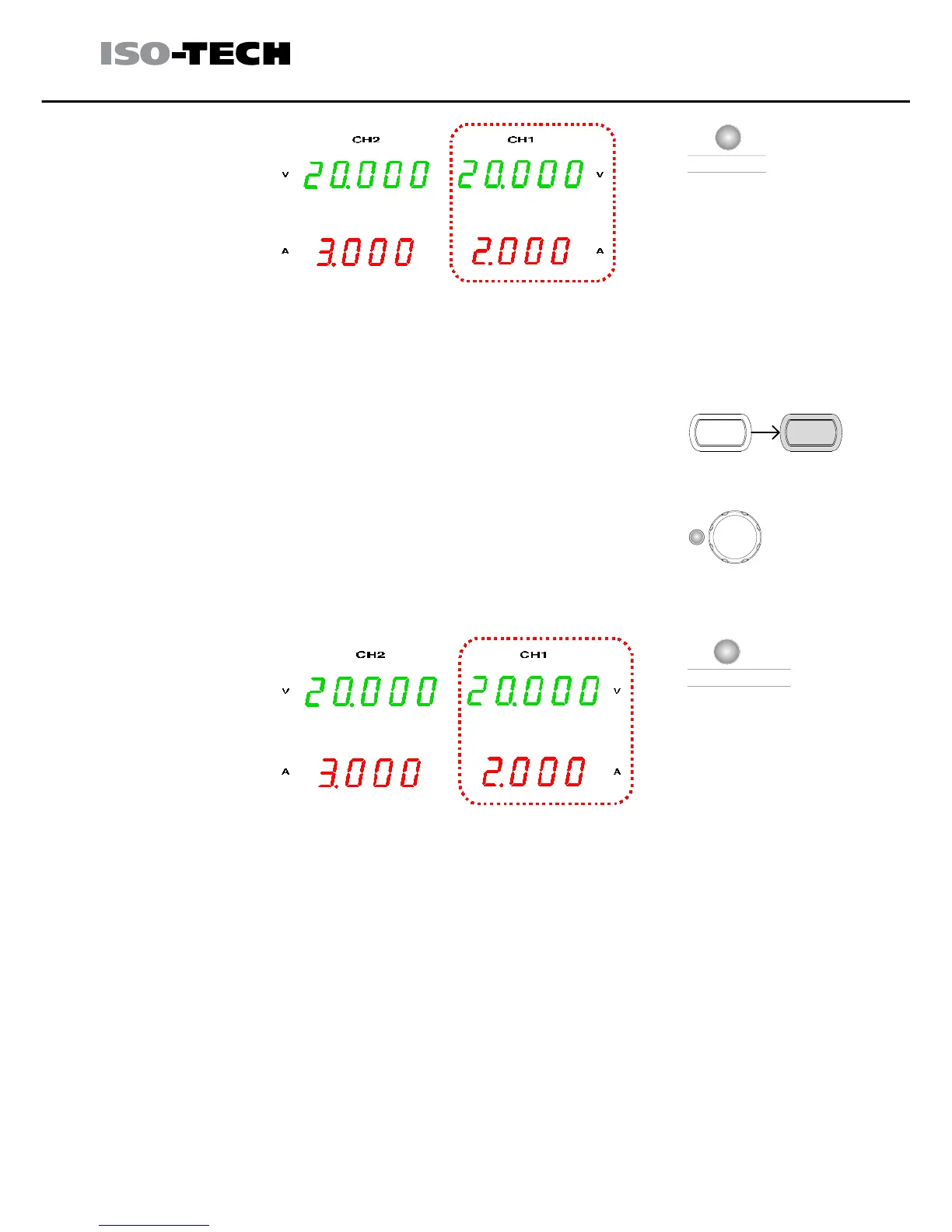

C.V. C.C. PAR. C.V. C.C.
CH2
CH1
Master (CH1)
voltage level
CH1 meter reading shows the output voltage. In the
above case, 20.0V.
Master (CH1)
current level
CH1 meter reading shows the output current. In the
above case, 2.000A.
7. Press the CH2 key (LED turns on) and use the
Current knob to set the slave output current.
BEEP
CH2/4
BEEP
CH2/4
COARSE/FINE
FINE
Push
CURRENT
8. For the slave (CH2) output level and CV/CC status, refer to the
CH1/CH2 meter and CH2 indicator.
C.V. C.C. PAR. C.V. C.C.
CH2
CH1
Slave (CH2)
voltage level
The CH1 meter reading shows the output voltage.
In the above case, 20.0V.
Slave (CH2)
current level
The CH2 meter reading shows the output current.
In the above case, 3.000A.
