Inspection and Installation

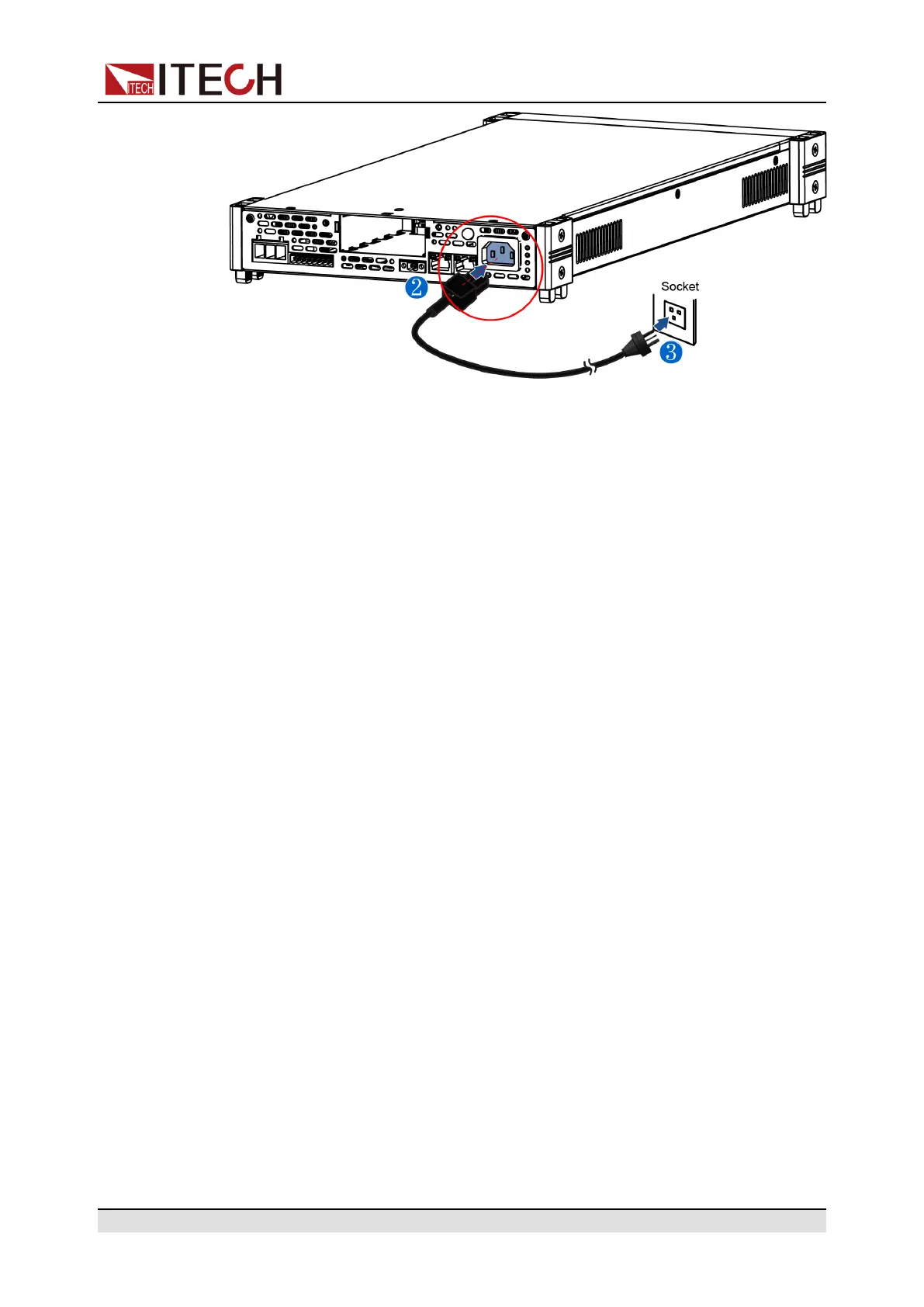

2.5 Connecting the Device Under Test (DUT)
The instrument supports two connection methods with DUT: Local
measurement and Remote sensing. The default test mode is local
measurement.
• Local measurement: The sense voltage is measured from the output
terminals.
• Remote sensing: The sense voltage is measured from DUT terminals.
This series instrument include built-in circuit that connect or disconnect the ±
sense terminals from their corresponding ± output terminals. As shipped, the
sense terminals are internally connected to the output terminals. This is referred
to as Local measurement. If you need to use remote sensing, after making the
connection, be sure to turn the sense function on under system menu.
Precautions
To prevent electric shock and damage to the instrument, observe the following
precautions.
Copyright © Itech Electronic Co., Ltd.
20
