Installation
CENTRON® Meter Technical Reference Guide 15

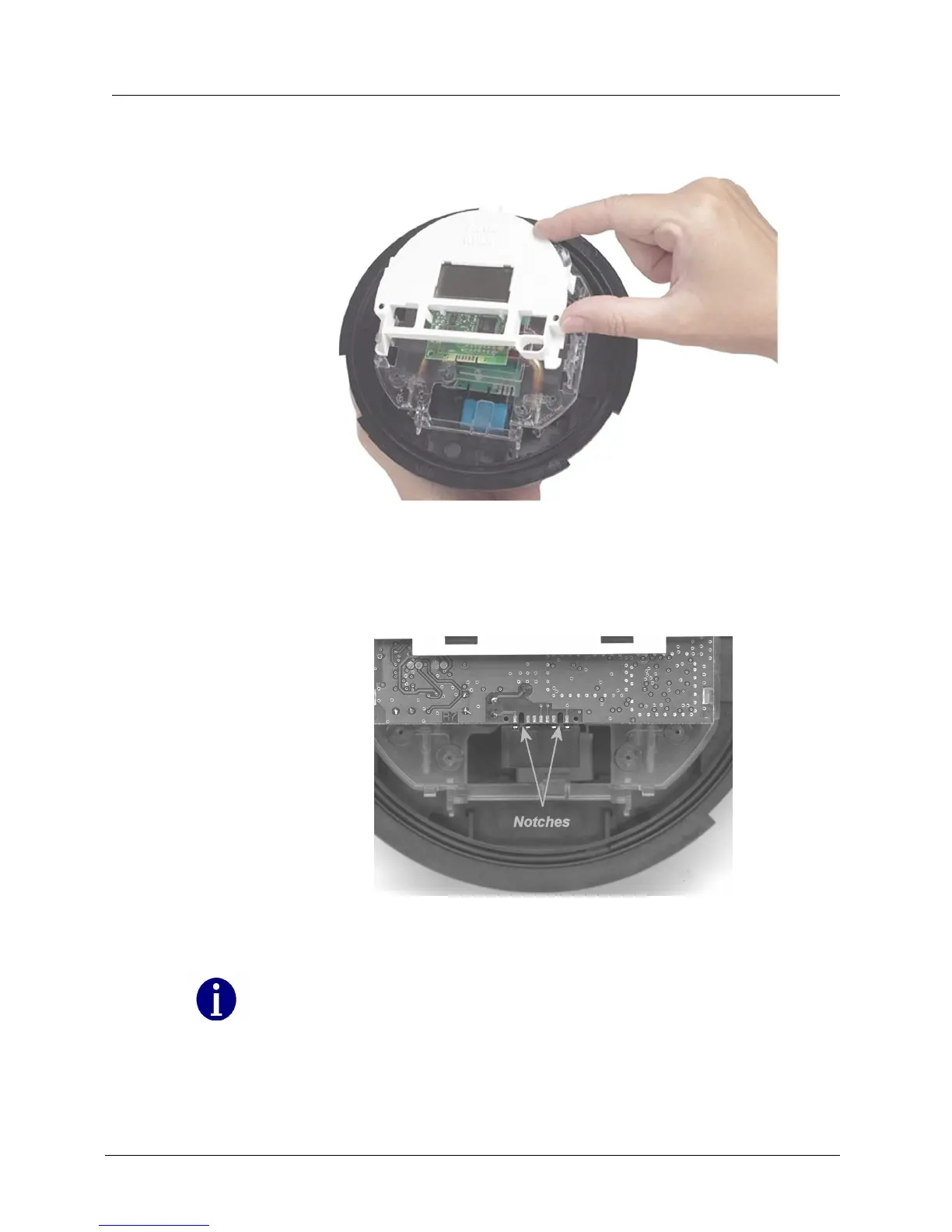

Figure 9: New Module Snap-in
7 Replace the board-to-board connector by aligning the top of the connector with the
notches in the circuit board and pressing gently at the bottom of connector to mate the
connector to metrology board. Then, gently press the top of the connector to mate it to
the register module. The connector is seated correctly when you hear it snap into place.
Figure 10: Circuit Board Notches
Be sure to use the meter base for leverage instead of the LCD holder. Pressure on
the LCD holder may damage the personality module.
