The kWh only version of the CENTRON meter is available with an LCD personality
module to register energy accumulation.

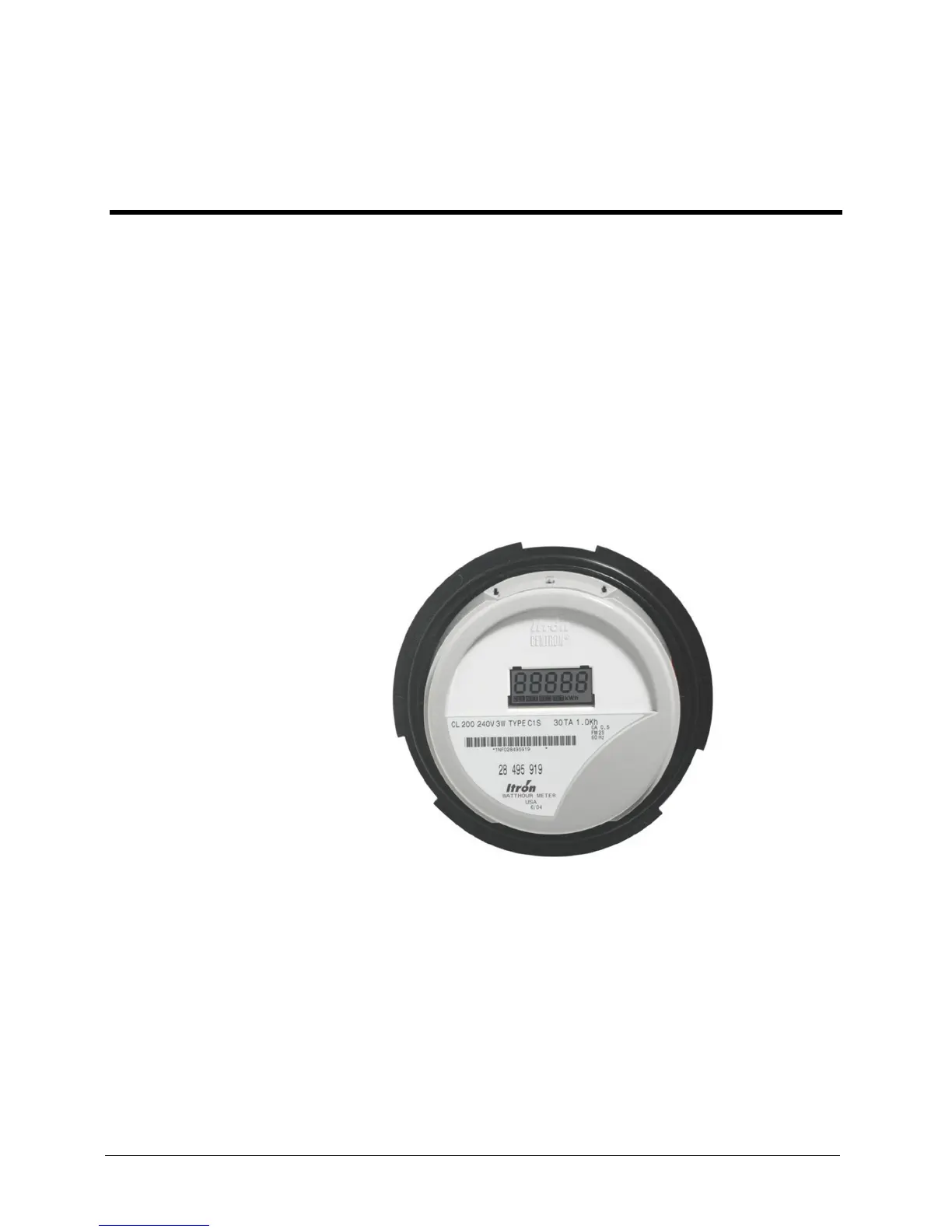

Figure 16: C1S LCD Personality Module
The LCD module may be ordered with a 5x1 or 4x10 register for self-contained meters, and
a 5xTR or 4xTR register for transformer-rated meters.
The kWh only version of the CENTRON not only provides very accurate measurement for
energy accumulation for today's needs, but also provides a platform for easy upgrade to
higher functionality in the future.
