Operation: C1S Version
24 CENTRON® Meter Technical Reference Guide

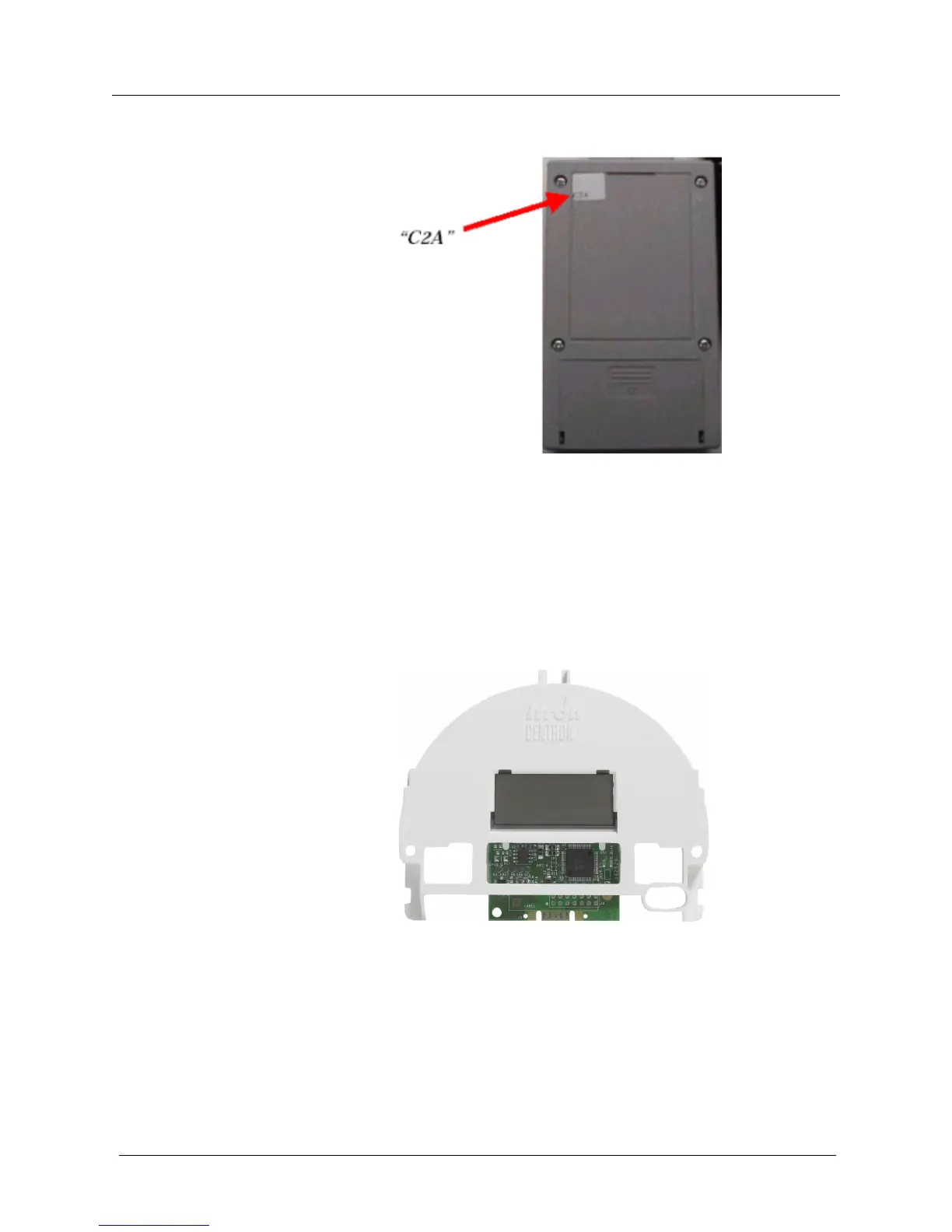

Figure 19: Reverse Side of ZRO-C2A Resetter
LCD Display Function
This display uses five 7-segment digits, four icons to indicate the type of displayed data, and
three icons to represent a watt disk emulator. The display may be configured for either four
or five digits and will roll over at 100,000 kWh.
This module is compatible with the ZRO-C2A Resetter.
Figure 20: LCD
