Installing 40W and 50W ERT Modules PUB-0126-001 4/04
01681F
4-3

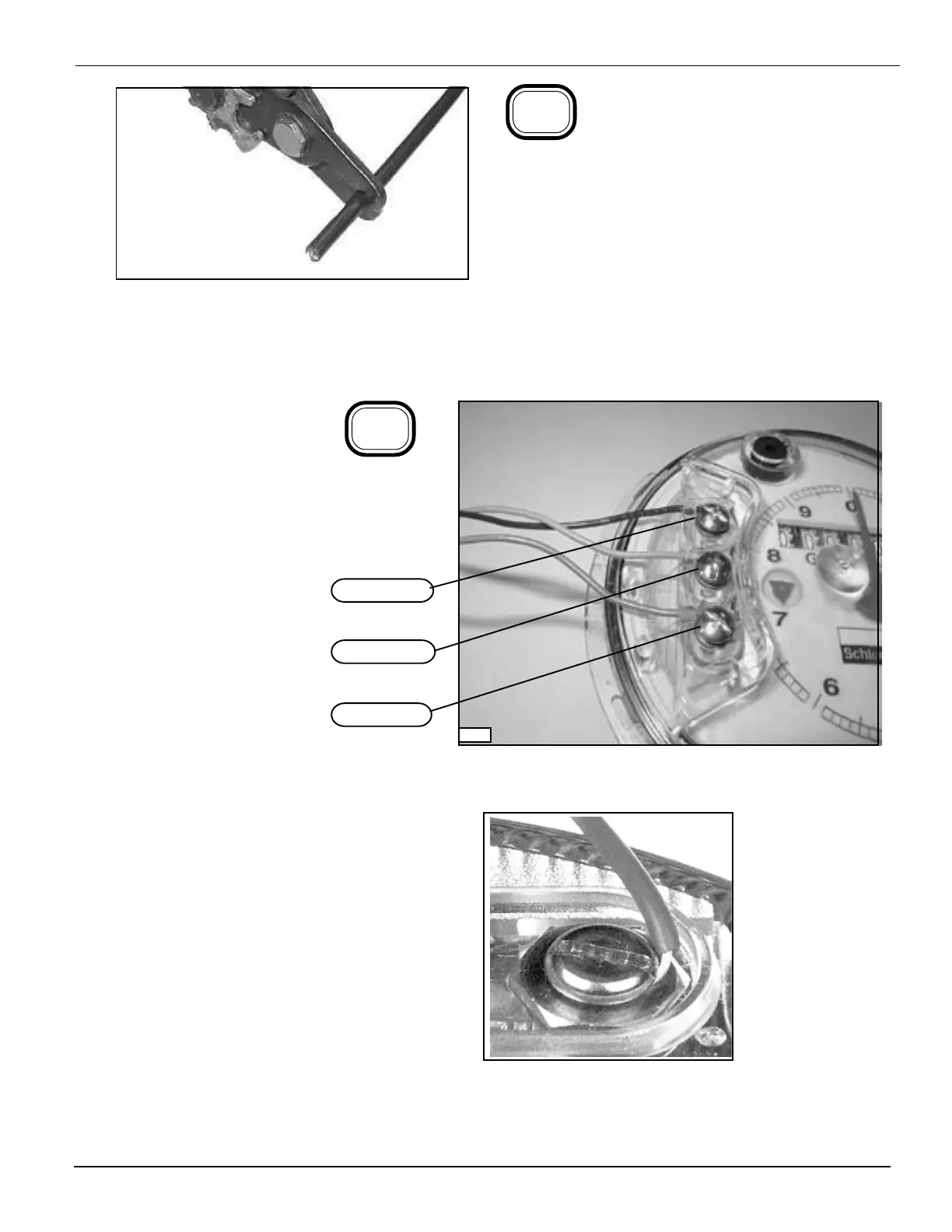

Strip 1/2-inch of insulation from end
of black, green and red wires on
ERT.
4-4
Connect the cable wires from the
ERT to the register screw termi-
nals as shown at right.
Connect the black cable wire to
this screw.
Connect the green cable wire to
this screw.
Connect the red cable wire to
this screw.
IMPORTANT
Be sure to install the wires around
the screws in a clockwise direc-
tion, as shown. If you don't, the
wires may partially or completely
come out from under the screw
heads as you tighten them. Also,
make sure no insulation is com-
pressed under the screw head,
or the wire might not make good
contact.
4-2
