Installing 40W and 50W ERT Modules
1.5 40W & 50W ERT Configurations

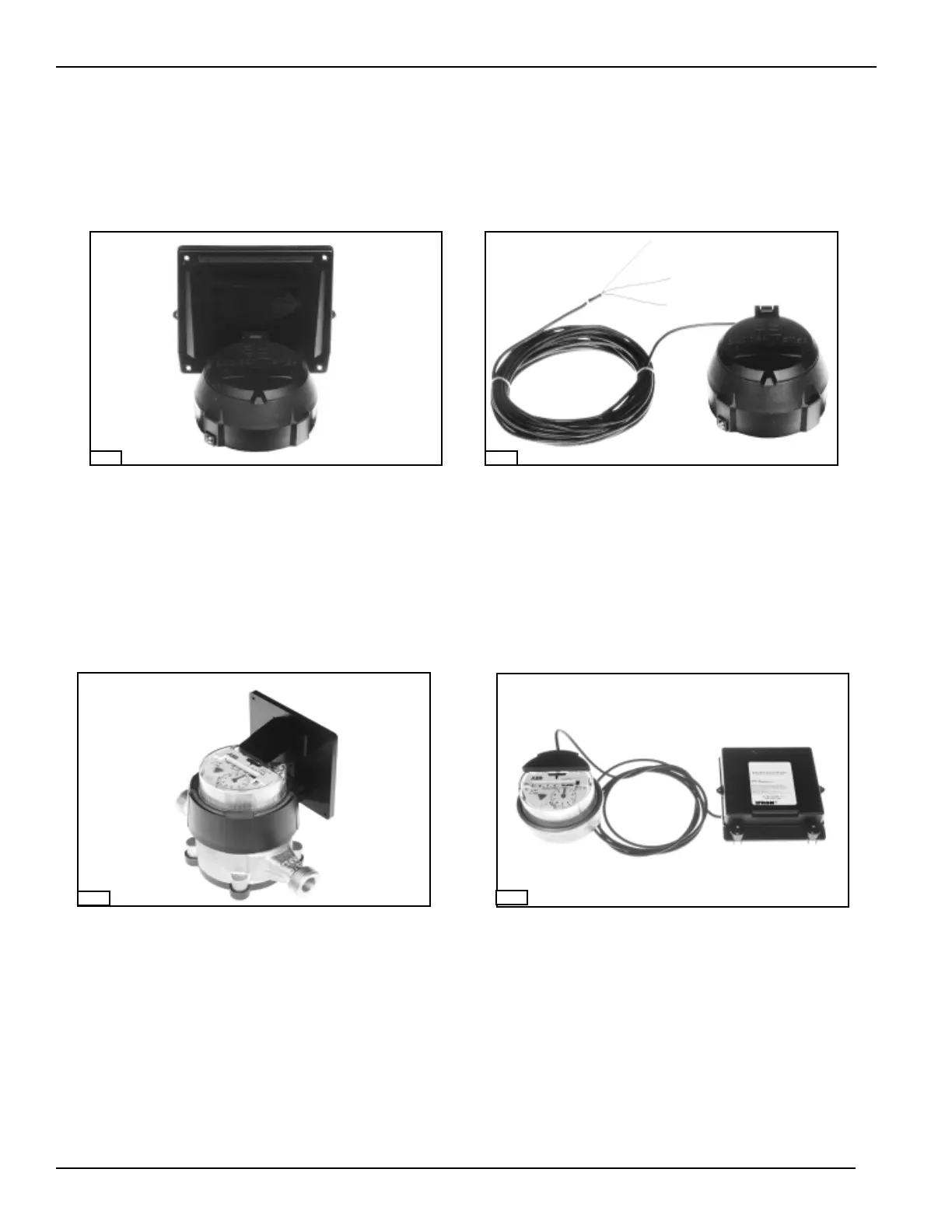

The next three pages illustrate the installation configurations described in this manual.
1.5.1 Badger
1.5.2 AMCO (ABB) Digital, Scancoder and InVISION
DIRECT MOUNT. The AMCO Digital, Scancoder
or InVISION ERT module mounts directly on the
bracket supplied by AMCO.
REMOTE-MOUNT. The ERT module is wired to
the unterminated cable, which can be up to 500
feet in length. Three feet to 100 feet can be
ordered from Badger (typically 25 feet is supplied
by Badger). The remote can be mounted on a
pipe or flat surface.
DIRECT-MOUNT. The ERT module mounts
directly on the bracket supplied by Badger.
REMOTE-MOUNT. The ERT module is wired to
the cable, which can be up to 300 feet in length.
The remote can be mounted on a pipe or flat
surface.
01265F
01545
0109001092
CAUTION: Be sure to attach correct ERT module to appropriate meter register.
1-3
