Installing 40W and 50W ERT Modules
A connector is crimped properly if the
top of the movable, yellow center part
is flush with the
top of the connector body.
CAUTION
Crimping the connectors sometimes squeezes some
sealant out of them. The sealant protects the inside
of the connector against insects, moisture, and other
contaminants.
The sealant may cause minimal eye and skin irrita-
tion. Avoid eye contact. Avoid prolonged or re-
peated skin contact.
00665
00659x

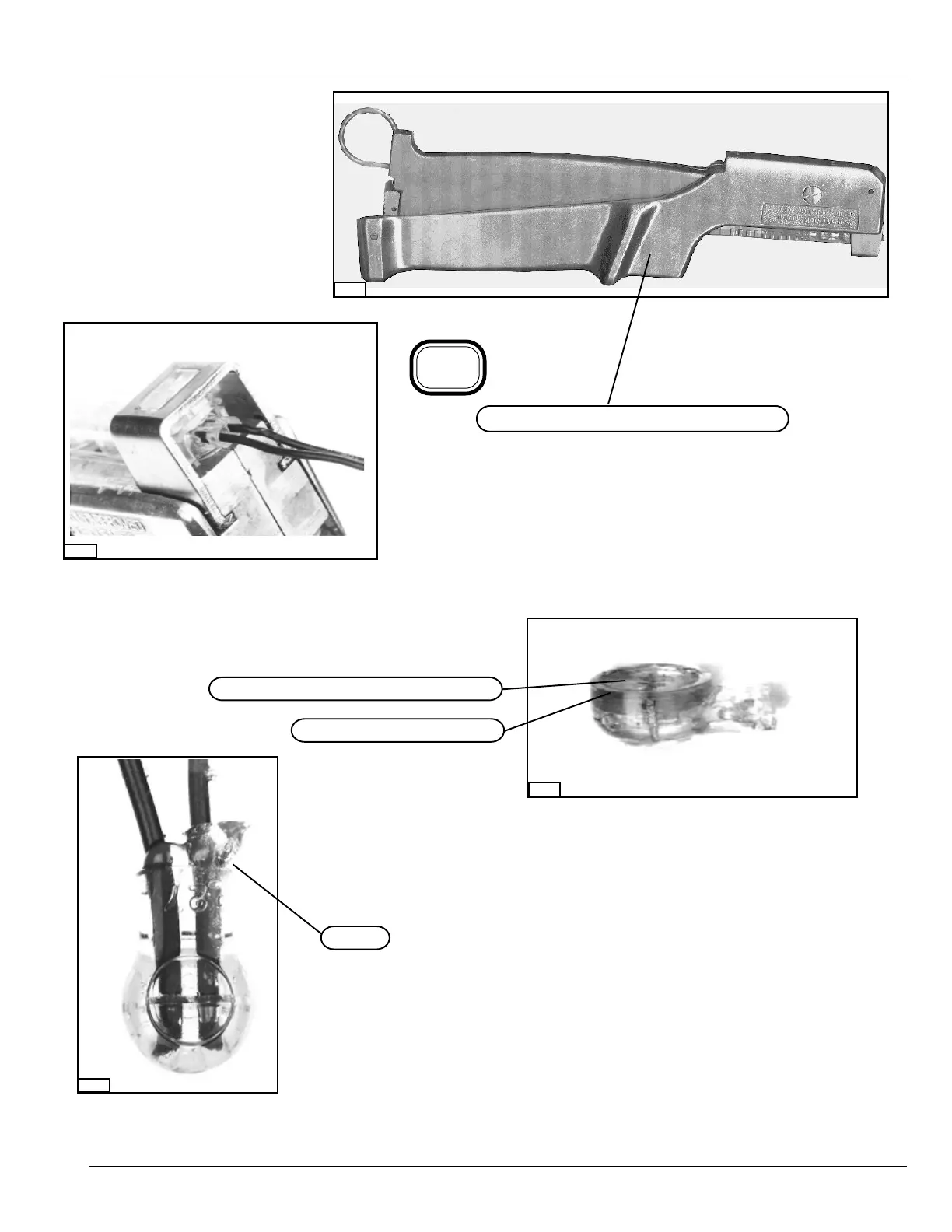

If using a 3M Scotchlok Model E-9C Cartridge Tool, push
the ends of the wires to be connected into the connector at
the end of the crimping tool, as shown.
Then squeeze the crimping tool handle until it pushes the
connector (now crimped) out of the tool when you release
the handle.
A-4
A-2
00654
00664
To Next Page
