ITRON SHARPFLOW SWB7 - Bends; Open Discharge

2 INSTALLATION
12
SHARPFLOW SWB7 + CWB7
www.itron.com WA-0092.0-EN-qs-06.13
2.8.3 Bends
2.8.4 Open discharge

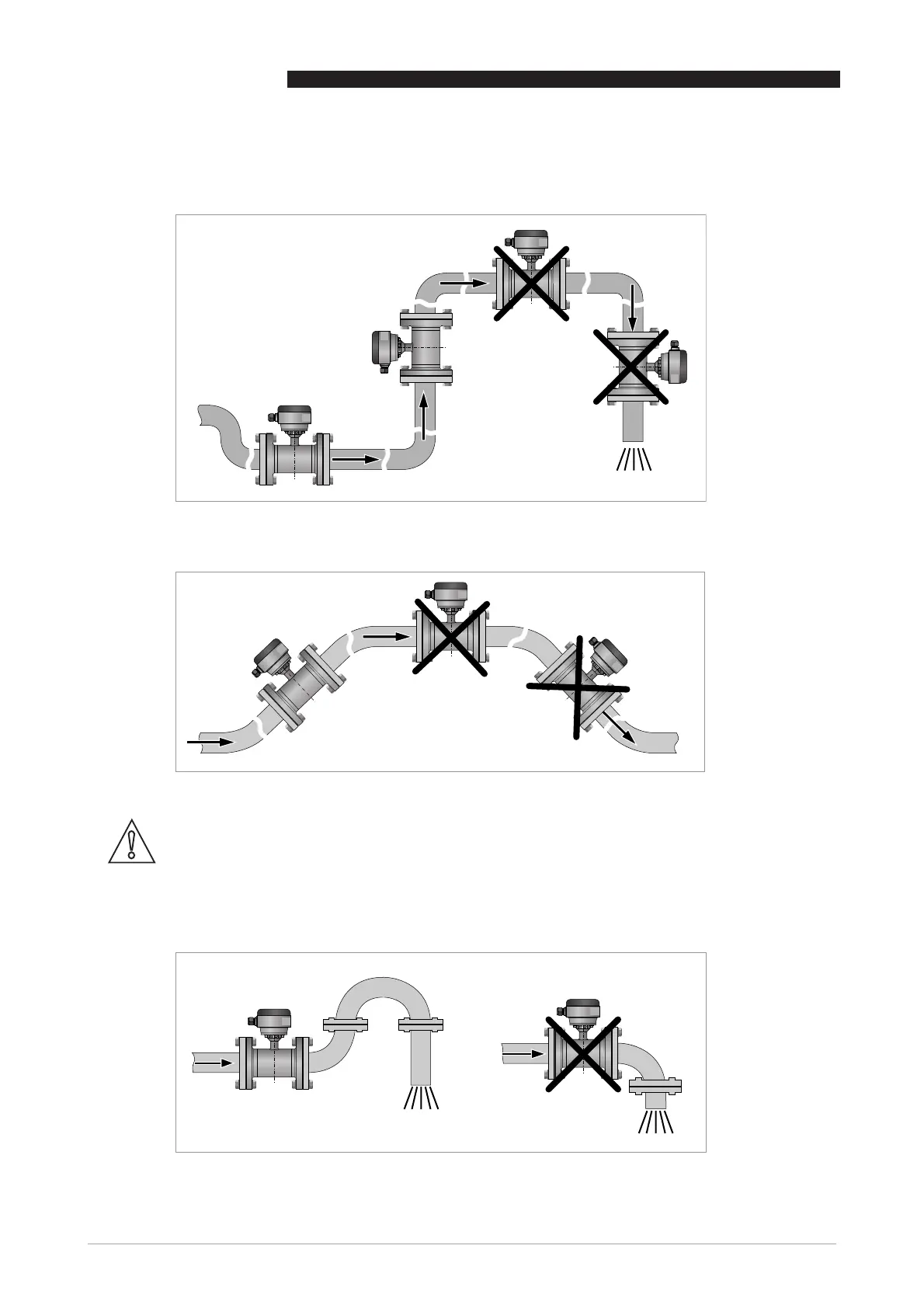

Figure 2-10: Installation in bending pipes
Figure 2-11: Installation in bending pipes
CAUTION!
Avoid draining or partial filling of the flow sensor
Figure 2-12: Installation in front of an open discharge
