ELECTRICAL CONNECTIONS 3
25
SHARPFLOW SWB7 + CWB7
www.itron.comWA-0092.0-EN-qs-06.13
3.4.2 IP68 housing (compact version)
Output cable with IP68 rated connectors with 5 color coded leads:
Optional output cable with IP 68 rated connectors with 12 color coded leads:
Electrical values
• Pulse output passive:
Pulse output passive:Pulse output passive:
Pulse output passive:
f ≤ 100 Hz; I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)
• Status output passive:
Status output passive:Status output passive:
Status output passive:
I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)

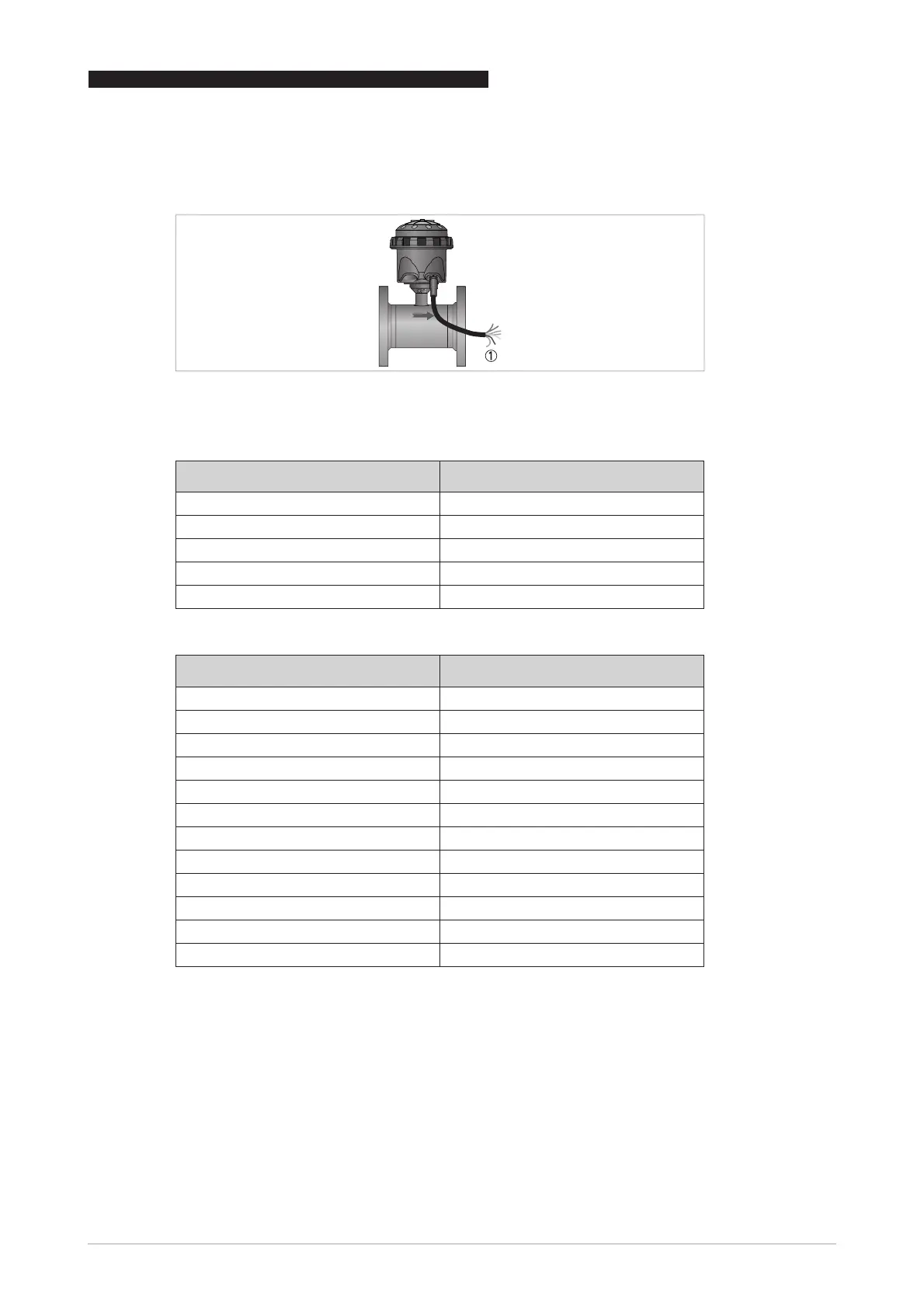

Figure 3-7: Output cable at IP68 compact version
1 Color coded leads of output cable
Wire color Function
Yellow DIR
Grey HF
White LF
Brown Ground wire
Green Cable cut detection
Wire color Function
Yellow Direction
Grey HF
White LF
Brown Ground
Green Cable cut detection
Black Battery -
Red Battery +
Violet Pulse output A
Pink Pulse output B
Blue Common
Red / Blue Status output 1
Grey / Pink Status output 2
