ITRON SHARPFLOW SWB7 User Manual

INSTALLATION 2
19
SHARPFLOW SWB7 + CWB7
www.itron.comWA-0092.0-EN-qs-06.13

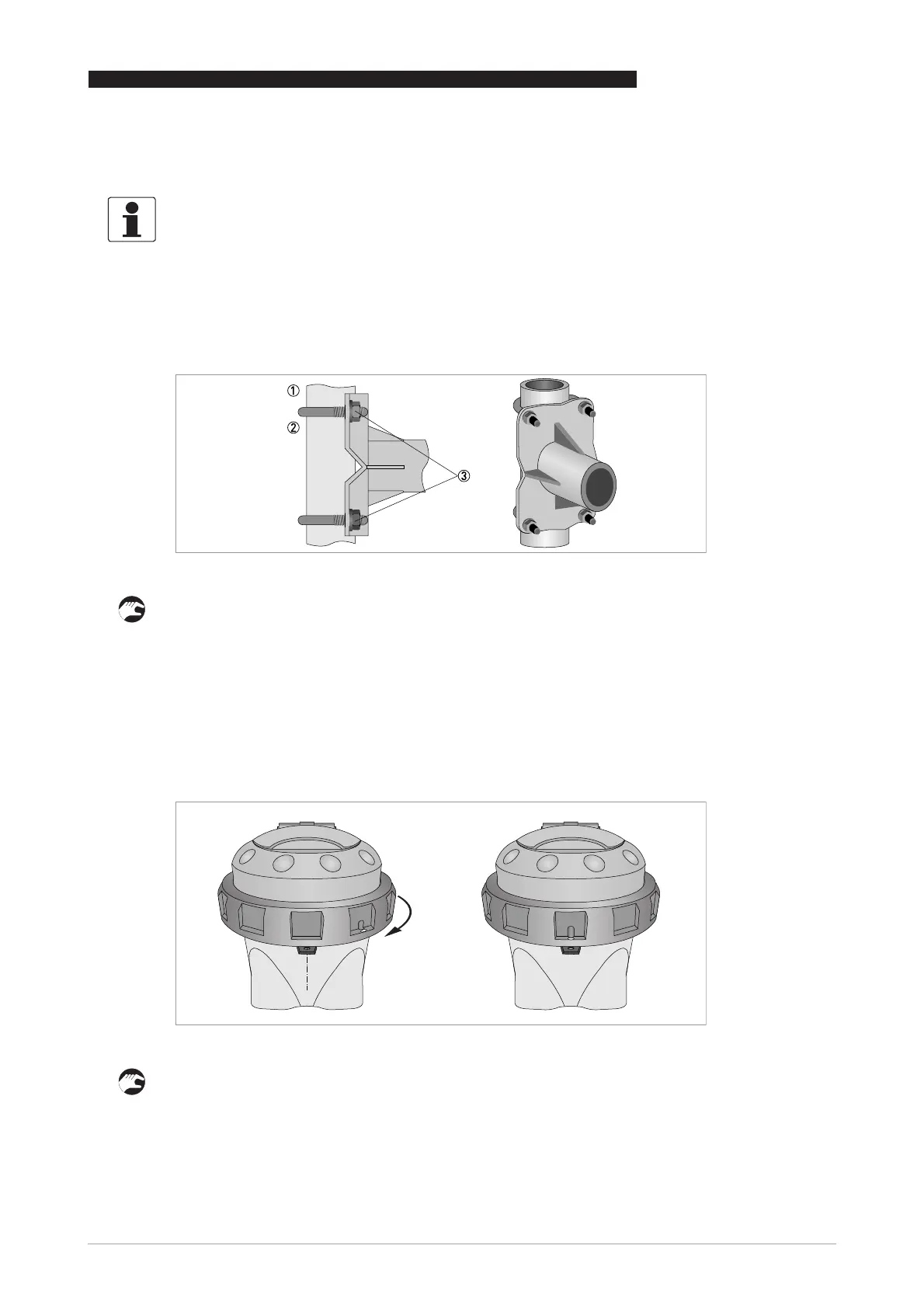

2.10 Mounting of the signal converter
2.10.1 IP67 housing, remote version
Pipe mounting
Pipe mountingPipe mounting
Pipe mounting
1 Fix the signal converter to the pipe.
2 Fasten the signal converter using standard U-bolts and washers.
3 Tighten the nuts.
Wall mounting
Wall mountingWall mounting
Wall mounting
No special requirements.
2.10.2 IP68 housing, compact version
• Before closing the case of the converter, ensure that all surfaces in contact with the seals are
clean.
• Position the upper part of the case and tighten the lock ring.
• Use the wrench to tighten the ring as shown.
INFORMATION!
Assembly materials and tools are not part of the delivery. Use the assembly materials and tools
in compliance with the applicable occupational health and safety directives.
Figure 2-20: Pipe mounting of the field housing
Figure 2-21: Closing of IP68 housing
