ELECTRICAL CONNECTIONS 3
23
SHARPFLOW SWB7 + CWB7
www.itron.comWA-0092.0-EN-qs-06.13
3.4 Connection of the output cable
3.4.1 IP67 housing (field version)
Electrical values
• Pulse output passive:
Pulse output passive:Pulse output passive:
Pulse output passive:
f ≤ 100 Hz; I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)
• Status output passive:
Status output passive:Status output passive:
Status output passive:
I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)

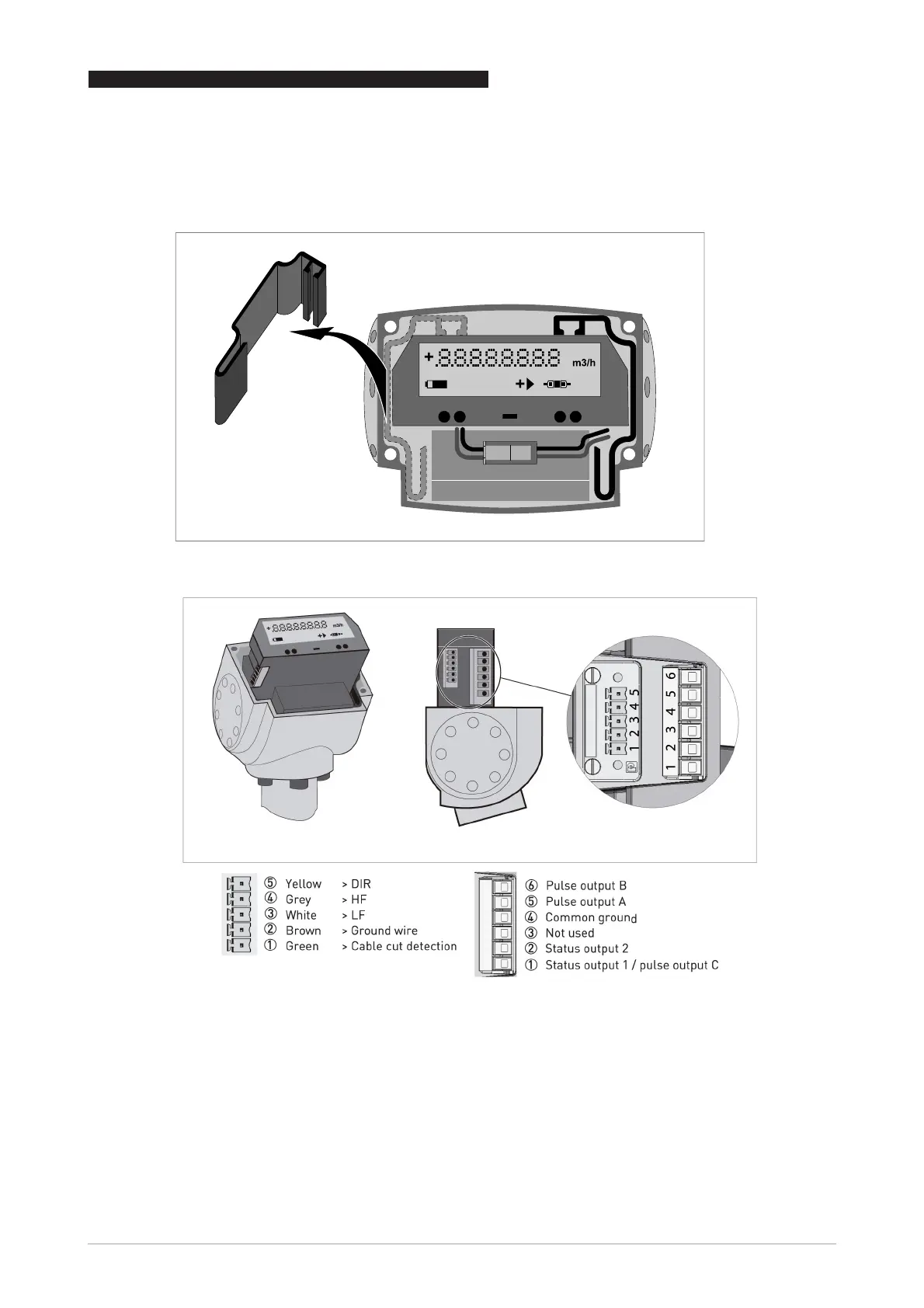

Figure 3-5: Removing side cap
Figure 3-6: Terminal assignment
