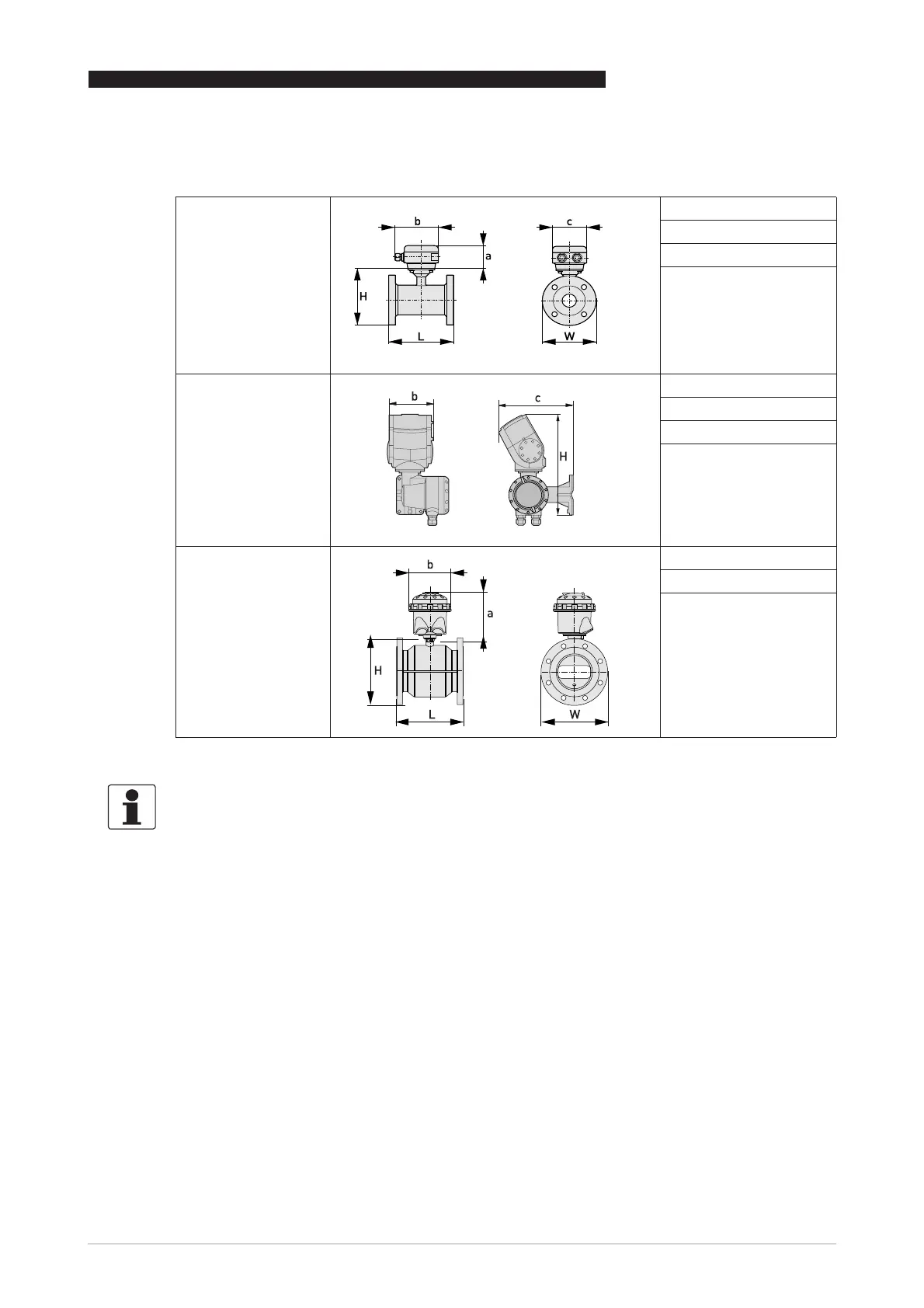

5.1 Dimensions and weights
Remote flow sensor
Remote flow sensorRemote flow sensor
Remote flow sensor a = 88 mm / 3.5"
b = 139 mm / 5.5" 1
c = 106 mm / 4.2"
Total height = H + a
Remote version in
Remote version in Remote version in
Remote version in
aluminium housing
aluminium housing aluminium housing
aluminium housing
(IP67)
(IP67)(IP67)
(IP67)
b = 132 mm / 5.2"
c = 235 mm / 9.3"
H = 310 mm / 12.2"
Weight = 3.3 kg / 7.3 lb
Compact version in
Compact version in Compact version in
Compact version in
polycarbonate housing
polycarbonate housing polycarbonate housing
polycarbonate housing
(IP68)
(IP68)(IP68)
(IP68)
a = 159 mm / 6.3"
b = 161 mm / 6.3"
Total height = H + a
1 The value may vary depending on the used cable glands.
INFORMATION!
•
All data given in the following tables are based on standard versions of the flow sensor only.
•
Especially for smaller nominal sizes of the flow sensor, the signal converter can be bigger
than the flow sensor.
•
Note that for other pressure ratings than mentioned, the dimensions may be different.
•
For full information on signal converter dimensions see relevant documentation.
