i-ALERT2 Application Guide 22 of 64
END SUCTION PUMP
On end-suction (overhung) style pumps where the thrust and radial bearings are contained within the same bearing
housing, ITT Goulds Pumps recommends mounting the i-ALERT2 device centrally on the bearing housing in an area where
the LEDs can easily be observed.

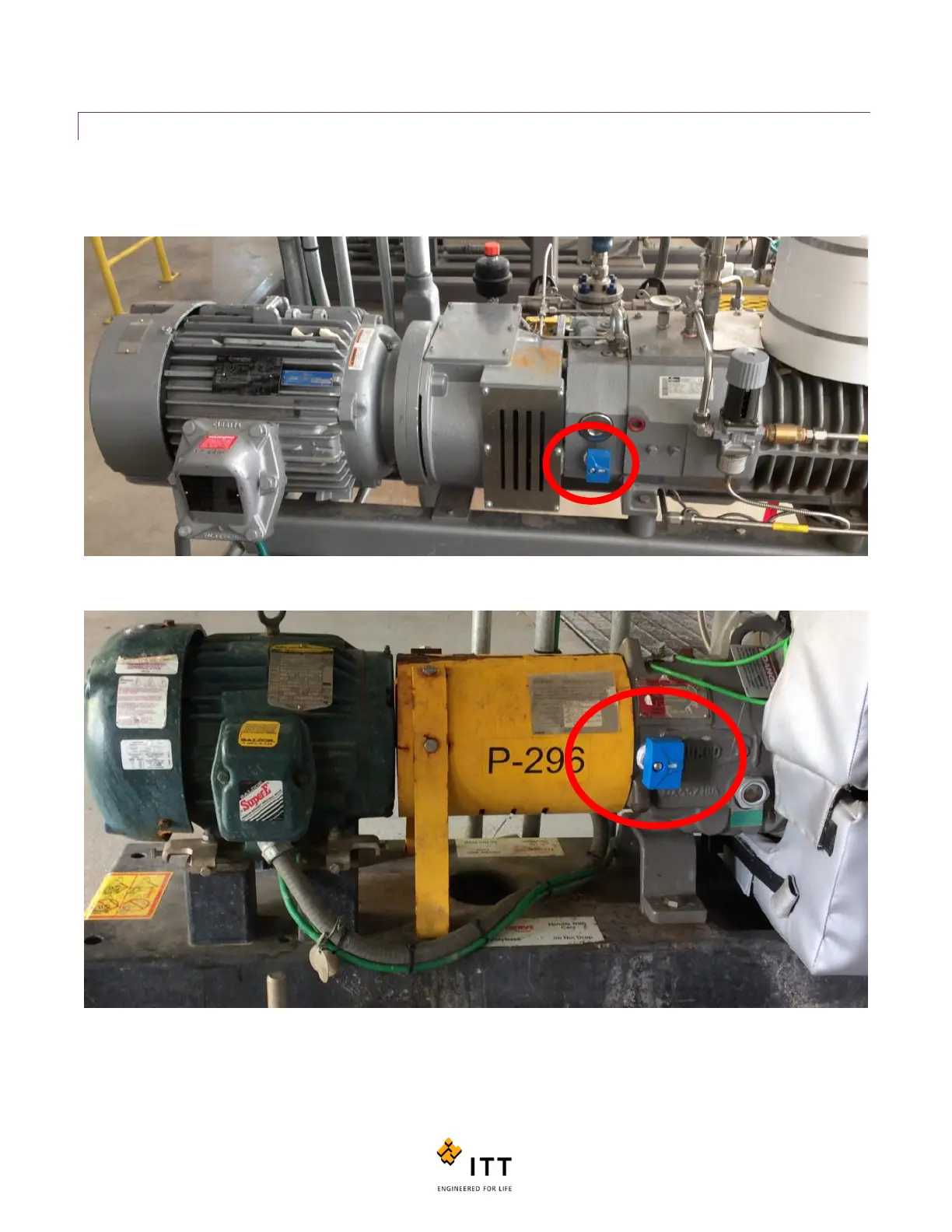

Figure 14: Chemical Process pump, side mounted to bearing frame
Figure 13: PD pump, side mounted to frame
