i-ALERT2 Application Guide 23 of 64
HORIZONTAL ELECTRIC MOTORS
Mount the i-ALERT2 monitor directly over the bearing housing on the drive-end bearing. A second monitor can be mounted
over the non-drive end bearing if desired. Never mount a monitor on a fan cover!

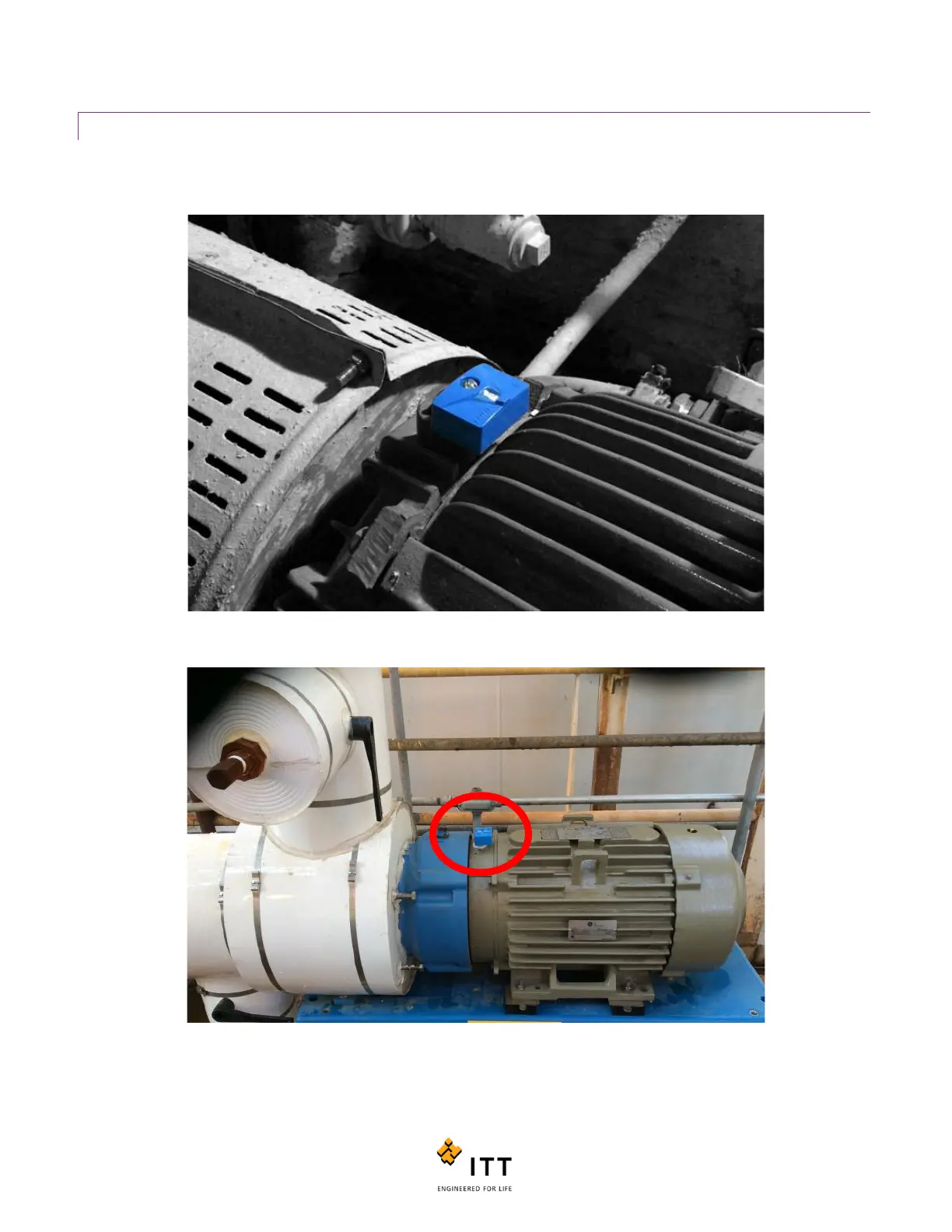

Figure 16: Close coupled motor, mounted over drive end bearing housing
Figure 15: Horizontal motor, mounted over drive end bearing housing
