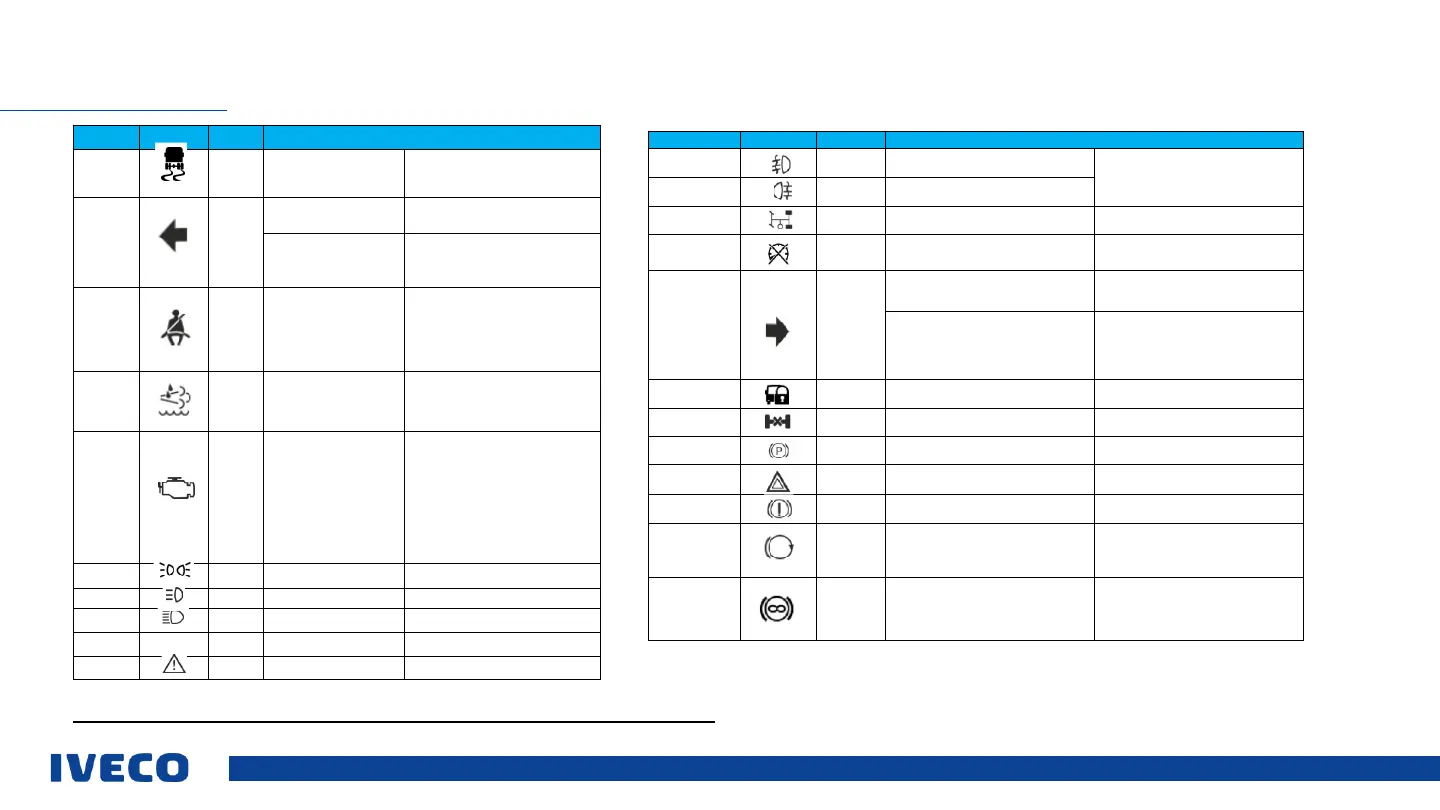

IDEOGRAMS
REFERENC
E
IDEOGRAM
COLOUR
DESCRIPTION
1 yellow
ESC.
A flashing light indicates interference by
the system.
When the light is switched on, this
indicates a fault in the system.
2 green
Left blinker.
The indicator light switches on when the
control lever on the steering wheel is
pushed to the left.
Warning flashers.
The indicator light switches on alongside
the light for the right blinker when the
warning flasher button is pressed.
3 red
Seat belt (driver’s side).
When the light is switched on, this
indicates that the belt is not worn when the
vehicle is stopped.
When the light is flashing, accompanied by
an acoustic alarm, this indicates that the
belt is not worn when the vehicle is
moving.
4 yellow
Inducement.
When the light is switched on, this informs
the driver of the quantity, quality and
abnormal consumption of
AdBlue®
liquid,
as well as a fault in the emissions control
system.
5 yellow
EOBDII / MIL (European On
Board Diagnostic / Malfunction
Indicator Lamp) warning light.
When the ignition key is inserted, the
control light is illuminated; however, it
should go out again after the engine is
started.
If the light is flashing while the engine is
running, this indicates an operational fault
in one or more components/sub
-
systems of
the engine.
The indicator light goes out once the
malfunction is corrected, but the system
saves the message.
6 green
Exterior lighting.
When the light is switched on, this
indicates activation.
7 yellow
NOT AVAILABLE
-
6 Blue
High beam.
When the light is switched on, this
indicates activation.
9 STOP red
General fault / malfunction
indicator.
-
10 yellow
General alarm indicator.
-
REFERENCE IDEOGRAM COLOUR DESCRIPTION
11 green
Fog lights.
When the light is switched on, this indicates
activation.
12 yellow
Rear fog lamps.
13 yellow
Power take
-off (PTO).
When the light is switched on, this indicates
that the system is active.
14 red
Malfunction
Instrument panel.
When the light is active, this indicates a fault
in the instrument panel.
15 green
Right blinker.
The indicator light switches on when the
control lever on the steering wheel is pushed
up.
Warning flashers.
The indicator light switches on alongside the
light for the left blinker when the warning
flasher button is pressed.
16 yellow
NOT AVAILABLE
-
17 yellow
Differential lock engaged.
When the light is switched on, this indicates
that the system is active.
18 red
Emergency brake.
When the light is switched on, this indicates
that the system is active.
19 red
Warning flashers.
When the light is switched on, this indicates
activation.
20 red
Braking system fault.
When the light is switched on, this indicates a
fault in the system.
21 yellow
Engine brake.
When the light is switched on, this indicates
that the system is active.
A flashing light indicates a fault in the system.
22 yellow
Intarder.
A flashing light indicates that the system must
be activated.
When the light is switched on, this indicates
that the system is active.
