2.2.1 ALARM SETTING
While setting the alarm, if any detector is triggered (e.g. an open window) the system will react (based on
the system confi guration) in one of the following ways:
o The control panel will set itself. Triggered detectors will be blocked automatically.*)
o The system will optically indicate triggered detectors with a function button fl ashing red for 8
seconds and the control panel will set automatically once this period has expired (triggered
detectors will be blocked). *)
o Setting the section with triggered detectors is also possible by pressing the function button
repeatedly. The user must confi rm an intention to set the section with a triggered detector (e.g.
an opened window). Otherwise the system will not set.
o A triggered detector will prevent the section from being set. This status is optically indicated by
a function button fl ashing red. The detector preventing setting will be shown on the LCD display
menu.
*) WARNING: Options a) and b) are not supported by EN 50131, gr.2 (selected control panel system profi le).
If a detector with the “Instant zone alarm” reaction is triggered during an exit
delay or if a detector with the “Delay” reaction stays triggered after the exit delay has
expired, then the control panel will unset again. Unsuccessful setting is indicated by
a system indicator fl ashing yellow, reported to the ARC and indicated by an external
siren (applies to the security Grade 2).
If the control panel is confi gured to be set without authorization then it is not
necessary to authorize yourself. All you have to do is press a function button of a
particular section. It is also possible to confi gure the control panel to be set simply
by authorization.
WARNING: Setting without authorization automatically lowers the maximum security level to Grade 1. Con-
sider all possible risks related to using this function.
Consult the installation with a project consultant or a service technician in order to program the desired
behaviour of the alarm system.

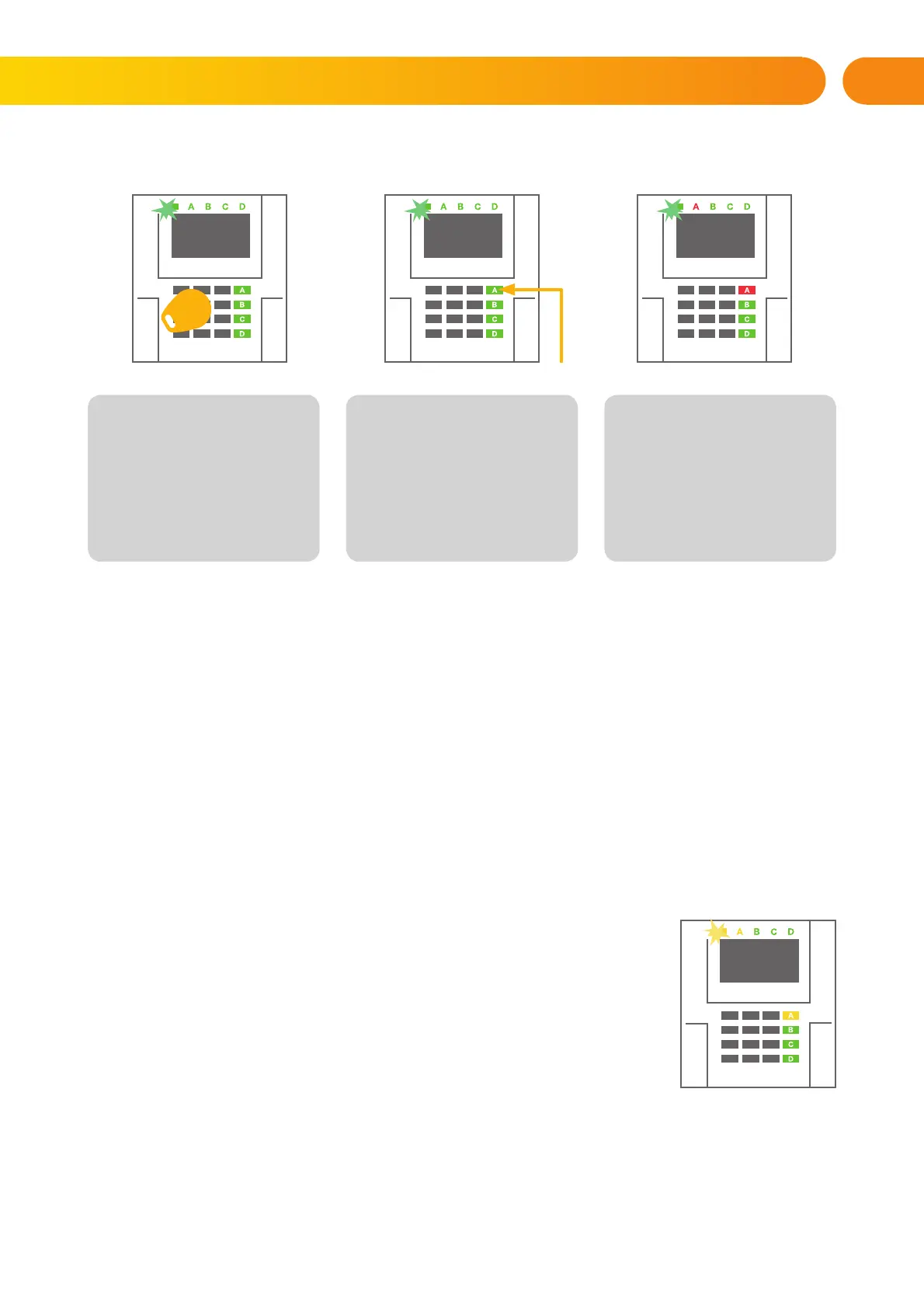

1. Authorize yourself using
the keypad. Function buttons
A, B, C, D will light up and the
system indicator starts fl ashing
green.
2. Press the function button to set
a particular section. It is
possible to set more sections
subsequently. The delay between
sections selection must not be
longer than 2 seconds.
3. The command is executed
and the keypad acoustically
indicates the exit delay. The
section is set now, only the
detectors with a “Delay” reaction
provide time to leave the guarded
area during the Exit delay. The
status indicator and
a function button of the set
section will turn red.
