Electrical Part of Engine
146
⑦

Inspection
of
Rotor
a. Check connectivity
between
adjacent
fillets
with ohmmeter.
■
If
open,
replace.
b. Check conductivity between each
copper
plate
and
shaft
of
commutator
with
ohmmeter.
■
If
open,
replace.
c.
Check
surface
of
commutator.
■
If i
t
is
rough,
use
#
500
sandpaper
to
lightly
sand with method shown in figure.
d.
Check
diameter
of
commutator.
■
Check
with
a
caliper;
if
it
is
less
than
the
specified value, replace.

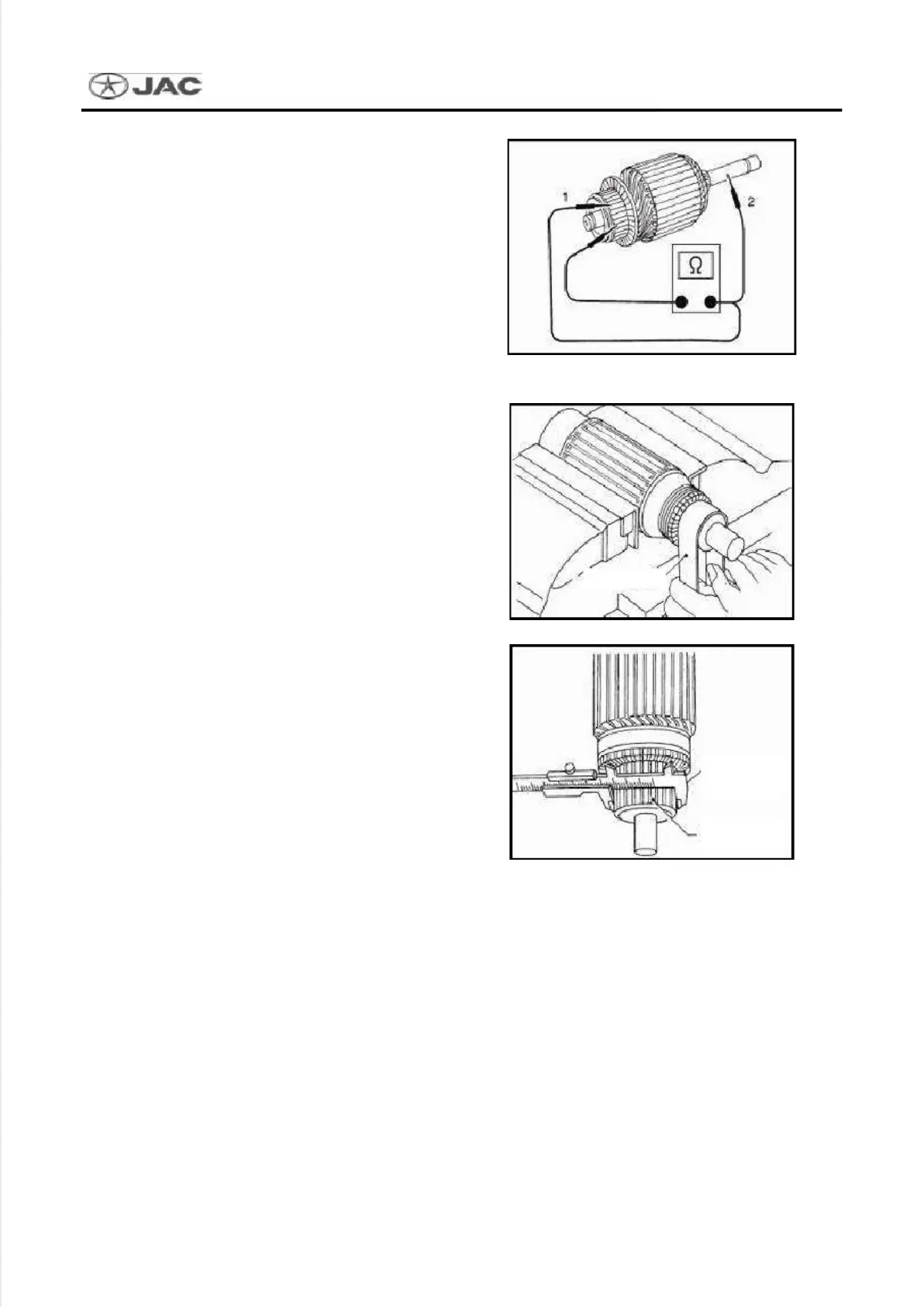

Fig. 3.2.012
Fig. 3.2.013
Sand paper
Vernier
caliper
Commutator
Fig. 3.2.014
