Maintenance Manual for J2 Sedan
Electronic Control System
190
ECU real-time monitoring of the sensor and circuit
sensor;
Sensor unit short-circuit to ground
Sensor unit short-circuit to system reference voltage signal wire.
Check sensor circuit for normal function and incorrect connection of grounding
Connect the sensor and harness to check whether the connections of power supply, grounding wire,
and signal wire are normal.
6.
1
）
Removal
connector of camshaft position sensor.
Unscrew fixing bolts, remove the sensor.
Phase sensor

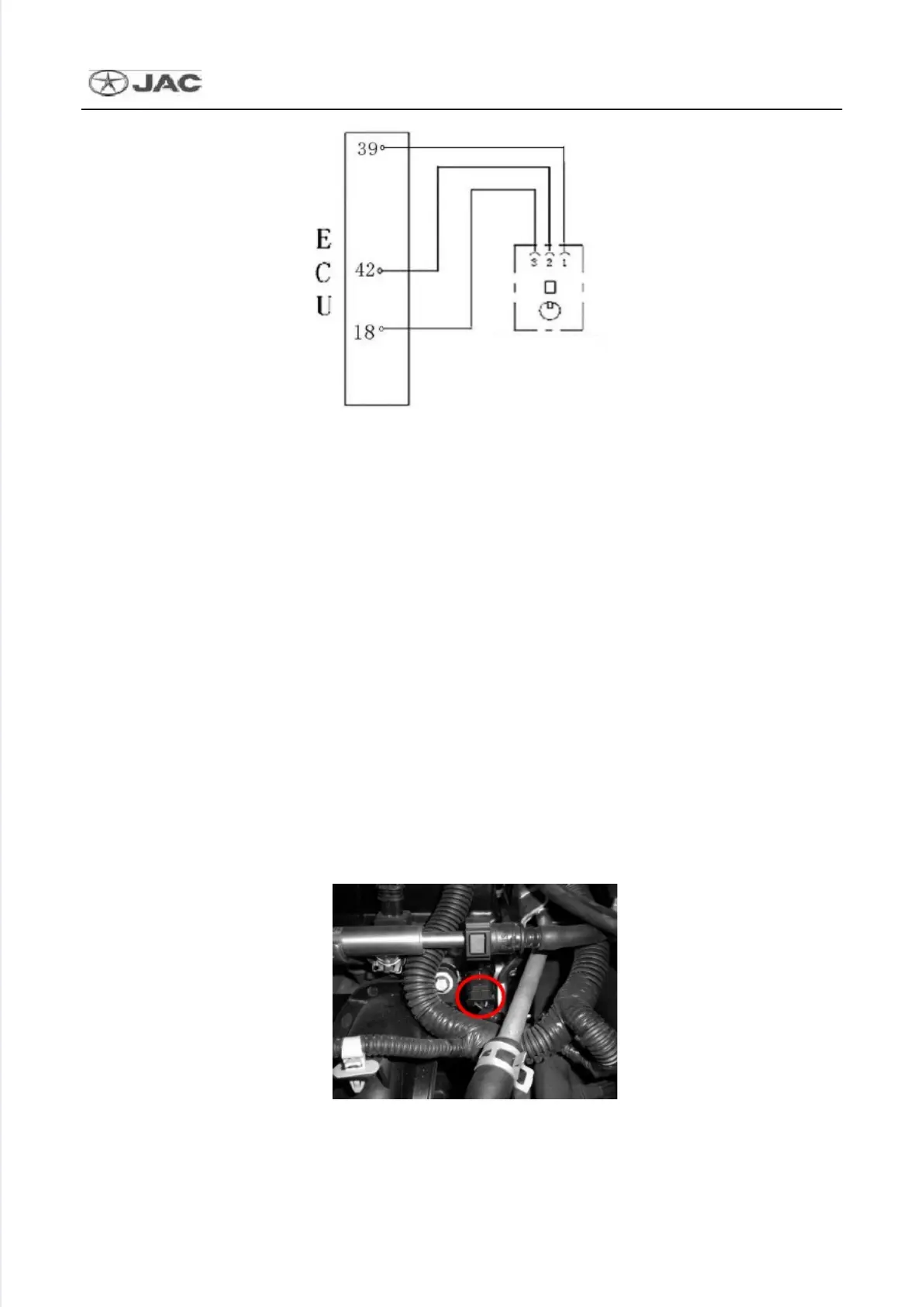

Fig. 4.3.013
