JAC J2 User Manual



Maintenance Manual for J2 Sedan
Service
25
6) Rear brake
shoe
Check the brake shoe thickness and its contact
state with the brake drum. If it fails to meet the
requirement, replace.
■
Standard
thickness
of
brake
shoe
(A):
5
mm
■
Allowable
limiting
thickness
(A):
1
mm
12.
Inspection o
f Steering
Gear and Pull-rod
1)
Steering
gear
■
Check
whether
the
steering
gear
housing
and
dust boot are free from looseness, damage
and grease leakage.
■
Check wh
ether its connection with the
steering column is loose.
2)
Steering
pull-rod
Check ball joint, dust boot and
other components for loosening, worn, damage and grease leakage
.
13.
Check
the
pipeline.
Stop engine, check fluid level in reservior.
Attention:
■ Be
sure
not to
fill
steering
fluid
excessively.
■
Check fo
r proper i
nstallation
position o
f pipeline
, and
any leakage, crack, damage, loose connection, worn
or ageing.
14.
Axle
and Suspension Components
Check for proper clearance between front/rear axles and suspension components and any crack,
damage, worn or other
damages.

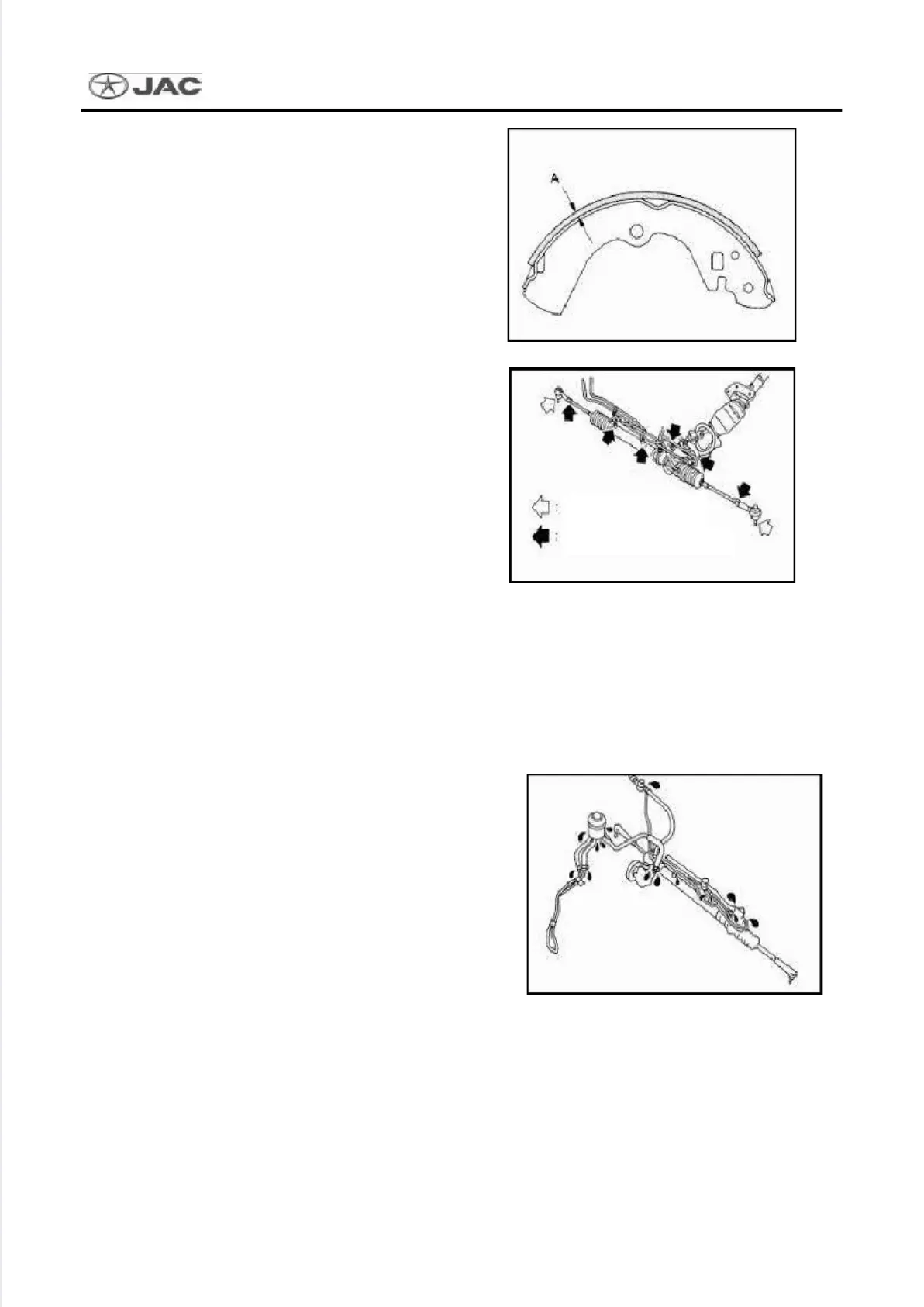

Fig. 2.2.020
Fig. 2.2.021
Fig. 2.2.022
Check the leakage of
lubricating grease
Check the tightening torque
