JAC J2 User Manual



Maintenance Manual for J2 Sedan
Mechanical Part of Engine
41
②

Lift the
engine and fix it in
place.
③

Use the
manual lifting stand
or equivalent
to firmly support the
bottom of
engine and
transmission
assembly; adjust the lifting tension.
Attention:
■
A
soft pad
may be
placed on
the supporting
surface so
as to
ensure a
totally
stable state.
④

Detach
left, right,
front and
rear suspens
ions of en
gine. See
“Engine Su
spension”.
⑤
 Carefully lower the engine and
transmissio
n assembly. Be
aware of following items during
operation:
■
Make
sure
that
the
work
will
not affect the vehicle.
■
Make
sure
that
all
connecting
parts
have
been
disconnected.
■
In order to
avoid falling due
to changes
of vehicle gravity,
use the
jack
to support
the rear
lifting
point.
6. Detachment

①

Remove
A/C compressor
assembly from the
engine and
transmissio
n
assembly.
②

Dismount
starter. See “Starter”.
③

Lift engine
and transmission assembly with specified lifter, and then detach them.
Attention:
■
Before
lifting, check
whether
each
connection
wiring
harness
has
been
disconnected.
7. Installation

Be aware of following items to install with steps contrary to dismantlement.
1)
Do not
damage the soft pad
of engine
suspension. Meantime, avoid spilling engine oil onto
the soft
pad.
2)
Make sure
that all
engine suspensions have
been properly fixed.
Then, tighten
the nuts
and bolts.
8. Check after
Installation

1)
Check
for
any
leakage.
The steps for checking oil and fluid leakage, lubricating oil leakage and the exhaust leakage are as
follows:

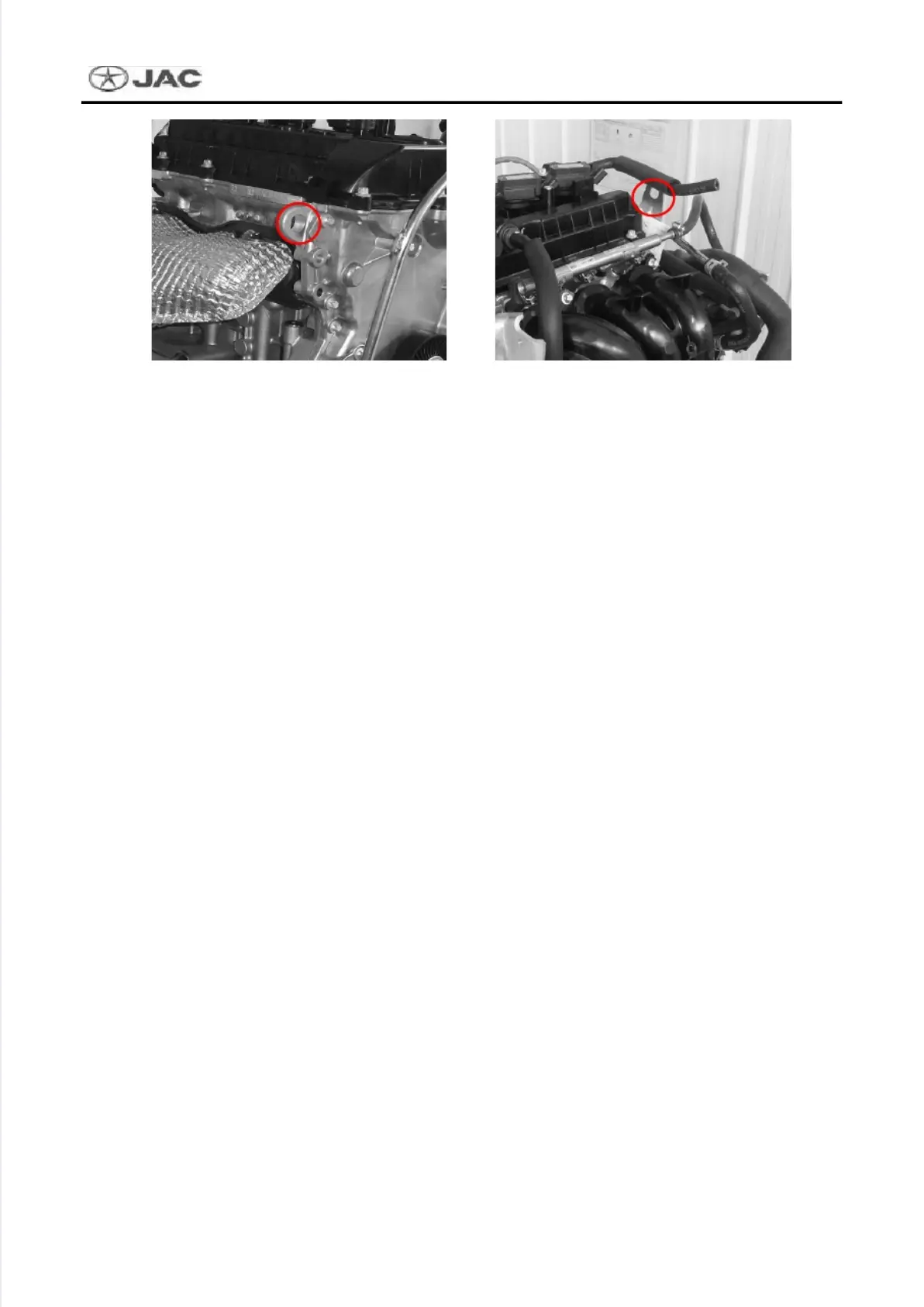

Fig.1.1.004 Fig.1.1.005
