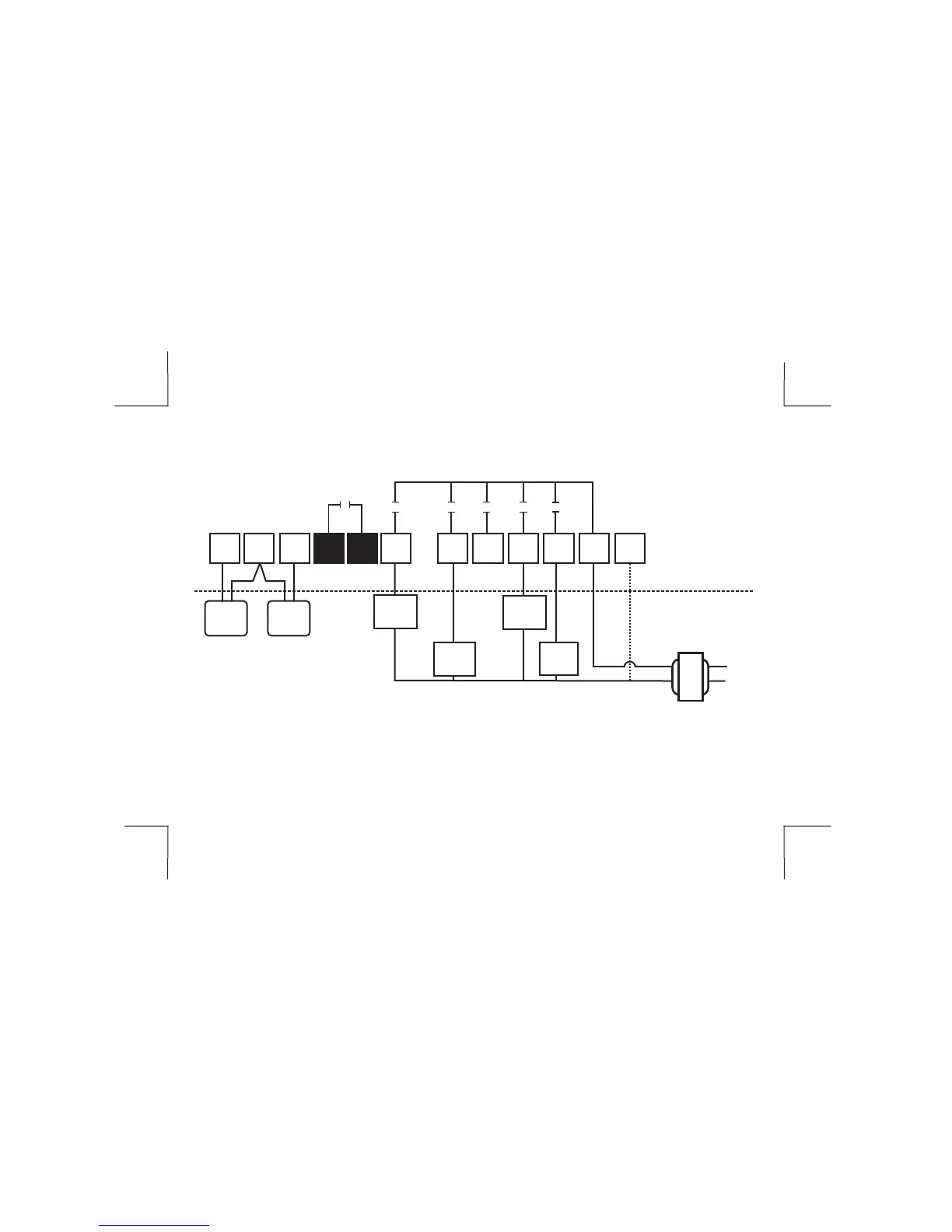

TYPICAL SYSTEM WIRING DIAGRAMS
2 HEAT/1 COOL (DUAL FUEL)
Switch Settings
ONSwitch 1 = Heat Pump
Switch 2 = = ‘O’ = ‘B’ Reversing ValveOFF/ON OFF ON
Switch 3 = 2 Heat / 1Cool dual fuelOFF
Switch 4 = Locks out heat pump when furnace is energizedON
19
SC
S1
Y1 Y2 W1 G R C
FAN
RELAY
LINE
24 V
W2
O/B
S2
OPTIONAL
REMOTE SENSOR
TERMINALS
THERMOSTAT
EQUIPMENT
OUTDOOR
SENSOR
INDOOR
SENSOR
COMP 1
RELAY
AUX
RELAY
REV
VALVE
AUX AUX
