WASH CYCLE TIMERS:
Det Timer:
R/A Timer: 00008s
San Time:
s
Millenium 3
Crouzet
0005.0
s
00008

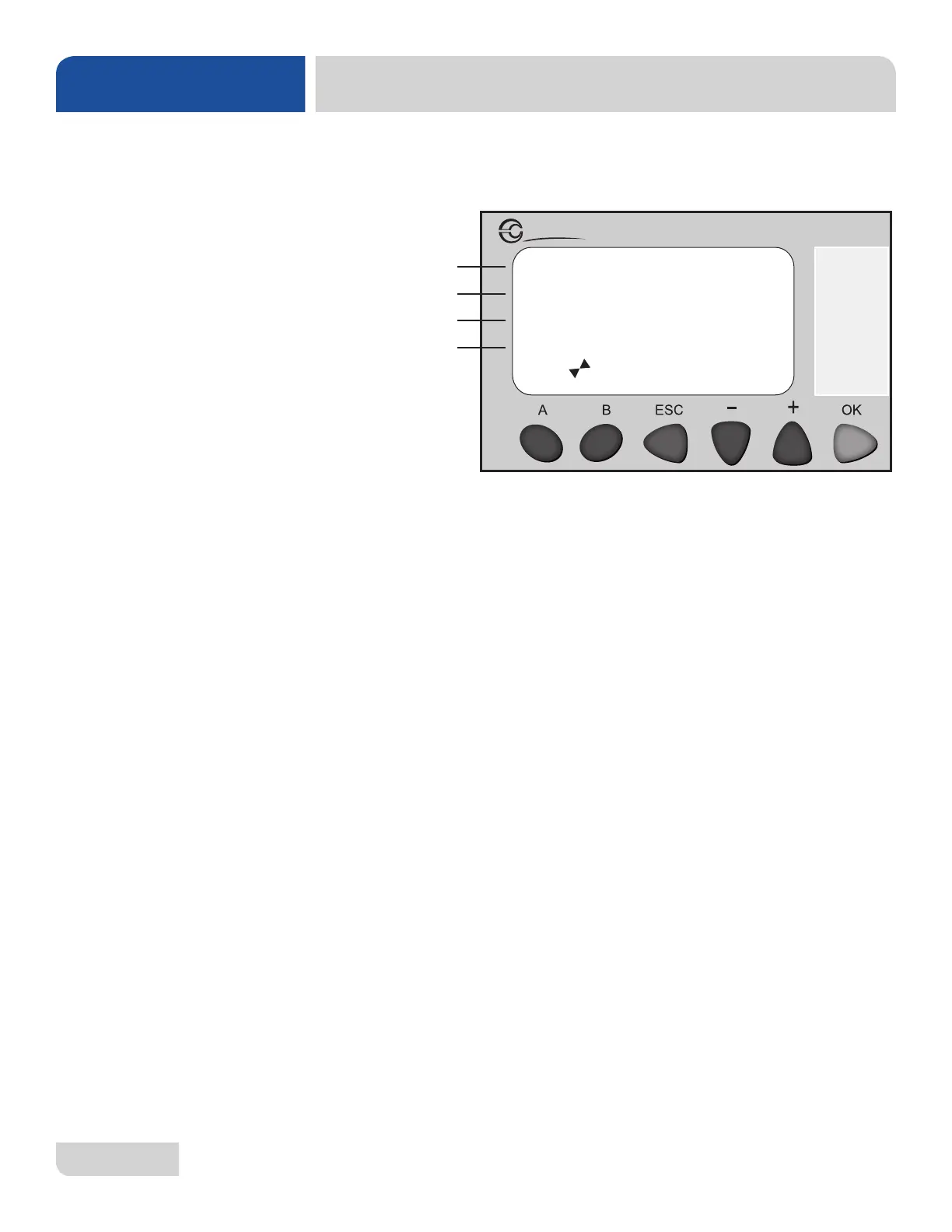

Screen 5 is the second "Wash Cycle Timers" screen and allows the user to edit the
detergent and rinse-aid timers for the initial wash cycle.
A
B
C
D
PLC TROUBLESHOOTING
MAINTENANCE
SCREEN 5:
WASH CYCLE
TIMERS 2
1. Line B shows the detergent time.
• Press + or - to highlight line B.
• Press OK to enter highlight mode.
• Press + or - to make any adjustments needed.
* Detergent Time: 5 to 10 seconds.
• Press OK to conrm adjustments.
2. Line C shows the rinse-aid time.
• Press + or - to highlight line C.
• Press OK to enter highlight mode.
• Press + or - to make any adjustments needed.
* Rinse Aid Time: 8 to 12 seconds.
• Press OK to conrm adjustments.
