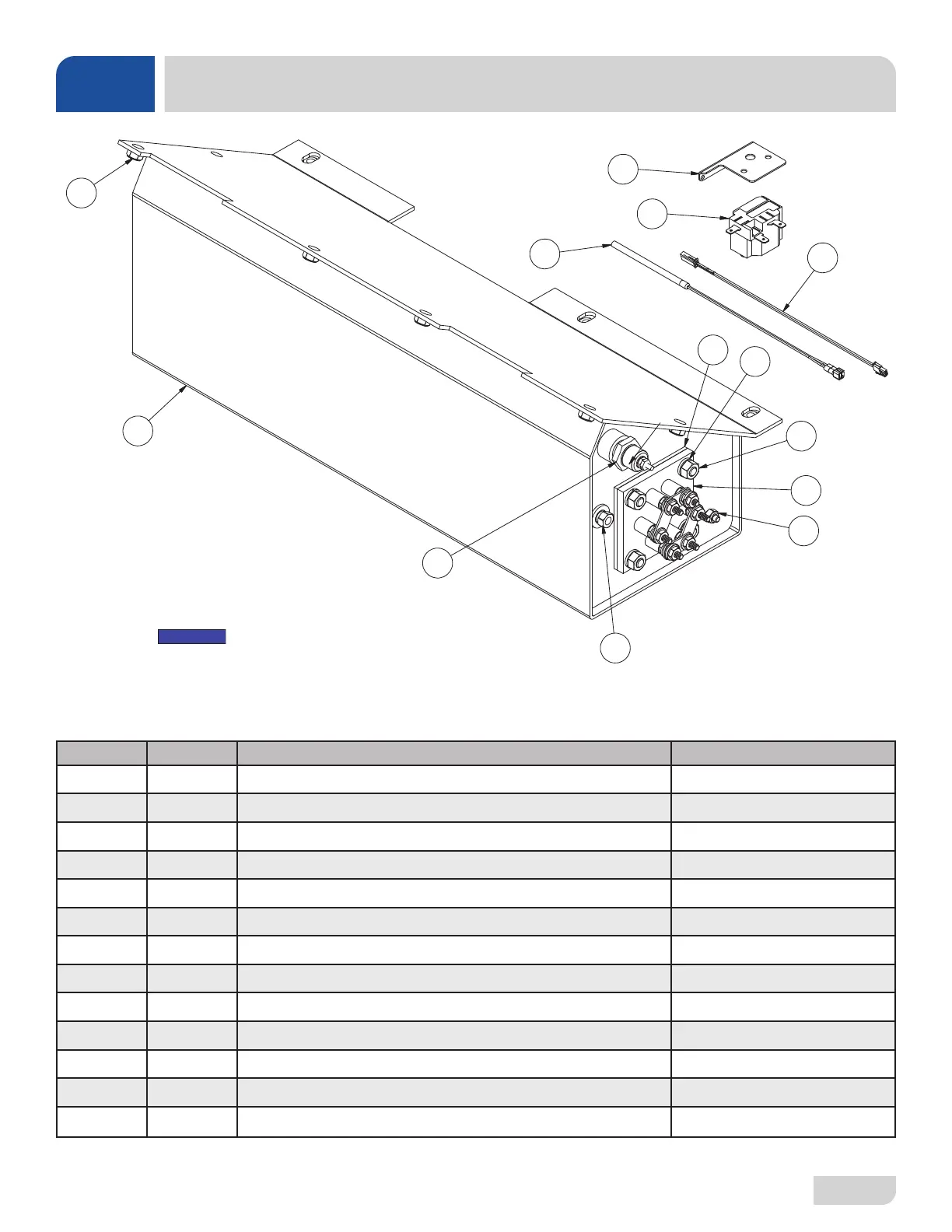

PARTS
HT RINSE TANK
Complete Rinse Tank Assembly
05700-005-08-50
(Items 1–9)
ITEM QTY DESCRIPTION PART NUMBER
1 1 Heater, 8.2 kW, 230 V 04540-111-43-21
2 1 Gasket, Heater 05330-011-47-79
3 4 Lock Washer, 5/16" Split 05311-275-01-00
4 4 Nut, 5/16-18 SS Hex 05310-275-01-00
5 1 Fitting, 1/4" Imperial Brass 05310-924-02-05
6 9 Locknut, 1/4-20 SS Hex with Nylon Insert 05310-374-01-00
7 1 Rinse Tank Weldment 05700-005-08-49
8 1 Probe, High Water 06680-200-02-68
9 1 Locknut, 10/24-20 SS Hex with Nylon Insert 05310-373-01-00
10 1 Thermostat Bracket 05700-004-36-37
11 1 High Limit Thermostat 05930-004-33-15
12 1 Probe, Thermister 4" 06685-004-34-58
13 1 Cable, Temperature Probe 05700-004-33-23
Machines with serial numbers before
23D415452 have a different rinse tank.
Click here to open earlier manual.
