Jackson TempStar Series Installation, Operation & Service Manual

INSTALLATION & OPERATION
12
VENTLESS HEAT RECOVERY MOUNTING INSTRUCTIONS
2
1

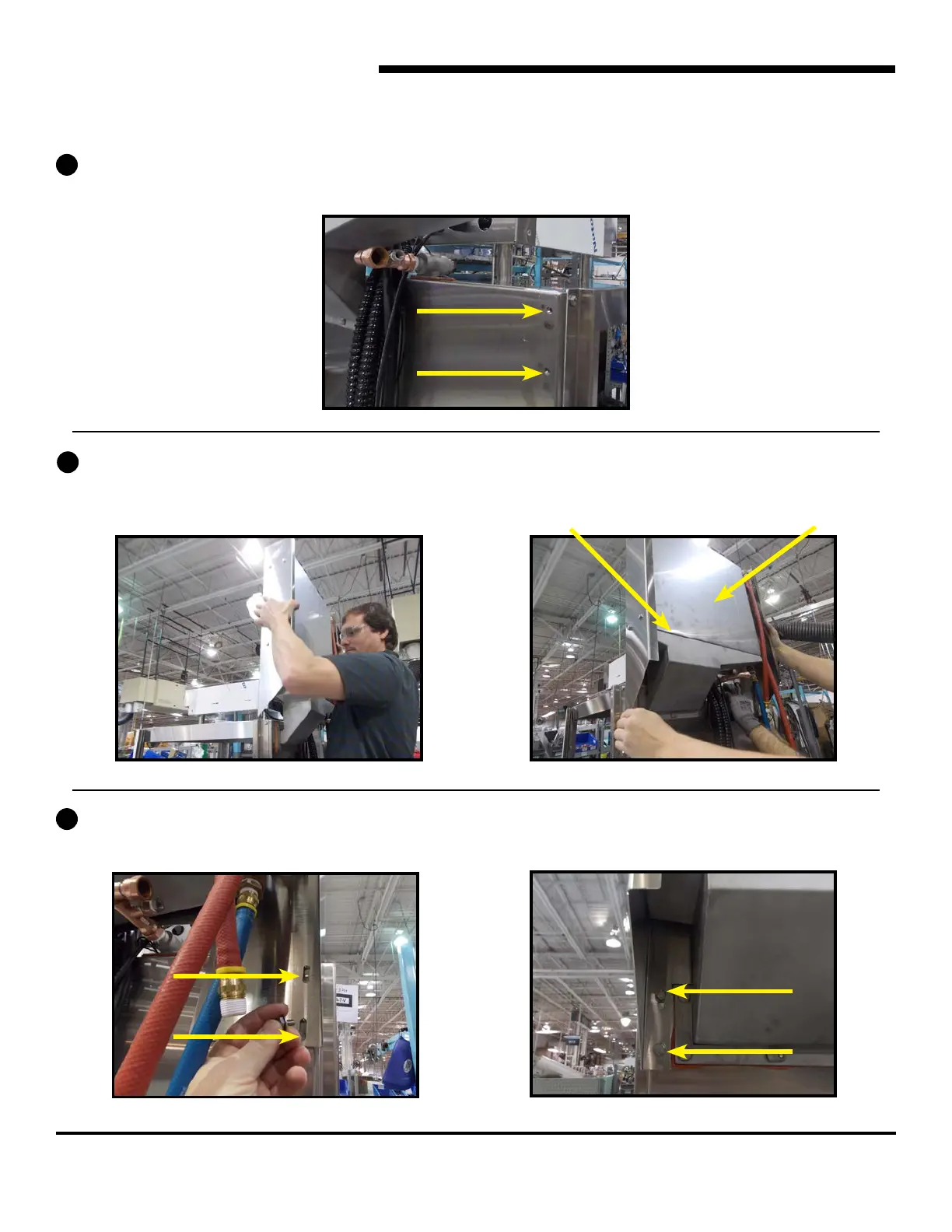

Lift the heat recovery unit up and over the lower air inlet, then align and slide unit onto the lower air
inlet. Upper unit should slide inside the lower air inlet at the seam.
Locate and remove the four 1/4-20 bolts using a 7/16 wrench. These are located in top left and right
corner of the unit.
3
Reinstall the four 1/4-20 bolts that were removed in step 1 with a 7/16 wrench. They insert into the
machine on the right and left corners.
Heat Recovery UnitLower Air Inlet Seam

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
