Jackson TempStar Series Installation, Operation & Service Manual

37
PARTS

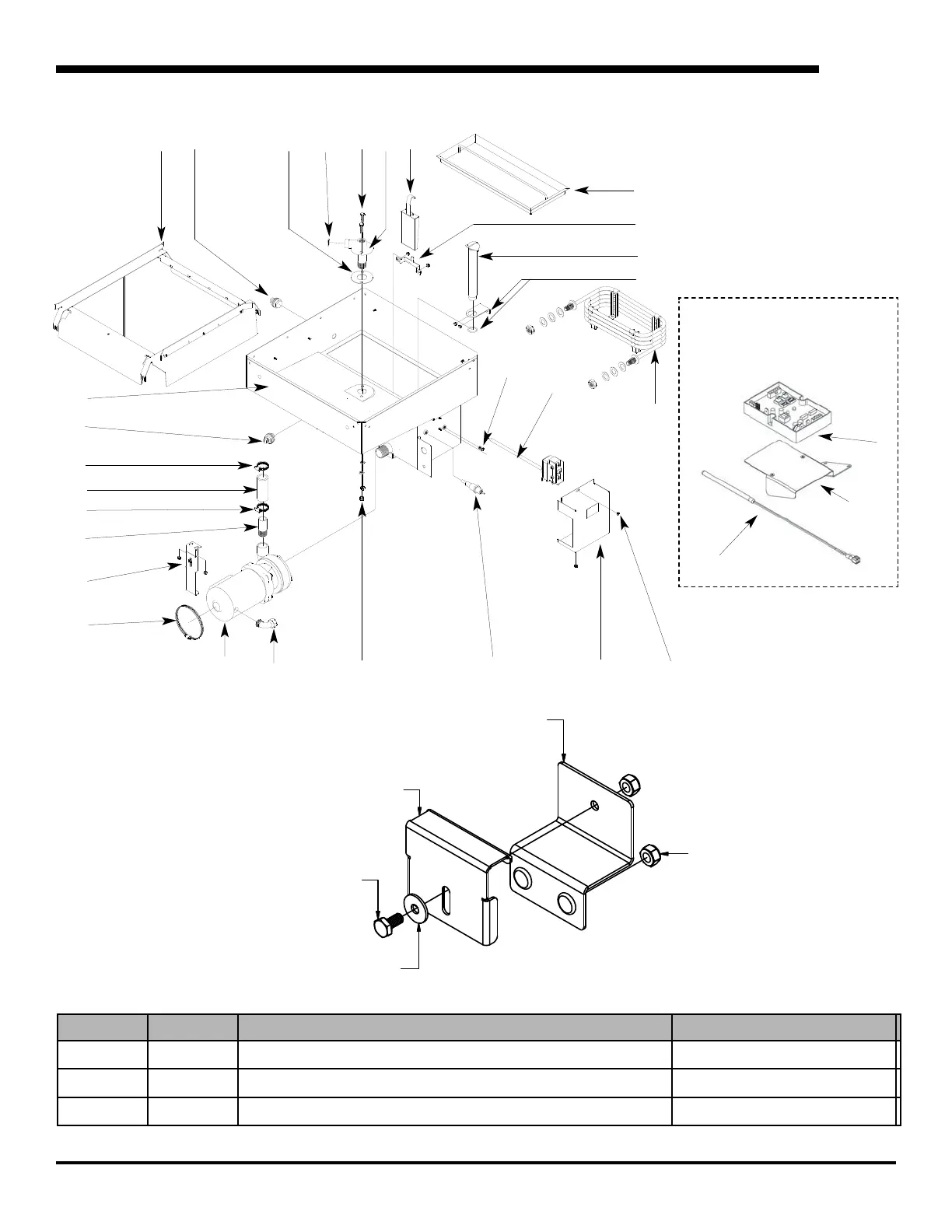

STEAM TUB ASSEMBLY
12
10, 11
2 3
4
7 8
13
14, 11, 15
5 9
3
16
6
22, 2321
24
25 27, 28
24
26
1
29
17
16
18
19
20
Pump Support Bracket Complete Assembly
05700-002-00-46
Nut, 1/4”-20 Serrated Nut
05310-011-66-49
Bracket, Motor Support Weldment
05700-002-68-31
Pump Support Adjustable Bracket
05700-002-20-41
* Represents an item not shown.
Solid State Thermostat
31
32
33
LOCKNUT, 1/4-20
05310-374-01-00
W-BRACKET, MOTOR MOUNT INNER
05700-004-13-09
F-BRACKET, MOTOR MOUNT OUTER
05700-004-13-08
BOLT, 1/4-20 X 1/2"
05305-274-02-00
WASHER, 1/4" I.D.X 3/4" O.D.
05311-011-76-30
ITEM QTY DESCRIPTION PART NUMBER
1 1 Tub Weldment 05700-002-09-26
2 1 Rack Assembly 05700-002-01-00
3 2 Bulk Head Plug 04730-609-05-00

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
